ABB KUC711AE 3BHB004661R0001 is dedicated to providing power support for gate units in ABB ACS 1000 medium voltage AC drive systems. It is located at the key node of power distribution in the drive system, and controls the switching action of power semiconductors through stable power output. It is one of the core components that maintains the efficient operation of the entire drive system.
KUC711AE 3BHB004661R0001
This power supply adopts advanced circuit design, which can accurately convert the input AC power into 24V DC DC power required by the gate unit, and has strong load capacity, with an output current of up to 100A. In terms of interaction with other devices, it can work together with various control modules and power modules in the ACS 1000 system to ensure the coordinated operation of the entire drive system. Meanwhile, its compact and modular design greatly facilitates installation and integration in industrial control cabinets and other environments, and provides many conveniences for subsequent maintenance work.
KUC711AE 3BHB004661R0001
Technical specifications:
Model Number KUC711AE 3BHB004661R0001
Brand ABB
Type Gate Unit Power Supply
Input Voltage Range 85 – 264V AC
Output Voltage 24V DC
Output Current Up to 100A
Protection Overvoltage, undervoltage, short circuit, and thermal overload protection
Status Indicators LED lights for status and fault conditions
Operating Temp Range -20°C to +60°C
Storage Temp Range -40°C to +70°C
Humidity 95% RH, non – condensing
Protection Class IP20
Dimensions 100 x 100 x 50 mm
Weight 1 kg
Contact Us
Phone:+86 16626708626
WeChat/WhatsApp:+86 16626708626
Email: 3772179818
KUC711AE 3BHB004661R0001
Main features and advantages:
Its outstanding stability is reflected in multiple protection mechanisms, including overvoltage, undervoltage, short circuit, and thermal overload protection functions, which can effectively respond to various abnormal situations, avoid damage to the door unit and the entire drive system due to power issues, ensure long-term stable operation of the equipment, and reduce unplanned downtime. This power supply has been designed with full consideration of the complexity of industrial environments, and can maintain stable performance output under harsh conditions such as high temperature and high humidity, meeting the strict requirements of different industries for equipment operating environments. The compact modular design not only facilitates installation, but also reduces maintenance costs and difficulty. When a fault occurs, engineers can quickly locate and replace the corresponding module, shorten maintenance time, and improve production efficiency.
KUC711AE 3BHB004661R0001
Application areas:
In the mining industry, the drive system of large mining equipment relies on its stable power supply to ensure the continuous operation of excavation, transportation and other equipment, and to ensure the smooth progress of ore mining work;
In the cement production process, from raw material grinding to finished product packaging, the driving system of related equipment cannot do without the stable support of this power supply to ensure the efficient and stable operation of the production line;
In the oil and gas industry, whether it is offshore drilling platforms or onshore oil and gas pipelines, the stable operation of their driving equipment is crucial for the entire energy production and transmission chain. ABB KUC711AE 3BHB004661R0001 can provide reliable power to equipment in complex and harsh environments, ensuring the continuity of energy production.

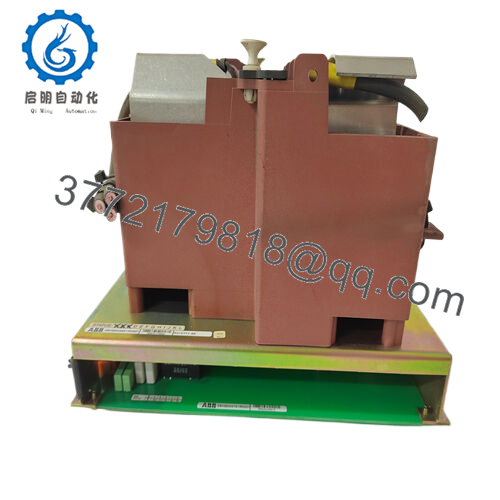

KUC711AE 3BHB004661R0001
Related products:
ABB KUC711AE 3BHB004661R0101: With higher efficiency or more precise voltage regulation capabilities, it is suitable for applications with higher requirements for power quality.
ABB KUC710AE 3BHB004660R0001: With relatively simple functions, it can be used for small industrial projects that are cost sensitive and do not require particularly high power performance.
ABB KUC712AE 3BHB004662R0001: Enhanced in output current or power capacity, suitable for driving industrial equipment with large loads and high power demands.
ABB KUC711BE 3BHB004661R0002: Improvements have been made in terms of protection level or anti-interference capability, making it more suitable for use in environments with severe electromagnetic interference or high requirements for equipment protection.
ABB KUC711AE 3BHB004661R0002: There may be adjustments in internal circuit design or component selection to achieve better stability or longer service life, suitable for critical production processes that require extremely high equipment stability and durability.
Installation and maintenance:
Before installing ABB KUC711AE 3BHB004661R0001, engineers need to carefully check whether the voltage range of the input power supply is between 85-264V AC to ensure the stability of the power supply and avoid damaging the equipment due to abnormal voltage. At the same time, it is necessary to confirm whether the installation space meets the size requirements of 100 x 100 x 50 mm for the equipment, and ensure that the installation location has good ventilation and heat dissipation conditions to prevent the equipment from overheating during operation. In addition, it is necessary to check whether the interface of the equipment matches the connecting cables to ensure the reliability of the electrical connection. In daily maintenance, regularly check the LED status indicator on the power supply to determine if the device is operating normally based on the color and flashing of the indicator. Check if the wiring terminals are loose to prevent poor contact from causing power transmission faults. Perform performance tests on the equipment at regular intervals to verify that the output voltage and current are within normal ranges, ensuring that the equipment is always in optimal operating condition. Once an anomaly is detected, the detailed user manual and fault diagnosis guide provided by ABB can be used to quickly locate and solve the problem.
