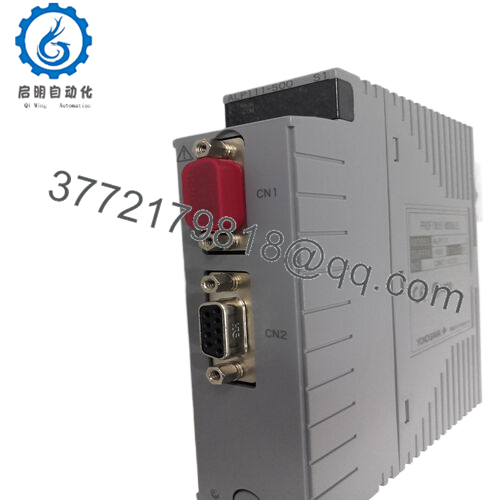

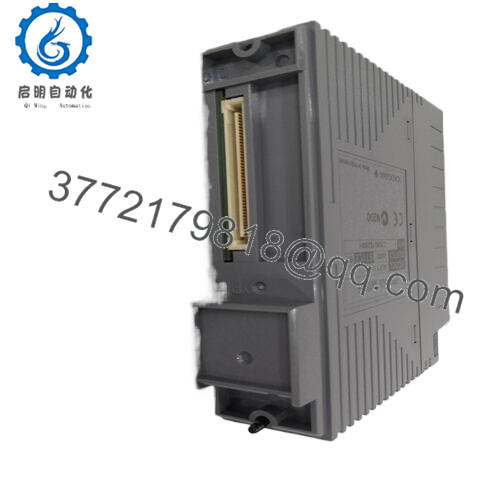

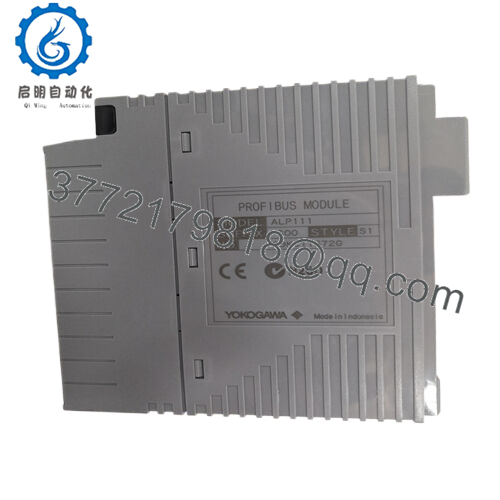

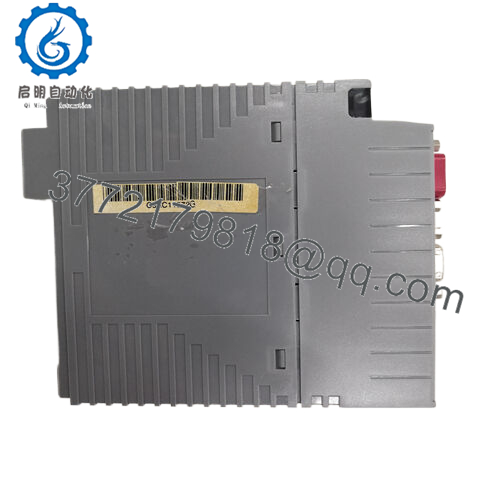

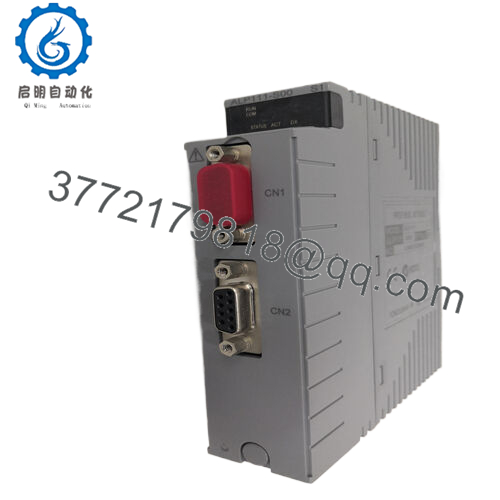

YOKOGAWA ALP111-S00 PROFIBUS – DP Communication Module
YOKOGAWA ALP111-S00 PROFIBUS – DP Communication Module
The YOKOGAWA ALP111-S00 functions as a PROFIBUS – DP master device, sitting at the heart of industrial communication networks. It serves as a bridge, enabling seamless communication and data exchange between PROFIBUS – DP slave devices and higher – level control systems. In a typical industrial setup, it interfaces with a wide range of field devices such as sensors, actuators, and intelligent transmitters that adhere to the PROFIBUS – DP protocol. By integrating these diverse devices into a unified communication framework, it streamlines data flow and control commands, ensuring that the entire automation system operates in harmony.
Model NumberALP111-S00
BrandYOKOGAWA
TypePROFIBUS – DP Communication Module
InterfacePROFIBUS – DP, compliant with EIA – RS – 485
Signal IsolationIsolatedTransmission Speed9600 bps to 12 Mbps
Transmission RouteShieldedMaximum Transmission Distance1.2 km per segment (at 9600 bps)
Number of Communication PortsOne main port (D – sub 9 – pin female for PROFIBUS – DP), one maintenance port (D – sub 9 – pin male, RS – 232C)
Maximum Current Consumption0.7 A
Weight0.3 kg
Mounting StyleRack – mountable
Operating Temperature0 °C to 50 °C
The YOKOGAWA ALP111-S00 functions as a PROFIBUS – DP master device, sitting at the heart of industrial communication networks. It serves as a bridge, enabling seamless communication and data exchange between PROFIBUS – DP slave devices and higher – level control systems. In a typical industrial setup, it interfaces with a wide range of field devices such as sensors, actuators, and intelligent transmitters that adhere to the PROFIBUS – DP protocol. By integrating these diverse devices into a unified communication framework, it streamlines data flow and control commands, ensuring that the entire automation system operates in harmony.
ALP111-S00
This module stores PROFIBUS – DP device data in its I/O image area. The Field Control Station (FCS) can then access this data asynchronously, referring to or setting the I/O images. This mechanism allows the FCS to utilize PROFIBUS – DP device data through the function block’s I/O terminals, treating it in the same manner as general analog and digital I/O signals. This seamless integration simplifies the programming and operation of the overall control system, as engineers can manage all types of I/O data within a single, familiar environment.
ALP111-S00
Technical specifications:
Model NumberALP111-S00
BrandYOKOGAWA
TypePROFIBUS – DP Communication Module
InterfacePROFIBUS – DP, compliant with EIA – RS – 485
Signal IsolationIsolatedTransmission Speed9600 bps to 12 Mbps
Transmission RouteShieldedMaximum Transmission Distance1.2 km per segment (at 9600 bps)
Number of Communication PortsOne main port (D – sub 9 – pin female for PROFIBUS – DP), one maintenance port (D – sub 9 – pin male, RS – 232C)
Maximum Current Consumption0.7 A
Weight0.3 kg
Mounting StyleRack – mountable
Operating Temperature0 °C to 50 °C
The YOKOGAWAALP111-S00offers several key advantages. Its high – precision signal measurement and conversion capabilities make it suitable for applications where accurate data acquisition and processing are crucial. In industries such as pharmaceuticals or aerospace manufacturing, where even minor deviations in sensor readings can have significant consequences, the ALP111-S00 ensures that data transmitted between devices is as precise as possible.
This module’s support for multiple input and output signal types, including analog and digital signals, provides versatility. It can be easily configured to meet the specific measurement and control needs of different industrial processes. For example, in a chemical plant, it can handle analog signals from temperature and pressure sensors while also managing digital signals from on – off valves and motor starters.
ALP111-S00
Application areas:
Yokogawa’s reputation for high reliability and durability is well – reflected in theALP111-S00. Designed for long – term stable operation, it can withstand the harsh conditions often found in industrial environments, such as electromagnetic interference, temperature variations, and mechanical vibrations. This reliability reduces the likelihood of unplanned downtime, which is especially important in continuous – process industries like oil refining or power generation, where any interruption in production can be costly.
The modular design of the ALP111-S00is another major benefit. It facilitates integration with other systems within the automation infrastructure. Whether it’s being incorporated into a new installation or added to an existing system for expansion or upgrade, the modular nature allows for easy configuration. If a plant decides to add more PROFIBUS – DP – compliant devices in the future, the ALP111-S00 can be readily adapted, with minimal disruption to the ongoing operation.
In industries like automotive manufacturing, where assembly lines are highly automated and rely on a complex network of sensors and actuators, the YOKOGAWA ALP111-S00 ensures that real – time data is transmitted accurately and efficiently. It enables seamless communication between robotic arms, conveyor belts, and quality – control sensors, allowing for precise control of the manufacturing process.
In water treatment plants, the module helps in connecting various field devices such as flow meters, pH sensors, and chlorine analyzers to the central control system. By providing a reliable communication link, it ensures that the treatment process can be adjusted in real – time based on the data received from these sensors, maintaining the quality of the treated water.
ALP111-S00
Related products:
YOKOGAWA ALP121 – A module that can be paired with the ALP111 – S00 in a dual – redundant configuration. When installed in an FCS, one ALP111 module (control side) exchanges data with slave devices, while the other (stand – by side) monitors the communication status of the control – side module. This setup significantly enhances the reliability of the PROFIBUS – DP network, as in the event of a failure in the control – side module, the stand – by module can take over immediately, minimizing downtime.
YOKOGAWA ALR111 – S00 and YOKOGAWA ALR111 – S01 – RS – 232 communication modules from Yokogawa. While they use a different communication protocol (RS – 232) compared to the PROFIBUS – DP of the ALP111 – S00, they can be used in applications where RS – 232 – based devices need to be integrated into the overall control system. For example, some legacy equipment or certain types of serial – connected sensors may require an RS – 232 interface, and these modules can facilitate the connection.
YOKOGAWA CENTUM CS 3000 R3 DCS System – This distributed control system can be integrated with the ALP111 – S00. The CENTUM CS 3000 R3 system, known for its high reliability and use of new information technologies including the Windows operating system, can leverage the ALP111 – S00 to communicate with PROFIBUS – DP devices. This integration allows for a comprehensive and efficient control solution in industrial plants, where the DCS can manage a wide range of processes using data from various PROFIBUS – DP – connected field devices.
YOKOGAWA AFG30??, AFF50??, AFV10?? FCS Models – These Field Control Station models can work in tandem with the ALP111 – S00. However, specific software version requirements need to be met. For example, when the FCS model is AFG30??, the software version should be R3.03 or higher; for AFF50??, it should be R3.04 or higher; and for AFV10??, it should be R3.05 or higher. When these conditions are met, the ALP111 – S00 can be installed in the ER – bus node unit (EB401 with firmware version R3 or higher) and communicate effectively with these FCS models, further expanding the capabilities of the overall control system.
Installation and maintenance:
Before installing the YOKOGAWA ALP111-S00, it is essential to ensure that the cables and terminators used comply with PROFIBUS – DP standards (PROFIBUS specifications IEC 61158 – 2 / EN 50170 volume 2). This compliance is crucial for maintaining proper signal integrity and reliable communication. Check that the communication speed requirements of the connected devices match the capabilities of the ALP111-S00. If the connected PROFIBUS – DP slave devices operate at a specific speed, ensure that the module is configured accordingly.
For ongoing maintenance, regularly check the LED indicators on the module. These indicators can provide valuable information about the module’s operational status, such as communication activity, power status, and potential faults. If there are any issues with data transmission, first verify the connection integrity of the cables. Loose or damaged cables can cause intermittent communication problems. Periodically update the module’s firmware as new versions are released by Yokogawa. Firmware updates often include bug fixes, performance improvements, and enhanced compatibility with new devices or software versions, ensuring that the ALP111 – S00 continues to operate at its best.
