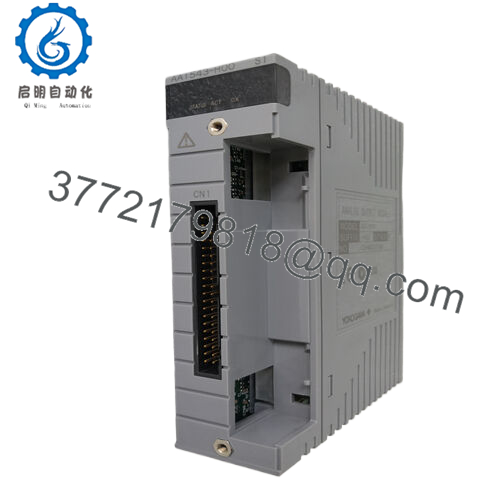

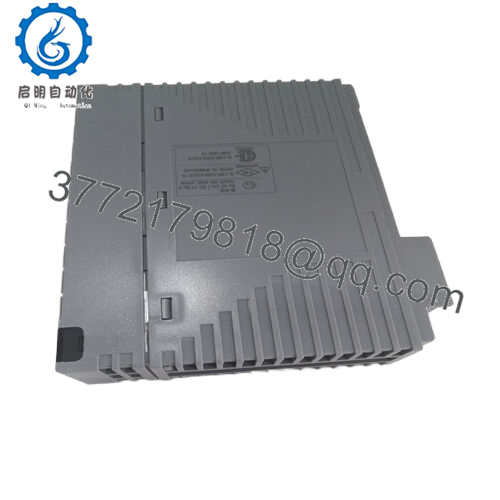

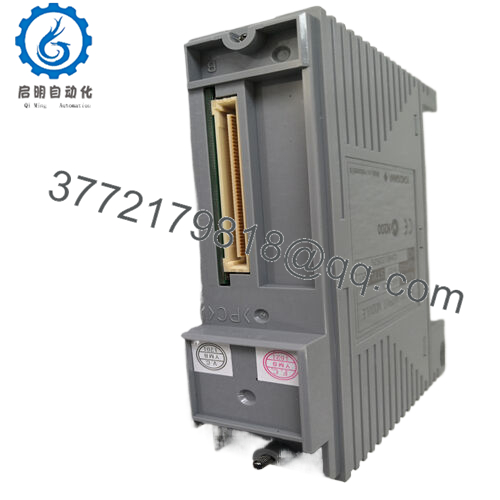

YOKOGAWA AAI543-H00 Redundant Analog Input Module

Description

YOKOGAWA AAI543-H00 functions as a redundant analog input module, serving as a critical link between field sensors and safety-critical control systems like Yokogawa’s ProSafe-RS. Unlike standard modules, it operates on a dual-channel architecture: two independent processing paths work in parallel, with continuous cross-checks to validate data integrity. If one channel detects an anomaly—whether a hardware fault or signal distortion—the module seamlessly switches to the redundant channel without interrupting data flow to the control system. This failover happens in milliseconds, faster than the typical response time of most industrial processes, ensuring control algorithms receive uninterrupted, accurate data. The module integrates with Yokogawa’s safety-certified backplane, supporting both HART communication for intelligent sensor diagnostics and MODBUS for integration with broader automation networks. Its design prioritizes transparency: engineers can monitor the health of both channels in real time via the control system interface, enabling proactive maintenance before issues escalate.

AAI543-H00

Technical specifications:
Model Number AAI543-H00
Brand Yokogawa
Type Redundant Analog Input Module
Input Voltage 24V DC ±10%
Operating Temp Range -20°C to +70°C
Mounting Style 3U Rack-mounted (safety backplane compatible)
Dimensions 128mm (W) x 189mm (H) x 215mm (D)
Weight 0.65kg
Interface/Bus Yokogawa Safety Backplane
Compliance IEC 61508 (SIL 3), CE, RoHS, UL 1971
Supported Protocols HART 7, MODBUS RTU, FDT/DTM
Typical Power Draw 8W (per channel, max)

contact us:
Phone:+86 16626708626
WeChat/WhatsApp:+86 16626708626
Email: 3772179818@qq.com

AAI543-H00

Main features and advantages:

The value of YOKOGAWA AAI543-H00 lies in its ability to transform “what-if” risks into “no-fail” certainty. Its redundant architecture eliminates single points of failure, reducing unplanned downtime by up to 90% compared to non-redundant modules in safety-critical applications. The module’s 16-bit resolution ensures measurement accuracy within ±0.1% of full scale, even in noisy electrical environments—critical for maintaining tight control in processes like reactor temperature regulation or pipeline pressure monitoring. Its conformal-coated circuit boards and ruggedized connectors withstand exposure to dust, moisture, and vibration, extending service life in harsh settings like offshore platforms or chemical refineries. For engineers, this translates to reduced maintenance overhead: predictive diagnostics alert teams to potential channel degradation before it affects performance, while hot-swappable components allow repairs without powering down the system—a game-changer for 24/7 operations.

AAI543-H00

Application areas:

YOKOGAWA AAI543-H00  excels in industries where safety and uptime are mission-critical. In oil and gas refineries, it monitors catalytic cracker temperatures and hydrogen pressure, ensuring compliance with SIL 3 safety standards and preventing catastrophic releases. In nuclear power plants, it processes data from coolant flow sensors and radiation detectors, supporting safe operation and rapid response to anomalies. Water treatment facilities rely on it to track chemical dosing levels and pH values, safeguarding public health by preventing process deviations. In each case, the module’s redundant design ensures that even if one channel fails, critical measurements continue flowing to the control system—maintaining regulatory compliance, protecting assets, and ensuring personnel safety.
