TU838 Module Termination Unit (MTU)

Description

TU838

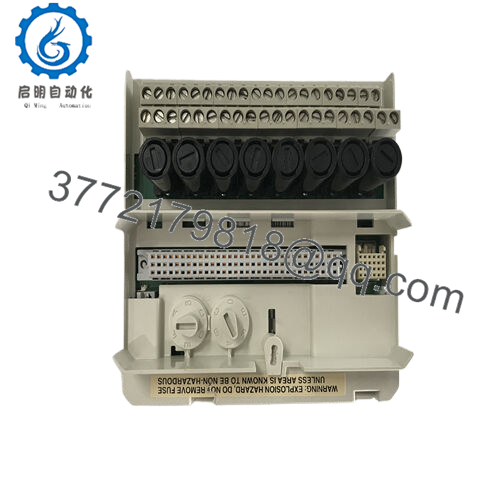

The ABB TU838 is a Module Termination Unit (MTU) within ABB’s S800 I/O system. Its primary function is to distribute the module bus to I/O modules and subsequent MTUs. It supports up to 16 I/O channels, each capable of handling a maximum rated voltage of 50V and a maximum rated current of 3A. This makes it suitable for applications that require high current handling capabilities. The unit generates the correct address for the I/O module by shifting outgoing position signals, ensuring proper identification and communication within the system.

TU838

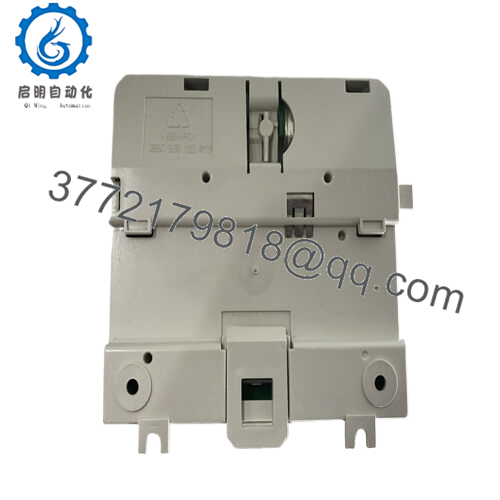

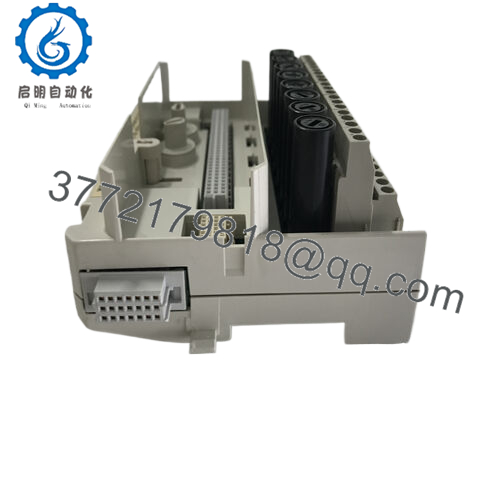

In terms of its place in the automation stack, the ABB TU838 sits between the field devices and the I/O modules, acting as a signal conditioning and distribution point. It mechanically keys to prevent incorrect module insertion, providing an added layer of protection against installation errors. Mounted on a DIN rail with a latching device for grounding, it offers a secure and stable installation option. The TU838 is designed to work in harmony with other components of the S800 I/O system, whether it’s in a control room environment or a harsh industrial setting, ensuring smooth data flow and system operation.

TU838

Main features and advantages:

Opting for the ABB TU838 brings several real-world benefits. Engineered for durability, it can endure the harsh environmental conditions often found in industrial settings, such as temperature variations and electrical interference. This ensures long-term performance, reducing the need for frequent replacements and minimizing downtime. Its high current handling capacity means it can support a wide range of field devices without compromising signal quality, enhancing the overall reliability of the automation system.

Maintenance is also made more efficient with the ABB TU838. The mechanical keying feature reduces the likelihood of incorrect installations, which could otherwise lead to system malfunctions. Additionally, its straightforward design and compatibility with the S800 I/O system simplify troubleshooting. Technicians can quickly identify and address issues, reducing the time spent on maintenance and getting the system back up and running faster. The unit’s ability to handle multiple channels efficiently also reduces the complexity of wiring, further streamlining maintenance efforts.

TU838

Application areas:

The ABB TU838 finds applications in various industries. In power plants, it can be used to connect sensors and actuators related to electrical equipment, such as circuit breakers and transformers. Given the critical nature of power generation, where continuous uptime is essential, the TU838’s reliability and high current handling capabilities ensure that the control system receives accurate and timely data, contributing to the stable operation of the power grid.

Manufacturing plants also benefit from the ABB TU838. In assembly lines with numerous sensors monitoring the position and status of components, the TU838 can efficiently handle the high volume of signals. Its ability to support multiple channels allows for a more compact and organized wiring setup, optimizing the use of space in the factory environment. Chemical processing facilities, where safety and precise control are paramount, can rely on the TU838 to connect sensors that monitor process variables like pressure and temperature, ensuring the integrity of the chemical processes.

Related products:

ABB TU840 – Offers a higher channel count, suitable for larger-scale applications that require more extensive I/O connections.

ABB S800 I/O AI810 – A complementary analog input module that can be used in conjunction with the TU838 for systems that need to handle both digital and analog signals.

ABB S800 I/O DO810 – A digital output module that pairs well with the TU838 for controlling actuators and relays in the automation system.

ABB S800 I/O TA840 – A termination unit with different electrical characteristics, providing an alternative for applications with specific voltage or current requirements.

ABB S800 I/O Power Supply Modules – Essential for powering the S800 I/O system components, including the TU838, ensuring stable operation.

ABB AC500 PLCs – Can be integrated with the S800 I/O system and the TU838 for comprehensive control solutions in industrial automation.

ABB Fieldbus Modules – Enable communication between the TU838 and different fieldbus networks, expanding the system’s connectivity options.

Installation and maintenance:

Before installing the ABB TU838, it’s important to verify the compatibility of the unit with the existing S800 I/O system components. Check the firmware versions of the related modules and the control system to ensure seamless communication. Ensure that the DIN rail where the TU838 will be mounted is in good condition and has sufficient space for proper installation. Inspect the wiring connections and make sure they meet the specified wire size and torque requirements.

For ongoing maintenance, regularly check the status of the connections to ensure there are no loose wires, as this could lead to signal loss or intermittent failures. Monitor the operating temperature of the unit, especially in environments with high heat, to ensure it stays within the specified range. Periodically test the functionality of the TU838 by simulating input and output signals to verify that it is accurately processing and distributing data. Keep the surrounding area clean to prevent dust and debris from affecting the unit’s performance.
