SPHSS03 Safety System Interface Module

Description

SPHSS03

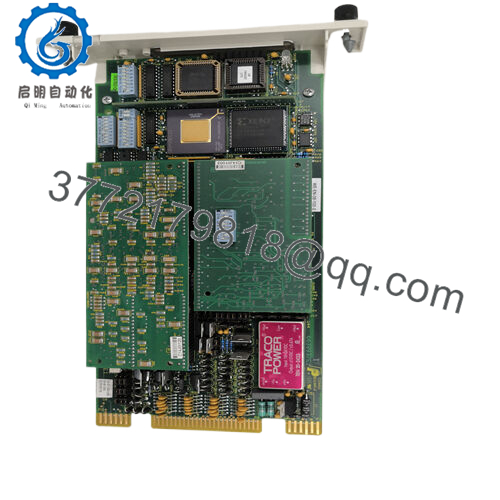

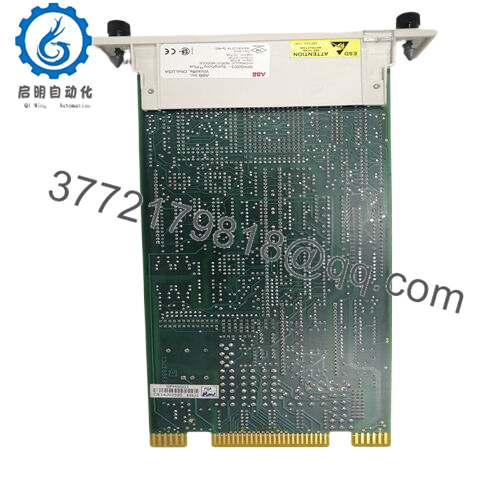

The ABB SPHSS03 is a safety-certified interface module designed specifically for integration between safety instrumented systems (SIS) and distributed control systems (DCS) in process industries. As a key component of ABB’s safety automation portfolio, it provides a secure communication bridge that maintains the required separation between safety and non-safety systems while enabling essential data exchange.

SPHSS03

In safety system architecture, the ABB SPHSS03 functions as a dedicated gateway with built-in fault tolerance, ensuring that safety functions remain unaffected by control system operations. What distinguishes the ABB SPHSS03 is its SIL 3 certification, making it suitable for the most critical safety applications where failure could result in catastrophic consequences, providing both engineers and plant operators with confidence in the safety layer’s integrity.

Main features and advantages:

The ABB SPHSS03 delivers robust safety performance with 3 independent safety channels capable of handling both digital input signals from safety sensors and providing output signals to safety actuators. Each channel incorporates redundant processing paths and self-monitoring capabilities to achieve high diagnostic coverage (>99%), a requirement for SIL 3 certification. Its hardware design features enhanced physical separation between safety and non-safety circuits, with reinforced isolation barriers providing 5kV galvanic isolation to prevent common-mode failures from propagating between systems.

A key advantage of the ABB SPHSS03 is its deterministic response time of less than 10ms for safety-related signals, ensuring rapid initiation of protective actions when hazardous conditions are detected. The module supports both hardwired safety signals and safety communication protocols, enabling flexible integration with various safety devices while maintaining compliance with IEC 61508 standards. Unlike standard interface modules, the ABB SPHSS03 includes built-in voting logic and diagnostic monitoring that continuously verifies channel integrity, with detailed fault information available to maintenance personnel without compromising safety functionality. Its rugged construction ensures reliable operation in harsh industrial environments, with immunity to electromagnetic interference commonly found in process facilities.

Application areas:

In industrial environments where safety is paramount — including oil and gas processing facilities, chemical plants, and power generation stations — the need for reliable safety system integration with process control architectures is critical. These high-risk facilities require specialized modules that can monitor safety-critical parameters, initiate protective actions, and maintain separation between safety and control systems while enabling necessary communication. This is where the ABB SPHSS03 excels, serving as a vital safety interface in ABB’s Safety Integrity Level (SIL) rated systems. Used in industrial automation applications requiring functional safety compliance, this module addresses critical challenges like safe signal transmission, diagnostic coverage, and deterministic response times. Engineers rely on the ABB SPHSS03 to connect emergency shutdown systems (ESD), fire and gas detection systems, and safety interlocks with main process control systems, ensuring rapid response to hazardous conditions while maintaining system availability.

Related products:

SPFEC12-1 – Configurable I/O module that connects to the ABB SPHSS03 for non-safety process data exchange.

SPHSS06 – Higher-channel version of the ABB SPHSS03 with 6 safety channels for larger safety loops.

SPDCS02 – Safety communication module enabling Profibus PA integration with the ABB SPHSS03.

SPDAL16 – Alarm module that receives safety status signals from the ABB SPHSS03 for local indication.

SPDPW24S – Safety-certified power supply module providing redundant power to the ABB SPHSS03.

SPHDI16 – Safety digital input module that connects to field sensors and communicates with the ABB SPHSS03.

SPHDO08 – Safety digital output module controlled by the ABB SPHSS03 for safety actuator operation.

SPDMS01 – Safety management module that monitors and logs diagnostic data from the ABB SPHSS03.

Installation and maintenance:

Before installing the ABB SPHSS03, verify that the mounting location maintains the required physical separation from non-safety components as specified in IEC 61508. Ensure the installation environment meets the module’s environmental rating, particularly regarding vibration and humidity, as safety components have stricter requirements than standard control modules. The ABB SPHSS03 must be connected to a safety-certified power supply with appropriate overcurrent protection, and all wiring must use color-coded, shielded cables with proper grounding of shields at both ends. Document all wiring connections according to safety standards, as this documentation will be required for safety system certification.

For maintenance of the ABB SPHSS03, perform monthly diagnostic checks using the safety system software to verify channel integrity and communication status — never bypass safety functions during maintenance. Conduct quarterly visual inspections focusing on connection integrity, ensuring all terminals remain tight and free from corrosion. Calibration verification is not required for the ABB SPHSS03 itself, but associated field devices should be calibrated according to their schedules. When performing firmware updates, use the dedicated safety update procedure to prevent unsafe states during the process, and always verify the module’s safety certification remains intact after any maintenance activity.
