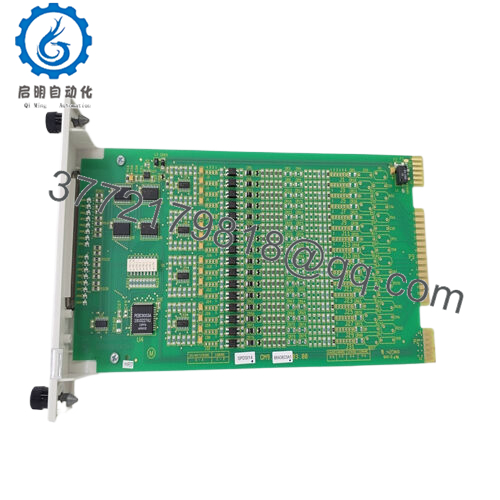

SPDSI14 Analog Input Module

Description

SPDSI14

The ABB SPDSI14 is a high-performance analog input module designed for integration into ABB’s distributed control system architectures, specifically engineered to handle multiple 4-20mA sensor inputs in industrial environments. As a key component of ABB’s process automation portfolio, it serves as the critical interface between field devices and the higher-level control system, conditioning and converting analog signals for processing by the system’s controller.

SPDSI14

In DCS architecture, the ABB SPDSI14 operates as a distributed I/O node, reducing wiring complexity while maintaining signal integrity over longer distances. What makes this module particularly valuable is its combination of high channel density with advanced signal processing capabilities, allowing system integrators to monitor multiple process variables without sacrificing accuracy or response time — a balance that’s essential in complex industrial processes where every measurement matters.

Main features and advantages:

The ABB SPDSI14 delivers exceptional signal processing performance with 14 independent analog input channels, each capable of handling 4-20mA signals with 16-bit resolution for precise measurement accuracy. Its hardware design incorporates advanced isolation technology, providing 2.5kV galvanic isolation between channels and from the backplane to minimize interference from electrical noise common in industrial environments. The module’s compact form factor allows for high-density installation in control cabinets, maximizing the number of monitored points within limited space.

A standout feature of the ABB SPDSI14 is its built-in diagnostic capabilities, including open circuit detection and overrange indication for each channel, enabling quick identification of sensor or wiring issues without manual troubleshooting. The module supports hot swapping, allowing for replacement without powering down the entire system — a critical advantage in continuous process industries where unplanned downtime must be avoided. Its robust construction ensures reliable operation across extended temperature ranges, maintaining measurement accuracy even in fluctuating environmental conditions typical of industrial facilities.

Application areas:

In large-scale industrial facilities such as power generation plants, chemical processing units, and oil refineries, distributed control systems (DCS) require reliable signal processing to maintain operational efficiency and safety. These environments demand modules that can accurately convert and transmit critical process data while withstanding electrical interference, temperature variations, and vibration. This is where the ABB SPDSI14 excels, serving as a vital signal processing component in ABB’s Advant OCS and Symphony Plus systems. Used in industrial automation scenarios requiring precise analog signal handling, this module addresses essential needs like continuous process variable monitoring, signal conditioning, and noise filtering. Engineers rely on the ABB SPDSI14 to interface with pressure transmitters, temperature sensors, and flow meters, converting their raw signals into usable data for the central control system. Its robust design makes it particularly valuable in harsh industrial environments where signal integrity is critical for maintaining process stability and preventing costly downtime.

Related products:

SPDSO14 – Analog output module from the same family, providing 14 channels of 4-20mA output for control signals.

SPDDI16 – Digital input module compatible with the ABB SPDSI14, handling 16 discrete input signals.

SPDDO16 – Digital output module that pairs with the ABB SPDSI14 for controlling 16 discrete devices like valves or relays.

SPDSI08 – Compact version of the ABB SPDSI14 with 8 analog input channels for smaller applications.

SPDCO04 – Control output module that works alongside the ABB SPDSI14 for proportional control applications.

SPDAI16 – Higher-density analog input module offering 16 channels, compatible with the same backplane as the ABB SPDSI14.

SPDPW24 – Power supply module providing stable 24V DC to the ABB SPDSI14 and other rack-mounted modules.

SPDLC01 – Local communication module enabling data exchange between the ABB SPDSI14 and nearby auxiliary systems.

Installation and maintenance:

Before installing the ABB SPDSI14, verify that the target rack has compatible backplane firmware supporting the module’s communication protocol. Ensure the mounting rack is properly grounded with a dedicated earth connection to maximize the effectiveness of the module’s isolation features. Check that the control cabinet environment meets temperature and humidity specifications, as excessive moisture can compromise signal integrity over time. Allow at least 30mm of clearance on both sides of the module for adequate airflow, particularly when installing multiple modules in a single rack.

For maintenance, schedule monthly diagnostic checks using the system’s configuration software to verify channel calibration and isolation integrity. Perform quarterly visual inspections to check for dust accumulation on connectors, which can cause signal degradation. When replacing sensors connected to the ABB SPDSI14, power down individual channels through the control system interface to prevent transient voltage spikes that could affect other channels. Calibration verification should be performed annually using certified test equipment to maintain measurement accuracy, with adjustments made through the system’s calibration utility if necessary.
