Schneider 140ACO13000 modular analog output module
Schneider 140ACO13000 modular analog output module
The Schneider 140ACO13000 is a modular analog output module, designed to be a key component within the Modicon Quantum automation platform. As an analog output module, its primary function is to convert digital signals from a programmable logic controller (PLC) or other control devices into analog signals. These analog signals are then used to control a wide range of industrial devices such as valves, motors, and actuators.
Model 140ACO13000
Brand Schneider Electric
Type Modular Analog Output Module
Automation Platform Modicon Quantum
Analog Output Channels 8
Output Ranges 0 – 20 mA (0 – 20,000 counts), 0 – 25 mA (0 – 25,000 counts), 4 – 20 mA (0 – 16,000 counts default, 0 – 4095 counts)
Absolute Accuracy Error ±0.2% of full scale at 25 °C
Linearity Varies by range (e.g., ±12 µA for 4 – 20 mA 0 – 4095 counts)
Accuracy Drift according to Temperature 0.004% of full scale/°C typical, 0.007% of full scale/°C maximum
Isolation between Channels and Bus 1780 V for 1 minute AC
Update Time 5 ms
Setting Time 3.2 ms to ±0.1% of final value, 1.6 ms to 5% of final value
Fault Type Open circuit for 4 – 20 mA
Bus Current Requirement 550 mA
Maximum Power Dissipation 5 W
External Power Requirement 6 – 30 V DC
Marking CE
Local Signalling 1 green LED for bus communication, 1 red LED for external fault, 8 green LEDs for channel on, 8 red LEDs for channel fault
Module Format Standard
Net Weight 0.3 kg
Operating Temperature 0 – 60 °C
Storage Temperature – 40 – 85 °C
Relative Humidity 95% without condensation
Operating Altitude ≤5000 m
The Schneider 140ACO13000 is a modular analog output module, designed to be a key component within the Modicon Quantum automation platform. As an analog output module, its primary function is to convert digital signals from a programmable logic controller (PLC) or other control devices into analog signals. These analog signals are then used to control a wide range of industrial devices such as valves, motors, and actuators.

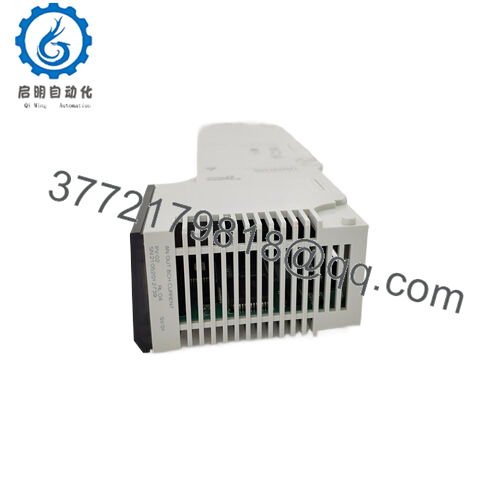

140ACO13000
Within the Modicon Quantum architecture, the 140ACO13000 fits in as a crucial link between the control system’s digital decision – making core and the analog – controlled field devices. It enables seamless communication and control, allowing engineers to translate complex control algorithms into real – world actions. What makes it highly valuable for engineers and integrators is its flexibility. With eight analog output channels, it can be configured to meet the specific needs of different applications. Whether it’s a small – scale industrial process or a large – scale factory – wide automation system, the 140ACO13000 can be integrated and programmed to provide the necessary analog output control. It also supports easy configuration through software like Unity Pro, which simplifies the setup process and reduces the time required for commissioning.

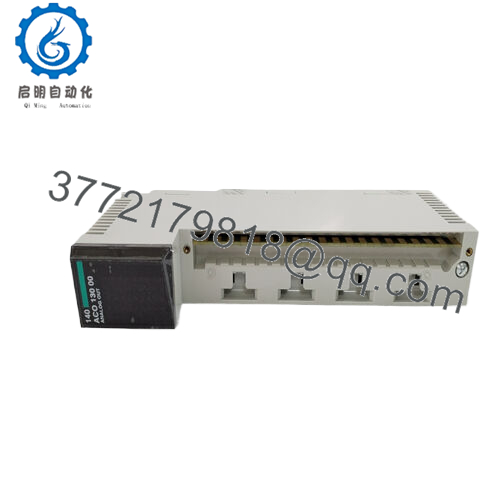

140ACO13000
Main features and advantages:
The Schneider Electric 140ACO13000 stands out for its exceptional functional performance. It offers multiple analog output ranges, including 0 – 20 mA, 0 – 25 mA, and 4 – 20 mA, with different count resolutions. For example, in the 4 – 20 mA range, it can provide a resolution of 0 – 16,000 points (default) or 0 – 4095 points, allowing for highly accurate control. The module has a fast update time of 5 ms, ensuring that changes in the control signal are quickly reflected in the connected devices. This speed is crucial in applications where real – time response is necessary, such as in high – speed manufacturing processes.
In terms of hardware design, the 140ACO13000 is built to last. Its rugged construction can withstand harsh industrial environments, including temperature variations from 0 to 60 °C. The compact size of the module makes it easy to fit into existing control cabinets, saving valuable space. It also features a standard module format, which simplifies installation and replacement. The module’s bus current requirement is 550 mA, and it has a maximum power dissipation of 5.0 W, ensuring efficient operation.
Compatibility is another strong point of the 140ACO13000. It can be easily integrated into the Modicon Quantum platform and has isolation between channels and the bus, with a rating of 1780 V for 1 minute AC. This isolation helps prevent electrical interference and ensures reliable operation. It also supports communication with other components in the automation network, enabling seamless data exchange.
For long – term reliability, the module has built – in diagnostic features. LEDs on the module provide clear visual indicators of its status. A green LED indicates bus communication is present, a red LED alerts to external faults, and individual green and red LEDs for each of the eight channels show whether the output is switched on or if there is a channel – related fault, such as a broken wire. This makes it easy for maintenance personnel to quickly identify and troubleshoot issues, reducing downtime.

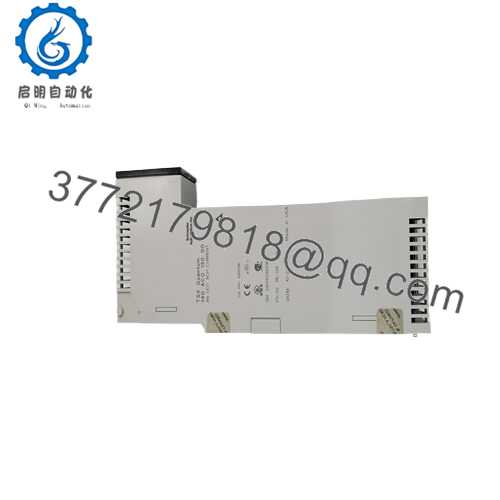

140ACO13000
Technical specifications:
Model 140ACO13000
Brand Schneider Electric
Type Modular Analog Output Module
Automation Platform Modicon Quantum
Analog Output Channels 8
Output Ranges 0 – 20 mA (0 – 20,000 counts), 0 – 25 mA (0 – 25,000 counts), 4 – 20 mA (0 – 16,000 counts default, 0 – 4095 counts)
Absolute Accuracy Error ±0.2% of full scale at 25 °C
Linearity Varies by range (e.g., ±12 µA for 4 – 20 mA 0 – 4095 counts)
Accuracy Drift according to Temperature 0.004% of full scale/°C typical, 0.007% of full scale/°C maximum
Isolation between Channels and Bus 1780 V for 1 minute AC
Update Time 5 ms
Setting Time 3.2 ms to ±0.1% of final value, 1.6 ms to 5% of final value
Fault Type Open circuit for 4 – 20 mA
Bus Current Requirement 550 mA
Maximum Power Dissipation 5 W
External Power Requirement 6 – 30 V DC
Marking CE
Local Signalling 1 green LED for bus communication, 1 red LED for external fault, 8 green LEDs for channel on, 8 red LEDs for channel fault
Module Format Standard
Net Weight 0.3 kg
Operating Temperature 0 – 60 °C
Storage Temperature – 40 – 85 °C
Relative Humidity 95% without condensation
Operating Altitude ≤5000 m
contact information Phone:+86 16626708626 WeChat/WhatsApp:+86 16626708626 Email: 3772179818@qq.com

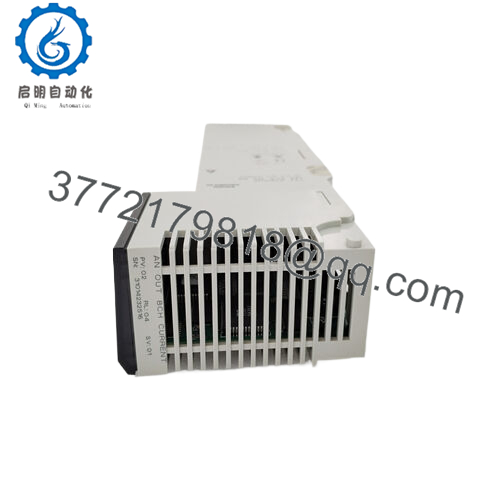

140ACO13000
Application areas:
In manufacturing plants, especially those involved in the production of high – precision components, the 140ACO13000 is used to control the speed and operation of various machines. For example, in a precision metal – working factory, it can regulate the flow of coolant to the machining tools. By accurately adjusting the coolant flow rate through analog output signals, it ensures that the cutting tools remain at an optimal temperature. This not only extends the lifespan of the tools but also improves the quality of the machined parts.
In the food and beverage industry, the Schneider Electric 140ACO13000 is essential for controlling filling and packaging machinery. It precisely controls the amount of liquid or granular product being dispensed into containers. In a bottling plant, it can adjust the flow of the beverage to ensure that each bottle is filled to the exact level, minimizing product waste and maintaining consistent quality.
In power generation facilities, whether they are fossil – fuel – based or renewable energy plants, this module is used to control the operation of various actuators. In a wind farm, for instance, it can adjust the pitch of the wind turbine blades. By sending accurate analog output signals, it enables the blades to be positioned optimally according to wind speed and direction, maximizing energy production. Across these industries, the 140ACO13000 is relied upon for its ability to provide accurate and reliable analog output control, making it an integral part of industrial control systems.

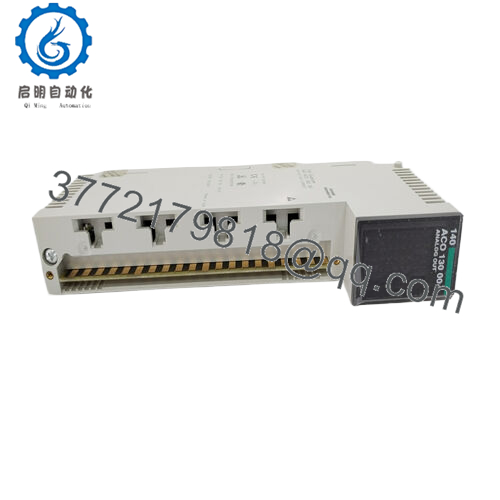

140ACO13000
Related products:
140ACI04000 – An analog input module within the Modicon Quantum series. It can be used in tandem with the 140ACO13000 to create a complete analog I/O solution, where the input module reads analog signals from sensors, and the 140ACO13000 sends out control signals based on the processed data.
140CPU67160 – A powerful CPU module in the Modicon Quantum range. The 140ACO13000 can be connected to this CPU, with the CPU providing the control logic and instructions that the 140ACO13000 uses to generate its analog output signals.
140CHS11000 – A communication module for the Modicon Quantum platform. It enables the 140ACO13000 to communicate with other devices on the network, expanding the reach and functionality of the analog output module in a larger industrial automation system.
140XBP01000 – A power supply module for the Modicon Quantum series. It provides the necessary power for the 140ACO13000 to operate, ensuring stable and reliable power delivery for accurate analog output control.
140DDI35300 – A digital input module. In many industrial control systems, digital inputs from this module can be used in combination with the analog outputs of the 140ACO13000 to create complex control sequences.
140DRA84000 – A relay output module. It can be used in coordination with the 140ACO13000 when additional switching capabilities are required in the control system, with the analog output module providing the initial control signals that may trigger the relay operations.
140ARI03010 – Another analog input module with different input characteristics compared to the 140ACI04000. It can be used in scenarios where a wider variety of analog input signals need to be processed in conjunction with the analog output capabilities of the 140ACO13000.
Installation and maintenance:
Before installing the Schneider Electric 140ACO13000, careful planning is required. First, ensure that the control cabinet has sufficient space to accommodate the module. The module has a compact size, but proper ventilation around it is crucial to maintain the operating temperature within the specified range of 0 – 60 °C. When mounting the module on a DIN rail, make sure the rail is securely fastened and has enough room for the 140ACO13000 and any adjacent modules. Also, pay attention to the grounding requirements. A proper ground connection is essential to protect the module from electrical surges and to ensure accurate signal transmission. Use a suitable gauge of wire for grounding and connect it firmly to the designated grounding point on the module.
For maintenance, regular visual inspections are highly recommended. Check the LEDs on the module frequently. The green LED indicating bus communication should be on steadily, and the red LED for external faults should remain off. If any of the channel – related LEDs show an abnormal status (e.g., a red channel fault LED), it indicates a potential problem with that specific channel. Periodically, perform signal diagnostics to ensure that the analog output signals are accurate. This can be done by comparing the expected output values with the actual values measured at the connected devices. Additionally, keep an eye on the module’s operating temperature. If the temperature is approaching the upper limit, check for any ventilation blockages or excessive heat sources in the vicinity. Software – related maintenance, such as firmware updates, should be carried out according to the manufacturer’s recommendations. Before applying any firmware updates, back up the existing configuration settings to avoid losing important data.
