REF615 HBFEAEAGABB1BNA11E Advanced Busbar Protection Relay

Description

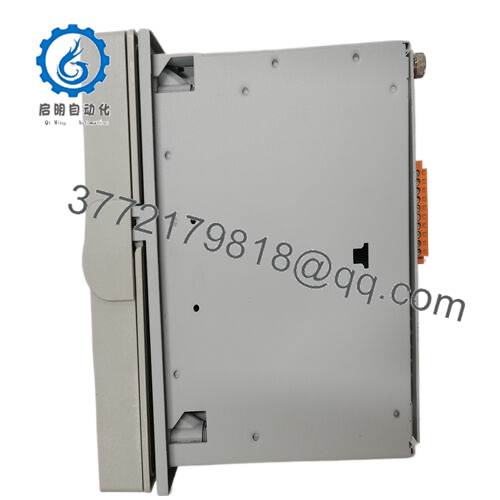

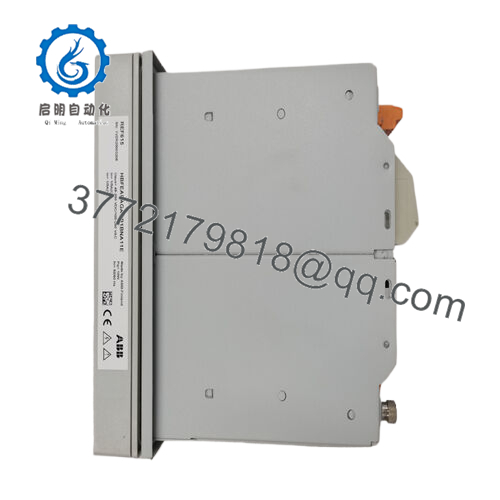

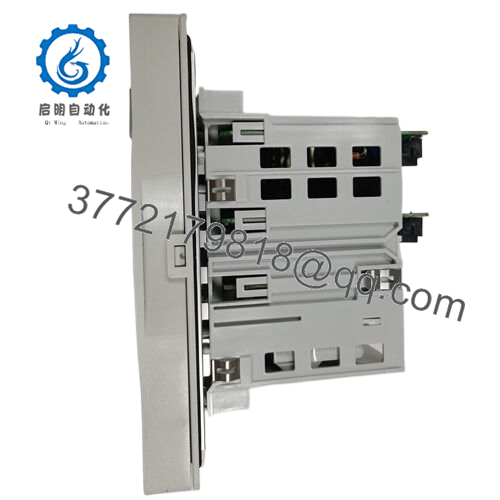

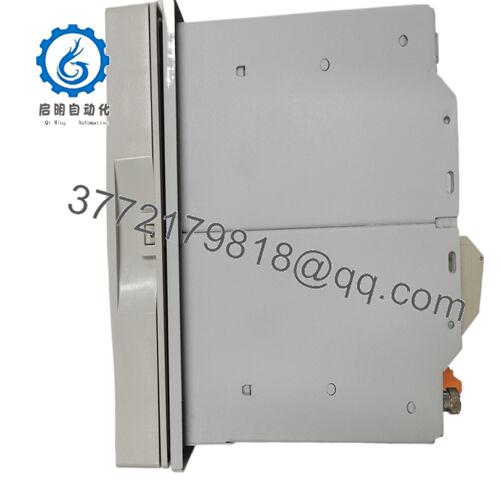

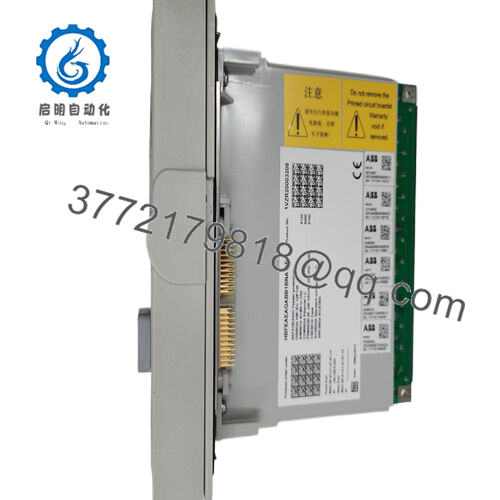

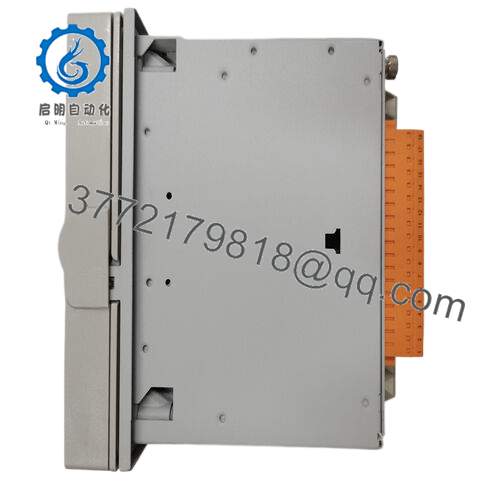

REF615 HBFEAEAGABB1BNA11E

The ABB REF615 HBFEAEAGABB1BNA11E operates as a dedicated protection and control device for busbar systems, positioned to continuously monitor current flows through all connected circuits. It utilizes advanced differential protection principles, comparing incoming and outgoing currents to quickly identify internal busbar faults while ignoring external faults that don’t threaten the busbar itself. This relay processes data from multiple current transformers (CTs) around the busbar, analyzing current magnitudes and phase relationships to detect faults within milliseconds—a critical capability, as busbar faults can generate extremely high fault currents that damage equipment if not isolated immediately.

REF615 HBFEAEAGABB1BNA11E

This relay integrates seamlessly into modern substation automation systems through full IEC 61850 Ed. 2 compliance, supporting high-speed GOOSE messaging for inter-relay communication and tripping coordination. It features configurable logic to adapt to various busbar topologies, including single-bus, double-bus, and ring-bus configurations, with specialized algorithms for handling bus section breakers and transfer schemes. Built-in diagnostic tools and event recording capabilities provide detailed fault analysis, supporting post-incident investigations and system optimization.

REF615 HBFEAEAGABB1BNA11E

Main features and advantages:

Selecting the ABB REF615 HBFEAEAGABB1BNA11E delivers significant operational advantages for busbar protection strategies. Its advanced differential protection algorithms provide ultra-fast fault detection (typically within 10-20 ms), minimizing the duration of high fault currents and reducing stress on connected equipment—critical for extending the lifespan of transformers, circuit breakers, and other expensive substation assets. The relay’s secure communication capabilities enable reliable coordination with other protection devices, ensuring selective tripping that isolates only the faulty bus section while maintaining power to healthy parts of the network.

Engineered for flexibility, the ABB REF615 HBFEAEAGABB1BNA11E supports a wide range of busbar configurations without hardware modifications, reducing inventory complexity and installation costs. Its built-in self-monitoring features continuously check for internal faults or communication issues, providing early warning of potential problems before they affect protection performance. Configurable via ABB’s PCM600 software, it simplifies complex protection schemes, allowing engineers to tailor settings to specific busbar designs and operational requirements.

REF615 HBFEAEAGABB1BNA11E

Application fields:

The ABB REF615 HBFEAEAGABB1BNA11E excels in applications where busbar reliability is mission-critical. In utility transmission and distribution substations, it protects main busbars that distribute power between multiple feeders and transformers, preventing widespread outages during fault conditions. Its ability to handle complex double-busbar configurations makes it ideal for large substations where maintenance flexibility and system redundancy are essential.

In industrial environments such as steel mills, refineries, and large manufacturing plants, the relay safeguards critical busbars that supply power to multiple production lines, ensuring that a single fault doesn’t cause complete facility shutdowns. Renewable energy installations, including large solar farms and wind parks, rely on the ABB REF615 HBFEAEAGABB1BNA11E to protect collector busbars connecting multiple generation units, maximizing energy production by minimizing downtime. Its rugged design ensures reliable operation in both indoor control rooms and harsh outdoor substation environments.

REF615 HBFEAEAGABB1BNA11E

Related products:

REF615 HBFEAEAGABB1BNA12E – Enhanced variant with additional communication ports for large-scale substations.

REF615 HBFEAEAGABB1BNA13E – Version with redundant power supplies for mission-critical applications.

REF610C11LCLR – Companion feeder protection relay for coordinated substation protection.

REF543KM127AAAA – Transformer protection relay that integrates with REF615 for complete substation coverage.

REX640 – ABB’s bay control unit for seamless integration with REF615 in automation systems.

RET670 – High-voltage feeder relay for protection coordination in transmission networks.

PCM600 – Configuration software optimized for setting up REF615 busbar protection schemes.

ABB Relion 670 Series Communication Module – Add-on for extended fiber optic communication in large substations.

REF615 HBFEAEAGABB1BNA11E

Installation and maintenance:

Before installing the ABB REF615 HBFEAEAGABB1BNA11E, verify the busbar configuration (single, double, ring, etc.) and connected equipment to determine appropriate CT connections and protection settings. Confirm auxiliary power supply compatibility (110-250 V AC/DC) and ensure the substation communication network supports IEC 61850 Ed. 2 for optimal performance. Check that the panel cutout matches the 144x144mm dimensions and allow at least 80mm clearance for ventilation, as the high-speed processing electronics generate moderate heat.

For maintenance, conduct monthly reviews of status indicators and event logs using PCM600 software to identify any unusual activity. Quarterly, inspect CT connections for tightness and corrosion, as poor connections can affect differential protection accuracy. Annually, verify protection settings against current system conditions, update firmware to access the latest protection algorithms, and perform a full functional test including primary injection testing where possible. For critical applications, schedule bi-annual calibration checks of current measurement circuits to ensure differential protection precision.
