NI PXI – 6713 High speed analog output module

Description

NI PXI-6713 is a high-speed analog output module designed for seamless integration into PXI based systems. As a single slot PXI module, it has become an indispensable part of the modular PXI architecture, which is renowned for its flexibility and scalability in industrial and testing environments.

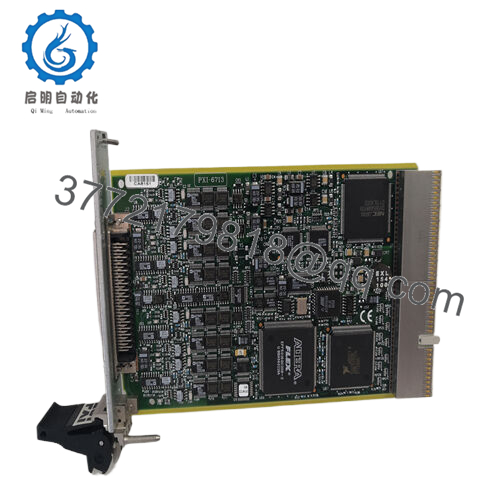

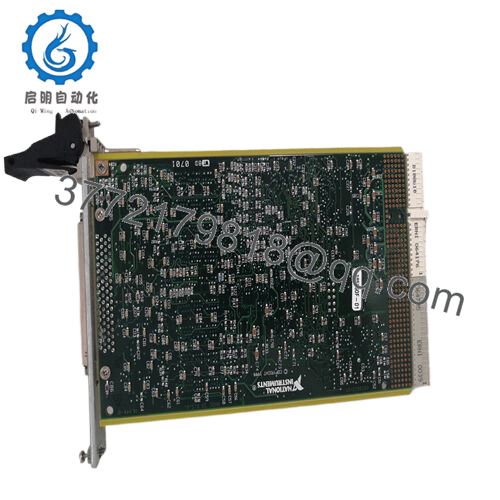

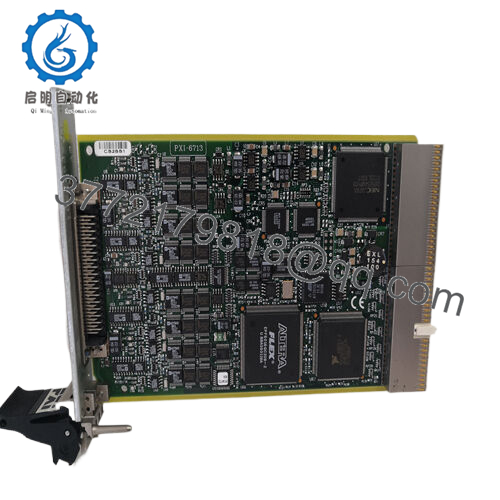

PXI – 6713

This module is equipped with eight 12 bit digital to analog converters (DACs), providing eight analog output channels. The maximum update rate for each channel is 1 MS/s, which can generate rapidly changing waveforms. The analog output voltage range is -10 V to 10 V, making it suitable for a wide range of application scenarios. For example, it can output low voltage signals for precision sensor simulation, as well as high voltage signals for driving industrial actuators.

The module also comes with eight 5V TTL/CMOS compatible digital I/O lines. These digital cables can be used for various purposes, such as controlling digital devices in control systems, providing status signals, or interfacing with other digital components. In addition, it is equipped with two 24 bit, 20 MHz counters/timers. These counters/timers are very useful for applications that require precise time measurement, such as motor speed control or generating time-based signals. NI PXI-6713 supports digital triggering and external clock functionality. Digital triggering enables precise synchronization with other system devices, while external clocks provide flexibility in using external time reference sources to ensure time accuracy in applications that require high precision.

PXI – 6713

Main features and advantages:
This module can be programmed and configured through the NI DAQmx driver software, which is compatible with popular software development environments such as LabVIEW, LabWindows/CVI, and Measurement Studio. This compatibility enables engineers to develop customized applications that meet their specific needs, whether for generating complex waveforms for testing or for industrial process control.

This module is designed for high performance and reliability, and can operate stably in harsh industrial and testing environments. The 12 bit analog output resolution strikes a good balance between accuracy and cost-effectiveness, meeting the needs of many applications without the need for overly complex and expensive high-resolution equipment.

A high update rate of 1 MS/s per channel can generate rapidly changing and accurate waveforms. This is crucial in applications such as high-speed data acquisition systems, as these applications require rapid generation and updating of signals. The multi-channel function of the module allows for the simultaneous control of multiple devices or the generation of complex multi-channel waveforms, reducing the need for multiple independent modules and simplifying the overall system design.

The digital I/O lines and counters/timers increase the versatility of the module. Digital I/O lines can be used to interface with various digital devices, while counters/timers provide accurate time measurement capabilities for applications that require precise time marking or frequency measurement. By using the NI DAQmx driver program to configure the NI PXI-6713 software, the engineering workload has been reduced. Engineers only need to modify software settings to quickly adapt modules to different applications without the need for complex hardware changes.

PXI – 6713

Technical specifications:
Model PXI-6713
Brand NI
Type: High speed analog output module
Input voltage is not the main specification; Designed to interface with standard digital signal levels for control and triggering functions
Working temperature range: 0 ° C to 50 ° C
Installation method: PXI single slot, easy to integrate into PXI chassis
Size 6.3 inches x 3.9 inches
Weight not specified in the given data
Interface/bus PXI bus, used for high-speed communication within PXI systems
Compliance meets relevant industry standards and can operate reliably in industrial environments
Supporting protocols compatible with protocols used in industrial automation and data acquisition through the NI DAQmx driver program
Typical power consumption not specified in the given data
Number of analog output channels 8
Analog output resolution of 12 bits
Maximum update rate per channel 1 MS/s
Analog output voltage range -10 V to 10 V
Number of digital I/O lines 8 (5 V TTL/CMOS compatible)
Number of counters/timers 2 (24 bits, 20 MHz)
Trigger and clock function, digital trigger and external clock function

Contact Us
Phone:+86 16626708626
WhatsApp/WeChat:+86 16626708626
Email: 3772179818@qq.com

PXI – 6713

Application areas:
In the automotive industry, it is used for engine test benches. This module can generate analog signals to control the fuel injection system, simulate different load conditions of the engine, and measure performance parameters of the engine. Its ability to provide accurate and rapidly changing signals helps optimize engine performance and ensure compliance with emission standards.

In the aerospace industry, NI PXI-6713 is used to simulate sensor signals when testing aircraft avionics systems. It can generate signals that simulate the outputs of various sensors such as temperature sensors, pressure sensors, and accelerometers, enabling comprehensive testing of avionics systems in a controlled environment. In the field of power electronics, this module can be used to control power sources. It can generate necessary analog signals to regulate the output voltage and current of the power supply, ensuring stable and reliable power supply.

Related products:
NI PXI-6733: Provides 16 bit analog output resolution, enabling more accurate signal generation for applications that require extremely precise voltage levels, such as high-end audio testing or certain scientific research applications. However, it may have different maximum update rates and channel configurations, so careful evaluation is needed based on specific application requirements.
NI PCI-6713: The PCI version of this module. Can be used for systems without PXI chassis but still requiring high-performance analog output capability. However, it may not have the high-speed and synchronous data transmission advantages of PXI bus in PXI systems.
NI PXI-6723: Has different combinations of analog output channels and update rates. For applications that require different numbers of analog output channels or update rates than NI PXI-6713, it may be more appropriate. For example, if an application requires a higher number of analog output channels and a slightly lower update rate, NI PXI-6723 may be a feasible alternative.
NI CompactDAQ-9263: Provides analog output capability. For applications that require compact and portable data collection and output solutions, such as on-site testing or small research projects, it may be more suitable. However, it may not have the same performance or equivalent number of features as NI PXI-6713 in a complete PXI system.
NI PXIe-6738: A module based on PXI Express that may have higher performance in data transfer speed and more advanced features. For applications that require extremely high speed data transmission and more complex functions, such as high-speed data streams or real-time control systems with high bandwidth requirements, it may be an alternative solution.

Installation and maintenance:
Before installing NI PXI-6713, ensure that the PXI chassis has available slots and that the chassis power supply can support the newly added modules. Check the NI DAQmx driver version on the computer and ensure it is the latest version to achieve optimal compatibility with NI PXI-6713. In addition, verify whether the devices connected to the module (whether they receive analog output signals or interface with digital I/O lines) are compatible with the signal levels and functions provided by the module.

For daily maintenance, regularly check the connections between modules and other devices to ensure they are secure. Loose connections may result in signal loss, output errors, or communication issues. Use the diagnostic tests provided by NI DAQ software to monitor the performance of the module. These tests help detect any potential issues, such as abnormal noise in analog output signals, digital I/O operation errors, or counter/timer problems. The recommended operating temperature range for this module is 0 ° C to 50 ° C. Ensure that the module installation environment has appropriate cooling measures to maintain this temperature range. If the module is used in a dusty or humid environment, appropriate environmental control measures should be taken to prevent damage to internal components.
