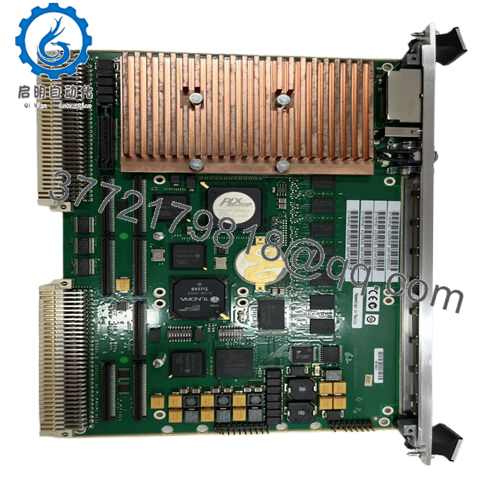

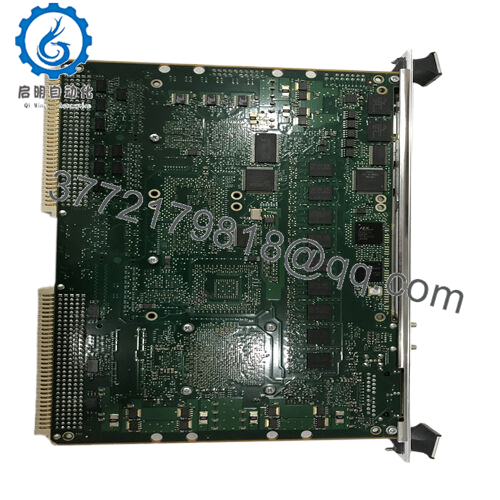

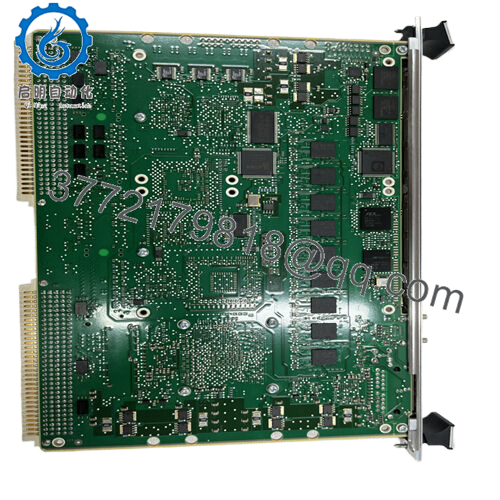

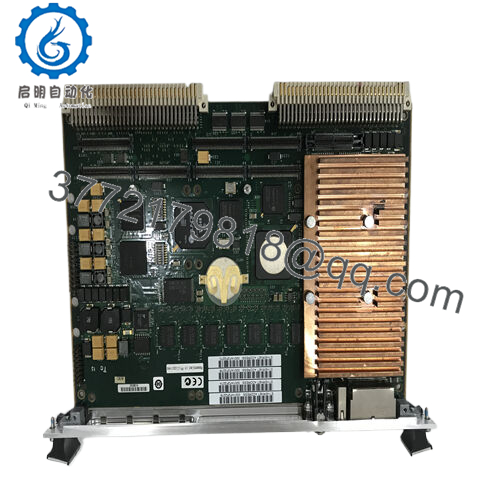

The MOTOROLA MVME7100 is a high – performance VMEbus single – board computer, meticulously engineered to meet the most demanding requirements of industrial and embedded applications. It is an integral part of the MOTOROLA MVME series, which has long been renowned for its excellence in delivering advanced computing solutions.
Model MVME7100
Brand MOTOROLA
Type VMEbus Single – Board Computer
Processor NXP MPC864xD with dual PowerPC e600 cores (1.06 GHz or 1.3 GHz)
Memory Up to 2GB DDR2 ECC SDRAM
Storage 128MB NOR flash; 2GB, 4GB, or 8GB NAND flash
Ethernet Interfaces 4 x Gigabit Ethernet
Serial Ports 5 x RS – 232
USB Interface USB 2.0 (commercial temperature only)
VMEbus Protocol 2eSST VMEbus, 20MB/s transfer rate
Expansion Slots Dual 33/66/100 MHz PMC – X interface; 8x PCI Express expansion connector
Operating Temperature Standard: [Specify standard temp range]; Extended: – 40°C to + 71°C
Mounting Designed for standard VMEbus mounting
Certifications Meets relevant industrial standards
Cooling Efficient thermal design for heat dissipation
Environmental Rating Suitable for harsh industrial environments
The MOTOROLA MVME7100 is a high – performance VMEbus single – board computer, meticulously engineered to meet the most demanding requirements of industrial and embedded applications. It is an integral part of the MOTOROLA MVME series, which has long been renowned for its excellence in delivering advanced computing solutions.
MVME7100
At its core, the MVME7100 is powered by a high – performance system – on – chip, the NXP MPC864xD. This chip features dual PowerPC e600 processor cores, which can operate at clock speeds of up to 1.3 GHz. This powerful processing setup enables the board to handle complex computational tasks with remarkable ease. It serves as the central processing unit within a control system architecture, acting as the brain that interfaces with a wide variety of input and output devices.
The MVME7100 is highly adaptable and can be seamlessly integrated into larger systems. It can be a key component of a distributed control system (DCS) in an industrial plant or an embedded system in a medical device. Its primary role is to process data received from sensors, analyze it in real – time, and then send out control signals to actuators. Engineers and integrators highly value the MVME7100 for its versatility. It is compatible with multiple operating systems, including popular real – time operating systems like VxWorks, Linux, and LynxOS. This compatibility makes it suitable for a broad spectrum of applications, from industrial automation to medical imaging.
MVME7100
Main features and advantages:
The MOTOROLA MVME7100 offers a plethora of impressive technical features that translate into significant functional benefits.
In terms of functional performance, its high – speed dual – core processor enables rapid data processing. Whether it’s handling real – time sensor data in an industrial setting or running complex algorithms in a defense application, the MVME7100 can keep up with the most demanding requirements. With a clock speed of up to 1.3 GHz, it ensures minimal latency in data processing, which is critical for applications where split – second decisions are necessary. Each core has its own 32 K/32 K L1 cache (instruction/data), and a 1MB L2 cache, which further boosts performance by reducing data access times.
The hardware design of the MVME7100is both rugged and compact. It is designed to fit into standard VMEbus form – factors, allowing for easy integration into existing systems. Its rugged construction allows it to withstand harsh environmental conditions, including vibrations, shocks, and temperature variations ranging from – 40°C to + 71°C (in the extended temperature version). This makes it suitable for use in industrial plants, military vehicles, and aircraft, where the operating environment can be extremely challenging.
Compatibility is one of the MVME7100‘s strong suits. It is equipped with a wide range of interfaces. It features four gigabit Ethernet ports, which are ideal for high – speed data transfer in network – connected applications, such as factory – wide data sharing and remote monitoring. There are also five RS – 232 serial connections, which can be used to interface with a variety of legacy and specialized devices. For industrial applications that require connection to a large number of sensors and actuators, the MVME7100also supports USB 2.0 (in the commercial temperature version) for easy integration of cost – effective peripherals. In terms of expansion, it has a 2eSST VMEbus protocol, which allows for fast data transfer across the VMEbus at rates of up to 20MB/s. It also features a dual 33/66/100 MHz PMC – X interface, enabling expansion through industry – standard modules. Additionally, an 8x PCI Express expansion connector is available, which can be used with SMART EC XMCspan to expand PMC – X and XMC capabilities.
When it comes to long – term reliability, the MVME7100 is built to last. It has a thermal design that ensures efficient heat dissipation, which helps maintain stable operation even during extended periods of use. The use of high – quality components, such as up to 2GB of DDR2 ECC (Error – Correcting Code) memory, enhances its reliability by detecting and correcting single – bit errors in the memory, reducing the likelihood of data corruption. It also comes with 128MB NOR flash and options for 2GB, 4GB, or 8GB NAND flash, providing sufficient storage for the operating system, applications, and data logging.
MVME7100
Technical specifications:
Model MVME7100
Brand MOTOROLA
Type VMEbus Single – Board Computer
Processor NXP MPC864xD with dual PowerPC e600 cores (1.06 GHz or 1.3 GHz)
Memory Up to 2GB DDR2 ECC SDRAM
Storage 128MB NOR flash; 2GB, 4GB, or 8GB NAND flash
Ethernet Interfaces 4 x Gigabit Ethernet
Serial Ports 5 x RS – 232
USB Interface USB 2.0 (commercial temperature only)
VMEbus Protocol 2eSST VMEbus, 20MB/s transfer rate
Expansion Slots Dual 33/66/100 MHz PMC – X interface; 8x PCI Express expansion connector
Operating Temperature Standard: [Specify standard temp range]; Extended: – 40°C to + 71°C
Mounting Designed for standard VMEbus mounting
Certifications Meets relevant industrial standards
Cooling Efficient thermal design for heat dissipation
Environmental Rating Suitable for harsh industrial environments
Contact Us Phone:+86 16626708626 WeChat/WhatsApp:+86 16626708626 Email: 3772179818@qq.com
MVME7100
Application areas:
In the complex and dynamic landscapes of modern industries, the MOTOROLAMVME7100 emerges as a pivotal component, driving efficiency and innovation across a diverse range of sectors.
In industrial automation, which lies at the heart of modern manufacturing, the MVME7100 plays a crucial role. Factories heavily rely on it to manage intricate robotic assembly lines. For example, in an automotive manufacturing facility, where precision is of utmost importance, robotic arms need to fit together minuscule components of engines with micron – level accuracy. The MVME7100‘s high – speed data processing capabilities ensure that these robots can move with such precision. It rapidly analyzes data from sensors placed along the production line, such as those detecting the position and orientation of parts, and then adjusts the robotic arms’ movements accordingly. This not only reduces errors but also significantly enhances production efficiency. In chemical plants, the MVME7100is used in process control systems. By continuously monitoring real – time sensor data related to variables like temperature, pressure, and fluid flow, it controls valves and pumps to maintain optimal production conditions, ensuring product quality and safety.
The medical field also benefits greatly from the MOTOROLA MVME7100. In diagnostic imaging equipment such as CT scanners and MRI machines, this device is essential for processing the vast amounts of data generated during scans. In a CT scanner, the MVME7100quickly reconstructs images from X – ray data, enabling doctors to obtain clear and detailed images for accurate diagnoses. In radiation therapy devices, it precisely controls the delivery of radiation to the targeted areas in patients, ensuring effective treatment while minimizing damage to healthy tissues.
Defense and aerospace applications have extremely stringent requirements for components, and the MVME7100 meets these demands. In military communication systems, it processes encrypted data, guaranteeing secure and reliable transmission even in harsh and contested environments. In aircraft avionics, it is vital for managing navigation systems. By integrating data from GPS, inertial sensors, and other sources, it provides pilots with accurate and up – to – date flight information, enabling safe takeoffs, landings, and in – flight maneuvers. Its ability to function reliably under extreme conditions, including high vibrations, extreme temperatures, and high altitudes, makes it an ideal choice for these critical applications.
Related products:
MVME5100 – An earlier model in the MOTOROLA VMEbus family. It has a lower processing power compared to the MVME7100, making it more suitable for less data – intensive applications, such as basic monitoring systems in small – scale industrial setups.
MVME6100 – A model with a different processor configuration. While it also offers high – performance computing, the MVME7100‘s dual – core setup and specific feature set make it more suitable for certain applications that require parallel processing, like complex data analytics in real – time industrial control systems.
Installation and maintenance:
Before installing the MOTOROLA MVME7100, integrators must consider several important factors. The control cabinet where it will be installed should have sufficient space to accommodate the board while allowing for proper ventilation. Given the board’s ability to operate in a wide temperature range, maintaining good air circulation around it helps in ensuring optimal performance. Grounding is also of utmost importance. A proper grounding connection not only protects the MVME7100 from electrical surges but also helps in reducing electromagnetic interference, which can affect the performance of other components in the system.
For maintenance, regular visual inspections are recommended at least once every six months. During these inspections, check for any signs of physical damage, such as cracks on the board or loose connections. Signal diagnostics should be carried out quarterly. Use appropriate diagnostic tools to check the integrity of the signals going in and out of the module. This helps in detecting any potential issues early on. Firmware updates are crucial for keeping the MVME7100running smoothly. Motorola provides regular firmware updates, which can improve performance, add new features, and fix any known bugs. It is advisable to update the firmware at least once a year or as soon as a relevant new version is available.
