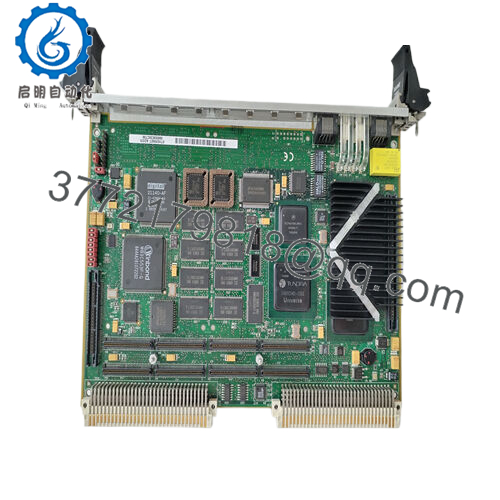

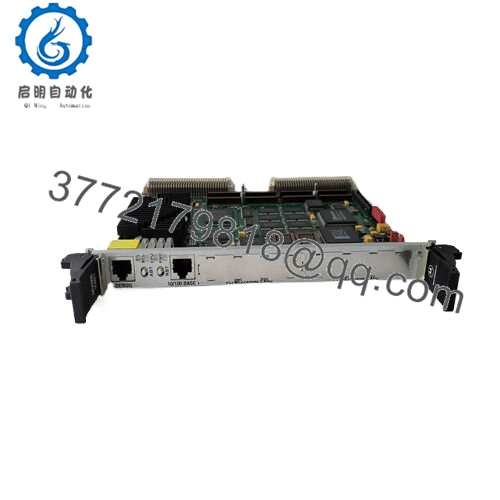

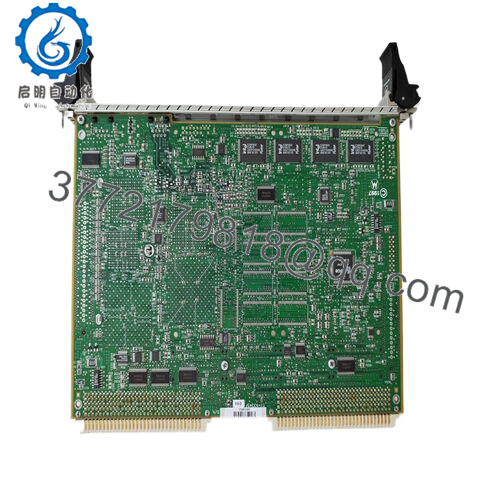

Motorola MVME2301 Compact 3U VMEbus Single-Board Computer

Description

The Motorola MVME2301 functions as a high-performance, space-optimized processing hub within VMEbus architectures, leveraging a 3U form factor to integrate seamlessly into enclosures where larger 6U modules would be impractical. Unlike basic compact modules, it features a powerful multi-core processor that rivals the performance of larger units, enabling it to handle both real-time control tasks and data processing for analytics—all within a footprint that’s over 50% smaller than 6U alternatives.

MVME2301

Technical specifications:
Model Number MVME2301
Brand Motorola
Type Compact 3U VMEbus Single-Board Computer
Input Voltage +5V DC, +3.3V DC
Operating Temp Range -40°C to 70°C (-40°F to 158°F)
Mounting Style 3U VMEbus backplane mount
Dimensions 100mm x 160mm (3.94in x 6.30in)
Weight 350g (12.3oz)
Interface/Bus VMEbus (32/64-bit), 2x Gigabit Ethernet, 4x RS-485
Compliance CE, UL 61010-1, RoHS, ATEX Zone 2
Supported Protocols PROFINET, Modbus TCP/IP, CANopen, EtherCAT
Typical Power Draw 28W (max)

Contact Us
Phone:+86 16626708626
WeChat/WhatsApp:+86 16626708626
Email: 3772179818@qq.com

MVME2301

Main features and advantages:

Choosing the Motorola MVME2301 delivers significant advantages for engineers working with space-constrained automation systems. Its multi-core architecture ensures that critical control loops—such as those regulating hydraulic pressure in mobile cranes or temperature in compact industrial ovens—remain responsive even while the module simultaneously processes data for analytics or remote monitoring. This eliminates the need for separate processing units, reducing both hardware costs and potential points of failure. The Motorola MVME2301’s extended temperature range (-40°C to 70°C) allows it to operate reliably in extreme environments, from freezing cold storage facilities to hot factory floors, without requiring expensive climate control measures. For facilities transitioning to smart manufacturing, its dual Gigabit Ethernet ports enable parallel connectivity to both operational networks (for real-time control) and information networks (for data analytics), simplifying the integration of IIoT capabilities into compact systems.

MVME2301

Application areas:

The Motorola MVME2301 is deployed in a range of applications where compact size and high performance are equally critical. In mobile agricultural equipment, such as precision planting machines, it serves as the control core, processing data from GPS modules, soil sensors, and seed flow monitors to optimize planting depth and spacing—all within the tight electrical enclosures of moving machinery. Its rugged design withstands the vibration and temperature fluctuations inherent in this environment. In semiconductor manufacturing cleanrooms, the Motorola MVME2301 manages compact robotic handlers, coordinating arm movements and wafer alignment with micron-level precision while operating within the space constraints of contamination-controlled enclosures. Its low electromagnetic interference (EMI) profile ensures it doesn’t disrupt sensitive wafer inspection equipment. Additionally, in renewable energy systems like solar tracking arrays, it processes data from light sensors and weather monitors to adjust panel angles for maximum efficiency, fitting into the small enclosures of outdoor tracking units.

MVME2301
