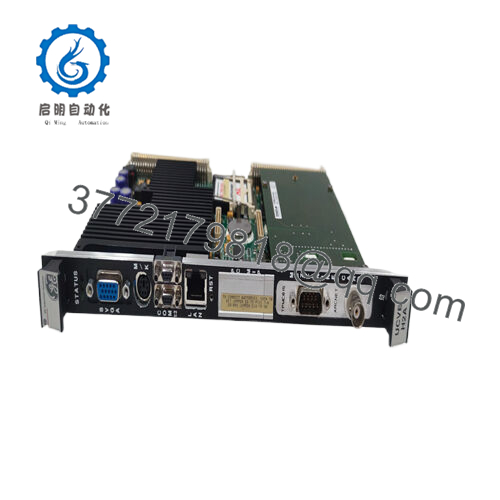

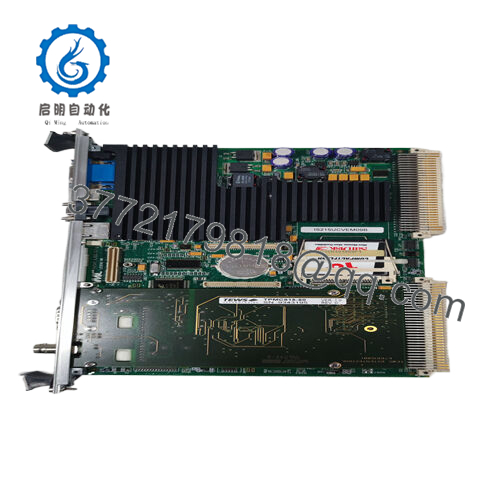

IS215UCVEM09B US2000 Processor Board

Description

IS215UCVEM09B

The GE IS215UCVEM09B is a high – performance US2000 processor board, a key component within GE’s renowned Mark VI series. Acting as the computational powerhouse of control systems, it is responsible for executing complex control algorithms, efficiently managing data flow, and enabling seamless communication between different elements of the system. It directly interfaces with a wide variety of sensors distributed throughout the industrial setup.

IS215UCVEM09B

These sensors provide it with real – time data on the operational status of equipment. Once the data is received, the GE IS215UCVEM09B processes it according to pre – programmed logic. For instance, if a sensor detects a deviation in the temperature of a critical component in a turbine, the board will quickly calculate the necessary corrective actions. It may then send signals to actuators to increase the flow of cooling fluid or adjust the fuel injection rate to bring the temperature back to the optimal range. In the overall architecture of a control system, the GE IS215UCVEM09B serves as the command center. Its compatibility with other components in the Mark VI series, such as communication modules and input/output units, makes it highly adaptable for system integrators looking to build new automation systems or upgrade existing ones. This adaptability allows for greater flexibility in designing control systems that can meet the specific needs of different industrial applications.

IS215UCVEM09B

Main features and advantages:

This processor board offers exceptional functional performance. Powered by a 650 MHz Intel Ultra Low Voltage Celeron microprocessor, it can process large volumes of data at high speeds, providing rapid response times even in the most challenging industrial environments. With 128 MB of flash memory, it has sufficient storage for system programs and operational data, ensuring stable and uninterrupted operation. Its hardware design is both compact and rugged, measuring 15.9 cm in height and 17.8 cm in width, making it suitable for installation in tight – fitting control cabinets. It can withstand operating temperatures ranging from – 30°C to 65°C, guaranteeing reliable performance across diverse environmental conditions. In terms of connectivity, it features two 10BaseT/100BaseTX (RJ – 45) Ethernet ports, enabling seamless integration with other networked devices in the control system. Whether it’s communicating with HMIs for operator control, other controller modules for coordinated operation, or data – logging systems for performance analysis, the GE IS215UCVEM09B does so with ease. It also has multiple communication ports and USB ports, which further enhance its connectivity options. Additionally, it has a common – mode voltage range of +5 V DC and operates at a frequency of 50 or 60 Hz, making it suitable for use in different regions around the world.

IS215UCVEM09B

Application fields:

In the fast – paced and demanding arenas of power generation and large – scale industrial manufacturing, maintaining seamless and efficient operations is of utmost importance. Power plants must ensure that their turbines run with absolute precision to avoid disruptions in the power supply, and factories need their production lines to operate smoothly to meet production quotas. The GE IS215UCVEM09B steps in as a crucial solution in these scenarios. As an integral part of GE’s advanced Speedtronic Mark VI turbine control systems, it plays a central role in power generation facilities, whether they are powered by gas turbines, steam turbines, or other types of power – producing equipment. In power plants, the GE IS215UCVEM09B continuously analyzes data from a vast network of sensors. It keeps a close eye on critical parameters such as turbine inlet temperature, which directly impacts the efficiency of power generation, exhaust gas pressure that can indicate potential issues in the combustion process, and rotational speed to ensure stable operation. By processing this real – time data, the board can make rapid decisions to adjust fuel flow, optimize the position of control valves, and manage cooling systems effectively. This not only ensures that turbines operate at peak efficiency, reducing fuel consumption and minimizing equipment wear and tear, but also helps in maintaining grid stability. In industrial manufacturing, especially in plants with complex mechanical systems, the GE IS215UCVEM09B is essential for coordinating intricate processes. It can manage the precise sequencing of motors in a multi – stage production line, ensuring that each step occurs in the correct order and at the right time. It also regulates the speed of conveyor belts to match production rates, preventing bottlenecks and ensuring a smooth flow of materials. Additionally, it controls the operation of pneumatic and hydraulic systems, which are widely used in manufacturing for tasks such as material handling and machine tool operation.

IS215UCVEM09B

Related products:

IS215UCVEM06A – An earlier – generation board with more basic capabilities, suitable for legacy systems where the processing requirements are not as high.

IS215VCMIH1A – A communication module that can be paired with the GE IS215UCVEM09B to expand its network connectivity options, especially useful for more complex control setups.

IS215UDCVH1A – A digital control module that can be integrated to enhance the control capabilities, particularly beneficial for systems with a large number of digital inputs and outputs.

IS215VCMIF1A – Another communication module offering different data transfer speeds, which is handy when integrating with devices that have specific speed requirements.

IS215UCVEM07A – A board with enhanced processing power, which can be considered as an upgrade option for applications that are starting to outgrow the capabilities of the GE IS215UCVEM09B.

IS215UDCVJ1A – A digital control module with improved diagnostic features, which can be used in conjunction with the GE IS215UCVEM09B to enhance system monitoring and troubleshooting.

IS215VCMIG1A – A communication module designed for wireless communication integration, adding flexibility to the overall control system when used with the GE IS215UCVEM09B.

IS215UCVEM08B – A related model with some similarities but lacking certain advanced features present in the GE IS215UCVEM09B, such as the more powerful microprocessor.

Installation and maintenance:

Before installing the GE IS215UCVEM09B, it is essential to carefully assess the available space in the control cabinet. Ensure that there is at least 20 mm of clearance around the board to allow for proper ventilation, as it generates heat during operation. Check the electrical environment to confirm that the voltage supply is stable and within the specified range for the module. Grounding is of critical importance; connect the board’s grounding terminal to a reliable earth ground with a resistance of less than 5 ohms to protect against electrical surges and interference. When routing cables, separate power cables from signal cables to prevent signal degradation. Use shielded cables for signal connections, especially in areas with high electromagnetic interference. This will help in maintaining the integrity of the data being transmitted to and from the board.

For maintenance, perform visual inspections quarterly. Look for any signs of physical damage, such as cracks in the casing or loose connections. Check for dust accumulation, as it can impede the board’s cooling efficiency and potentially cause overheating. Annually, use GE’s dedicated diagnostic software to conduct comprehensive tests on the module. This includes checking the integrity of the memory, testing the processor’s performance, and verifying the functionality of all communication ports. Keep spare boards on hand to minimize downtime in case of a failure. Update the board’s firmware as recommended by GE, usually once every 18 months, to benefit from the latest performance improvements, security enhancements, and bug fixes. This will ensure that the GE IS215UCVEM09B continues to operate at its best and remains compatible with the latest software and hardware developments in the industrial control field.
