IC9445B200AB Watertight Standard Lever Limit Switch

Description

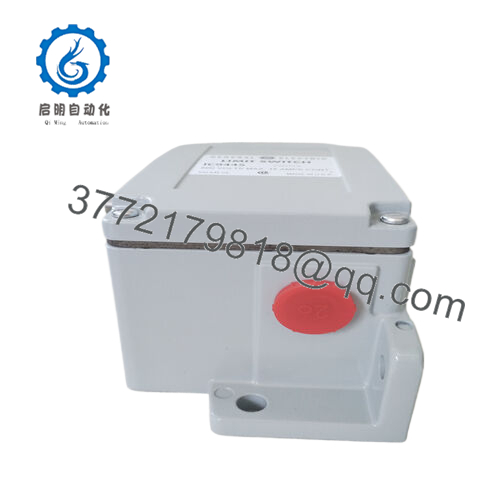

IC9445B200AB

The GE IC9445B200AB is a watertight standard lever limit switch, designed to withstand harsh industrial conditions. It is a key component in safety and control systems, providing a simple yet effective way to monitor the position of machinery parts. This limit switch is part of GE’s extensive range of industrial control products, known for their quality and reliability.

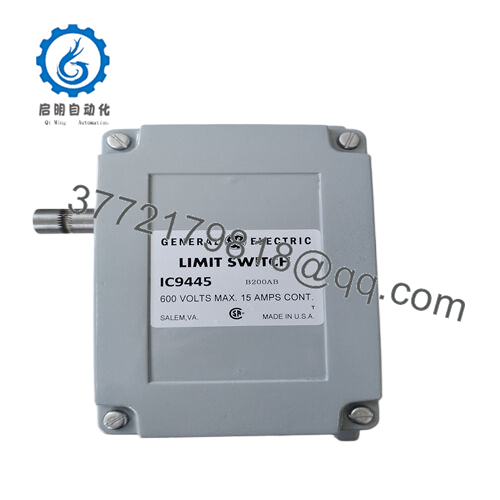

IC9445B200AB

It fits seamlessly into existing control systems, whether it’s a basic relay-based setup or a more advanced programmable logic controller (PLC) system. For system integrators, its compatibility with different types of industrial equipment makes it a versatile choice. It allows for easy integration into new projects or replacement in older systems, ensuring that operations can continue without major disruptions.

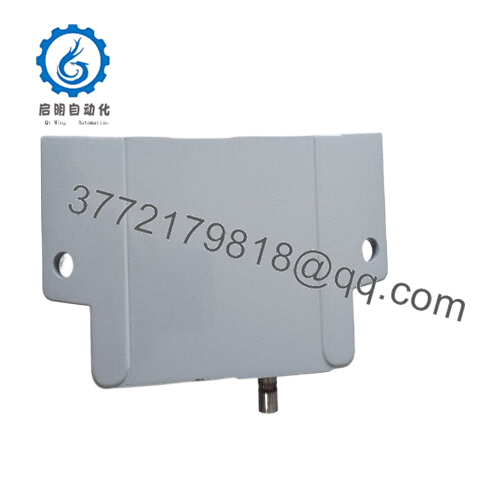

IC9445B200AB

Main features and advantages:

One of the major strengths of the GE IC9445B200AB is its robust construction. The watertight enclosure protects the internal components from water, dust, and other contaminants, making it suitable for use in wet or dirty environments such as those found in the food and beverage, marine, and wastewater treatment industries. The standard lever design is easy to operate and can be actuated by the movement of machinery parts. It has a rated voltage of 600V AC, which makes it suitable for a wide range of industrial applications where higher voltage systems are in use. The switch can handle a current of 15A, providing sufficient capacity for most common industrial control tasks. In terms of reliability, it has been engineered to have a long service life, reducing the need for frequent replacements and minimizing downtime.

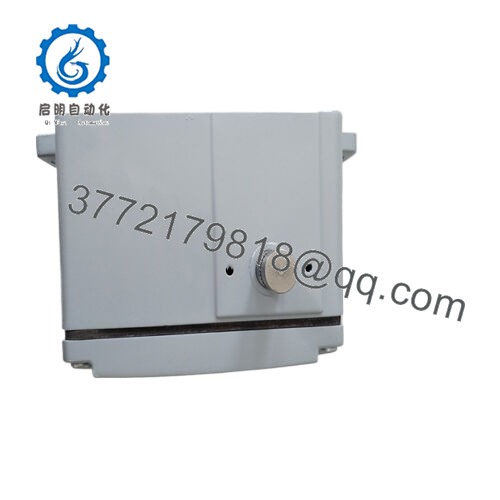

IC9445B200AB

Application fields:

In the bustling world of industrial manufacturing, automated machinery and equipment need to operate with pinpoint accuracy. Whether it’s conveyor belts in a food processing plant, robotic arms in an automotive assembly line, or the movement of large valves in a water treatment facility, there’s a constant need to control the position and movement of various components. This is where limit switches play a crucial role, and the GE IC9445B200AB is a top choice for engineers and plant managers.

In manufacturing plants, the GE IC9445B200AB is used to detect the end position of moving parts. For example, in a packaging machine, it ensures that the packaging materials are fed precisely to the right position before the sealing process begins. In mining operations, it can be installed on the lifting mechanisms of ore carts to prevent over-travel, which could lead to serious accidents and equipment damage. In any industrial environment where there are moving parts that need to be stopped or redirected at specific points, the GE IC9445B200AB provides a reliable solution. Its role in industrial automation is vital, as it helps maintain the smooth flow of operations, reduces the risk of errors, and enhances overall productivity.

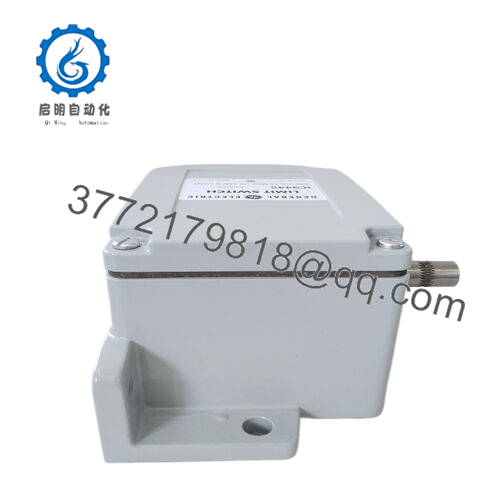

IC9445B200AB

Related products:

IC9445A200AB – A related limit switch in the GE family, with a slightly different design, perhaps more suitable for applications where space is more limited.

IC9445B200AC – Another lever limit switch from GE, similar to the IC9445B200AB, but with some minor differences in the lever mechanism, which might be better for specific types of machinery movements.

IC9445A200AC – A lever limit switch that could be an alternative for applications where a different level of sensitivity in detecting the position is required compared to the IC9445B200AB.

IC9445B200AP – A switch variant that might have additional features, such as enhanced electrical insulation, making it suitable for applications in environments with higher electrical risks.

IC9445A200AB202DE – A limit switch with a 2-circuit NEMA 1 enclosure, which could be used in applications where a more standard enclosure type is acceptable, unlike the watertight IC9445B200AB.

GE WR55X10942 – Although it’s a refrigerator control board, it can be part of a larger industrial control system where the IC9445B200AB might also be used, for example, in a cold storage facility where both temperature control and machinery position control are important.

GE WR60X162 – A refrigerator evaporator motor, which could be in the same industrial setting as the IC9445B200AB, especially in industries that rely on refrigeration systems and also need to control the movement of associated equipment.

IC9445B200AB

Installation and maintenance:

Before installing the GE IC9445B200AB, ensure that the mounting location has enough space to accommodate the switch. The switch should be mounted securely to a stable surface using appropriate fasteners. Make sure to check the alignment of the lever with the moving part that will actuate it. Ensure that all electrical connections are made in accordance with local electrical codes. Use proper gauge wires to handle the rated current and voltage of the switch. Grounding the switch is essential to protect against electrical malfunctions and to ensure safe operation.

For maintenance, perform visual inspections on a regular basis, say quarterly. Check for any signs of physical damage to the enclosure, such as cracks or dents. Ensure that the lever moves freely and is not stuck. Look for any signs of corrosion on the electrical terminals. Periodically test the switch’s functionality by actuating the lever and checking if the electrical contacts open and close as expected. If there are any issues, replace the switch promptly to avoid disruptions to the industrial process.
