Honeywell CC-PAIX01 High-Performance Analog Input Module
Sale!
Honeywell CC-PAIX01 High-Performance Analog Input Module
The Honeywell CC-PAIX01 serves as a crucial bridge between a vast array of field sensors and the overarching control systems. It is designed to handle a wide range of analog signals, including those from pressure transmitters, temperature sensors, and flow meters, with utmost efficiency. The module expertly converts these raw analog signals, typically in the range of 4 – 20 mA or 0 – 10 V, into digital data that can be easily processed by high – level controllers, such as those in Honeywell’s Experion PKS system. What sets the Honeywell CC-PAIX01 apart from the competition is its state – of – the – art signal conditioning technology. Equipped with advanced filters and algorithms, it can effectively eliminate high – frequency noise, ensuring that the data transmitted to the control system is clean and reliable. This is particularly important in applications where precision is non – negotiable, such as in the pharmaceutical industry, where even the tiniest deviation in sensor readings can impact product quality and safety.
Model NumberCC-PAIX01
Brand Honeywell
TypeHigh – Performance Analog Input Module
Input Voltage24V DC (±15%)
Operating Temp Range- 45°C to 75°C (- 49°F to 167°F)
Mounting StyleRack – mounted (19 – inch standard)
Dimensions130mm x 90mm x 220mm (L x W x H)
Weight0.8kg (1.76 lbs)
Interface/BusControlNet, Modbus (optional)
ComplianceCE, RoHS, UL 508, ATEX
Supported ProtocolsHART, Modbus RTU (direct or via gateway)
Typical Power Draw3.2W
The Honeywell CC-PAIX01 serves as a crucial bridge between a vast array of field sensors and the overarching control systems. It is designed to handle a wide range of analog signals, including those from pressure transmitters, temperature sensors, and flow meters, with utmost efficiency. The module expertly converts these raw analog signals, typically in the range of 4 – 20 mA or 0 – 10 V, into digital data that can be easily processed by high – level controllers, such as those in Honeywell’s Experion PKS system. What sets the Honeywell CC-PAIX01 apart from the competition is its state – of – the – art signal conditioning technology. Equipped with advanced filters and algorithms, it can effectively eliminate high – frequency noise, ensuring that the data transmitted to the control system is clean and reliable. This is particularly important in applications where precision is non – negotiable, such as in the pharmaceutical industry, where even the tiniest deviation in sensor readings can impact product quality and safety.
CC-PAIX01
One of the notable features of the Honeywell CC-PAIX01 is its support for multiple communication protocols. It not only supports the industry – standard ControlNet backplane for seamless integration with Honeywell’s control ecosystems but also has compatibility with HART communication. This bidirectional data exchange capability allows engineers to remotely calibrate and configure connected sensors without the need for physical intervention, minimizing disruption to ongoing operations. The module’s modular design is another advantage, as it can be easily installed in standard Honeywell I/O racks, making it a breeze to retrofit into existing systems. This reduces the need for custom – made mounting solutions and streamlines the overall installation process. Additionally, the Honeywell CC-PAIX01 comes with built – in diagnostic LEDs that provide real – time status updates. These LEDs can quickly alert maintenance teams to potential issues, such as overvoltage conditions, communication failures, or sensor malfunctions, enabling them to take prompt corrective action before these problems escalate and cause system – wide disruptions.
CC-PAIX01
Technical specifications:
Model NumberCC-PAIX01
Brand Honeywell
TypeHigh – Performance Analog Input Module
Input Voltage24V DC (±15%)
Operating Temp Range- 45°C to 75°C (- 49°F to 167°F)
Mounting StyleRack – mounted (19 – inch standard)
Dimensions130mm x 90mm x 220mm (L x W x H)
Weight0.8kg (1.76 lbs)
Interface/BusControlNet, Modbus (optional)
ComplianceCE, RoHS, UL 508, ATEX
Supported ProtocolsHART, Modbus RTU (direct or via gateway)
Typical Power Draw3.2W
Contact Us Phone:+86 16626708626 WeChat/WhatsApp:+86 16626708626 Email: 3772179818@qq.com
CC-PAIX01
Main features and advantages:
Selecting the Honeywell CC-PAIX01 brings a host of tangible benefits to industrial operations. Its rugged construction, featuring a durable enclosure and high – quality components, is designed to withstand extreme environmental conditions. The module is resistant to vibration, shock, and moisture, ensuring reliable performance even in the most demanding industrial settings. This robust design translates into a longer service life, reducing the need for frequent replacements and minimizing maintenance costs over time. The Honeywell CC – PAIX01‘s pre – configured compatibility with Honeywell’s control systems significantly simplifies the setup process. Engineers can quickly integrate the module into their existing infrastructure with minimal programming requirements, cutting down on commissioning time by up to 40%. This not only accelerates the deployment of new systems but also reduces the risk of human – error during configuration, ensuring a smooth and efficient start – up.
During day – to – day operation, the Honeywell CC-PAIX01 maintains an impressive accuracy of ±0.05% across its entire input range, even in the face of fluctuating ambient temperatures and electrical noise. This high level of precision enables tight process control, resulting in reduced product variability and improved overall product quality. By providing stable and accurate sensor data, the module also eases the burden on controllers, allowing them to focus on more complex decision – making tasks rather than spending valuable resources compensating for signal inaccuracies.

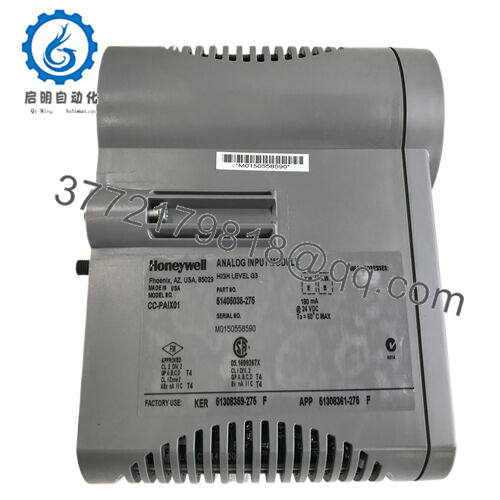

CC-PAIX01
Application areas:
The Honeywell CC-PAIX01 truly shines in applications where the reliability of analog data is of utmost importance. In the oil and gas industry, it can be used to monitor critical parameters in refineries, such as pressure and temperature in distillation columns. The precise readings provided by the module are essential for optimizing production processes, preventing equipment overheating, and ensuring the safety of personnel. In water treatment plants, the Honeywell CC-PAIX01 can convert signals from various sensors, including pH and turbidity sensors, enabling automated adjustments to maintain water quality while minimizing chemical usage. This not only helps in meeting strict environmental regulations but also reduces operational costs. In the automotive manufacturing sector, the module plays a vital role in supporting robotic assembly lines. By tracking hydraulic pressure and motor temperature, it ensures that equipment operates within safe and optimal parameters, preventing costly breakdowns and production delays. Across all these industries, the HoneywellCC-PAIX01s ability to handle high – density analog inputs while maintaining peak performance over extended periods of operation is invaluable, especially in scenarios where continuous uptime is essential for maintaining productivity and competitiveness.

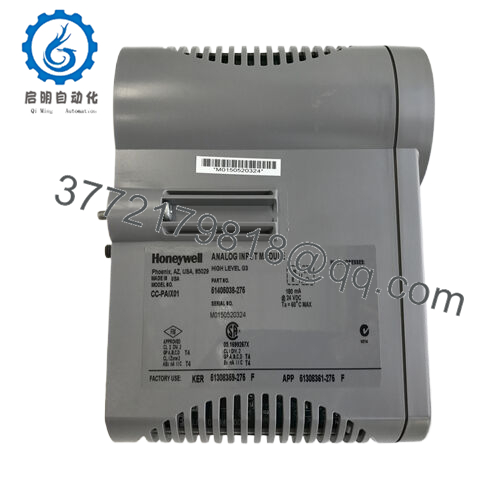

CC-PAIX01
Related products:
CC – PAOX01 – An analog output module that pairs perfectly with the CC – PAIX01 to form a complete control loop. It can be used to control valves, actuators, and other output devices based on the input signals processed by the CC – PAIX01, enabling precise control over industrial processes.
CC – PCIX01 – A digital input module that can be integrated with the CC – PAIX01 in mixed – signal systems. This allows for the monitoring of discrete signals, such as the status of switches and relays, in addition to the analog signals handled by the CC – PAIX01. Together, they provide a comprehensive solution for systems that require both analog and digital data acquisition.
CC – PDIX01 – A digital output module that works in tandem with the CC – PAIX01. It can be used to trigger alarms, activate emergency shutdowns, or control digital devices based on the analog input thresholds set in the system. This combination enhances the overall control and safety features of industrial automation setups.
CC – PAIX02 – A high – channel density variant of the CC – PAIX01, suitable for large – scale industrial applications that require a greater number of analog input connections. It offers the same high – performance features as the CC – PAIX01 but with an increased capacity to handle more sensors, making it ideal for complex industrial processes.
CC – PAIX51 – An isolated analog input module designed for use in systems with extremely high levels of electrical noise. In environments where EMI is a major concern, such as near high – voltage transformers or large – scale power distribution equipment, the CC – PAIX51 can provide enhanced noise immunity, ensuring accurate signal acquisition.
51304390 – 100 – A legacy analog input module that is compatible with older Honeywell TDC 3000 systems. It can be used as a stepping – stone for companies looking to upgrade their existing systems gradually. While it may not have all the advanced features of the CC – PAIX01, it can still serve as a reliable option during the transition phase.
CC – TCIX01 – A thermocouple input module that is specifically designed to work in conjunction with the CC – PAIX01 in high – temperature measurement applications. In industries such as steel manufacturing, glass production, and foundries, where accurate temperature monitoring is crucial, the CC – TCIX01 can accurately measure and convert thermocouple signals, providing valuable data for process control.
Installation and maintenance:
Before installing the Honeywell CC-PAIX01, it is essential to conduct a thorough compatibility check. Verify that the firmware of the target I/O rack is at least version 5.5 or higher to ensure full compatibility with the module. Honeywell provides a dedicated firmware compatibility tool on its official website, which should be regularly updated to reflect the latest requirements. Ensure that the mounting rack has sufficient clearance around the module to facilitate proper airflow. TheCC-PAIX01 generates heat during operation, and restricted cooling can lead to performance degradation and reduced lifespan. A minimum of 60mm of clearance above and below the module is recommended, especially in high – heat industrial environments. Thoroughly inspect the ControlNet and other communication connectors for any signs of damage or corrosion. Even a small amount of oxidation on the connectors can cause intermittent communication problems, disrupting the smooth operation of the system. If any issues are detected, clean the connectors using a suitable contact cleaner and a dry, lint – free cloth. When wiring the analog inputs, use high – quality, twisted – pair shielded cables. Ground the shield at both ends to maximize noise rejection, especially in areas with high levels of electromagnetic interference.
For ongoing maintenance, establish a regular inspection schedule. Check the module’s status LEDs on a weekly basis. A solid green LED indicates normal operation, while a flashing amber LED signals a minor fault, such as a low – input signal or a communication glitch. A flashing red LED indicates a more serious problem that requires immediate attention. Perform a visual inspection of the connectors and wiring every three months to ensure that they remain securely fastened. Vibration and movement in industrial environments can cause connections to loosen over time, leading to signal loss or intermittent operation. Calibrate the module annually using Honeywell’s official calibration software to maintain its high – level accuracy. Although theCC-PAIX01 is equipped with advanced drift compensation features, regular calibration is still necessary to account for any long – term changes in the module’s performance. Additionally, keep an eye on the module’s power consumption. An abnormal increase in power draw may indicate an internal problem, such as a component malfunction, and should be investigated promptly.
