The HIMA F3430 operates as a high-performance analog input module, designed to interface with HIMA F3 series safety controllers (such as the F3240) via the system’s high-speed backplane. Its primary function is to convert continuous analog signals from field sensors (4–20 mA or 0–10 V) into digital data that the controller can use to execute safety logic. What sets the HIMA F3430 apart is its advanced signal conditioning: each of its 8 channels features built-in filtering to suppress EMI and radio frequency interference (RFI), common in industrial environments with heavy machinery or variable frequency drives.
Model Number F3430
Brand HIMA
Type 8-Channel Analog Input Module
Input Voltage 5 V DC (module operation) from backplane
Operating Temp Range -40°C to +70°C (-40°F to +158°F)
Mounting Style Rack-mounted in HIMA F3 enclosures
Dimensions: 19.2 cm x 11.4 cm x 4.8 cm (7.5 in x 4.5 in x 1.9 in)
Weight: 2.3 kg (5.1 lb)
Interface/Bus HIMA F3 backplane (100 Mbps)
Compliance SIL 3 (IEC 61508/61511), CE, RoHS, ATEX, IECEx
Input Channels 8 differential analog channels
Signal Types 4–20 mA, 0–10 V
Resolution 16 bits
Accuracy ±0.1% of full scale (after calibration)
Sampling Rate 100 samples/second per channel
Filtering 2nd-order low-pass filter (adjustable cutoff: 1 Hz to 100 Hz)
Diagnostic Capabilities Open/short circuit detection; sensor drift monitoring; temperature drift compensation
Isolation Channel-to-channel: 2.5kV; Channel-to-backplane: 5 kV
Power Consumption 3.5W typical
Calibration User-configurable via SILWORX software; auto-calibration on power-up
Space Requirement4 TE
The HIMA F3430 operates as a high-performance analog input module, designed to interface with HIMA F3 series safety controllers (such as the F3240) via the system’s high-speed backplane. Its primary function is to convert continuous analog signals from field sensors (4–20 mA or 0–10 V) into digital data that the controller can use to execute safety logic. What sets the HIMA F3430 apart is its advanced signal conditioning: each of its 8 channels features built-in filtering to suppress EMI and radio frequency interference (RFI), common in industrial environments with heavy machinery or variable frequency drives.

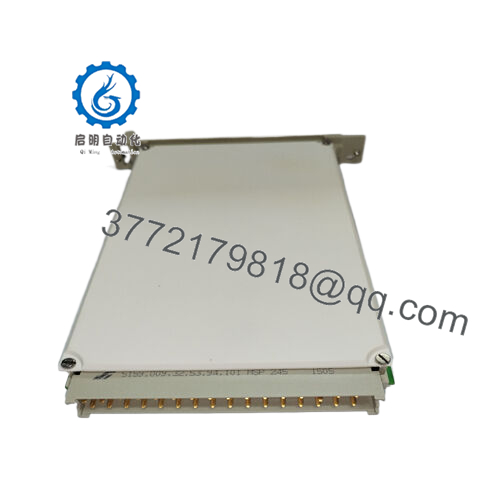

F3430
The module also incorporates temperature compensation, ensuring stable measurements even as ambient temperatures fluctuate between -40°C and +70°C. This is critical in applications like turbine control, where temperature changes can affect sensor output. Unlike basic analog modules, the HIMA F3430 includes diagnostic capabilities that monitor signal quality—flagging issues like sensor drift, open circuits, or short circuits—and transmits this data to the controller in real time. When paired with HIMA’s SILWORX software, it provides a detailed view of each channel’s performance, allowing engineers to validate sensor accuracy without manual calibration. Whether processing pressure signals in a pipeline or temperature data in a reactor, the HIMA F3430 ensures that analog inputs are both precise and reliable.

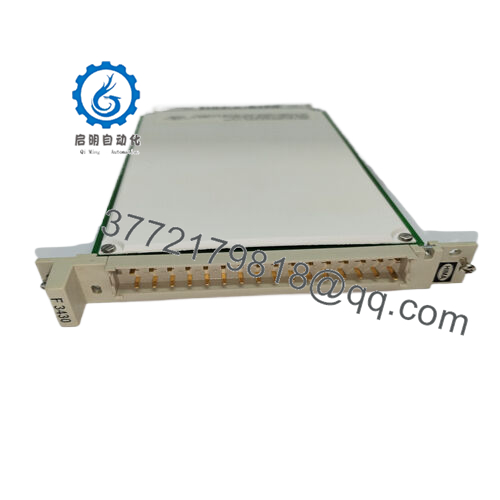

F3430
Technical specifications：
Model Number F3430
Brand HIMA
Type 8-Channel Analog Input Module
Input Voltage 5 V DC (module operation) from backplane
Operating Temp Range -40°C to +70°C (-40°F to +158°F)
Mounting Style Rack-mounted in HIMA F3 enclosures
Dimensions: 19.2 cm x 11.4 cm x 4.8 cm (7.5 in x 4.5 in x 1.9 in)
Weight: 2.3 kg (5.1 lb)
Interface/Bus HIMA F3 backplane (100 Mbps)
Compliance SIL 3 (IEC 61508/61511), CE, RoHS, ATEX, IECEx
Input Channels 8 differential analog channels
Signal Types 4–20 mA, 0–10 V
Resolution 16 bits
Accuracy ±0.1% of full scale (after calibration)
Sampling Rate 100 samples/second per channel
Filtering 2nd-order low-pass filter (adjustable cutoff: 1 Hz to 100 Hz)
Diagnostic Capabilities Open/short circuit detection; sensor drift monitoring; temperature drift compensation
Isolation Channel-to-channel: 2.5kV; Channel-to-backplane: 5 kV
Power Consumption 3.5W typical
Calibration User-configurable via SILWORX software; auto-calibration on power-up
Space Requirement4 TE
The HIMA F3430 delivers tangible benefits that directly impact safety and operational efficiency, starting with enhanced data integrity. Its precision signal processing ensures that analog inputs—whether from a pressure transmitter in a chemical reactor or a flow meter in an oil pipeline—are captured with ±0.1% accuracy. This level of precision is critical in safety applications where small signal variations can indicate emerging issues: a 0.5 mA increase in a 4–20 mA flow signal, for example, might signal a partial blockage that, if unaddressed, could lead to overpressure. By providing reliable data, the HIMA F3430 enables safety controllers to make informed decisions, reducing the risk of false shutdowns or missed hazards.
Another key advantage is reduced maintenance overhead. The module’s built-in diagnostics eliminate the need for manual calibration checks, which are time-consuming and often require system shutdowns. Instead, engineers can use SILWORX software to monitor drift trends across channels—if Channel 2 shows a consistent 0.3% deviation from baseline, it may indicate a failing sensor, allowing replacement during a scheduled outage. This proactive approach is especially valuable in remote locations, such as offshore platforms, where sending technicians for manual checks is costly and logistically challenging.
The HIMA F3430 also simplifies system integration. Its compatibility with HIMA’s F3 controller ecosystem means it can be added to existing safety systems without rewiring or reconfiguring racks. The module’s wide operating temperature range and robust isolation (2.5 kV between channels) make it suitable for harsh environments, from desert refineries to arctic pipelines, ensuring consistent performance where lesser modules would fail. For facilities aiming to upgrade their analog sensing capabilities, this versatility translates to lower engineering costs and faster deployment.

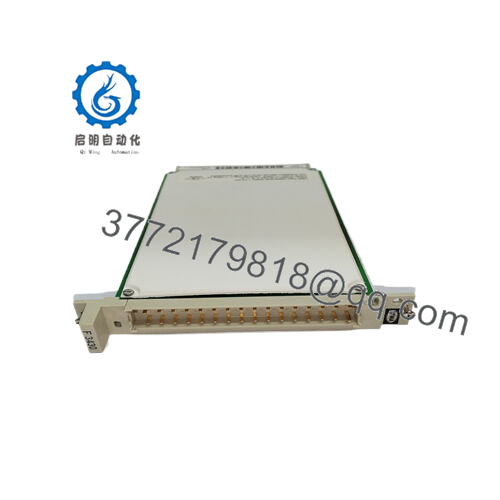

F3430
Application areas:
The HIMA F3430 excels in industries where analog signal accuracy is mission-critical, proving its value in applications that demand both precision and durability. In chemical processing plants, it is widely used to monitor reactor pressure and temperature, where even a 1% signal error could lead to incorrect safety logic execution. For example, in a batch reactor processing volatile chemicals, the module’s precise 4–20 mA signal conversion ensures that the safety system responds to subtle pressure increases—preventing overpressure events without triggering unnecessary shutdowns. Its EMI filtering is particularly valuable here, as motor-driven agitators and heating elements often generate electrical noise that can distort analog signals.
In power generation facilities, the HIMA F3430 monitors steam turbine parameters, including temperature and vibration, which are critical to safe operation. Its temperature compensation feature ensures accurate readings even as the turbine’s ambient temperature fluctuates during startup and shutdown cycles. The module’s isolation capabilities also protect sensitive safety controllers from voltage spikes common in power plant electrical systems, reducing the risk of damage during grid disturbances.
Oil and gas production platforms rely on the HIMA F3430 to process signals from subsea pressure sensors and pipeline flow meters. Here, its rugged design—resistant to humidity, salt spray, and vibration—ensures reliable operation in offshore environments. The module’s diagnostic features are invaluable for monitoring sensor health in remote subsea locations, where replacing a faulty transmitter is both expensive and time-consuming. In each of these settings, the HIMA F3430 demonstrates that precise analog signal processing is not just a technical specification but a cornerstone of safe, efficient operations.

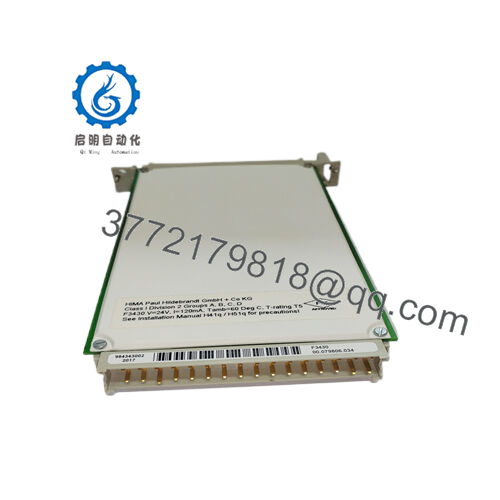

F3430
Related products:
HIMA F3431 – 16-channel high-density variant for applications requiring more analog inputs in limited rack space.
HIMA F3432 – Isolated analog input module with enhanced 5 kV channel-to-channel isolation for high-noise environments.
HIMA F3433 – Thermocouple-specific variant, designed to directly interface with type K/J thermocouples without external signal converters.
HIMA F3434 – RTD input module for precise temperature measurements using resistance temperature detectors.
HIMA F3430-EX – Explosion-proof version certified for Zone 1 hazardous areas, with reinforced housing and sealing.
HIMA F3420 – Legacy analog input module, compatible with older F3 controllers (upgrade path to F3430 available).
HIMA F3435 – Redundant analog module with dual backplane connections for 24/7 operations where downtime is not an option.
Installation and maintenance:
Before installing the HIMAF3430, verify that the host F3 controller’s firmware is version 6.0 or higher to ensure full compatibility with the module’s diagnostic features. Check the backplane for a 4 TE slot with at least 30 mm of vertical clearance to accommodate airflow—adequate cooling is critical, as signal conditioning components generate moderate heat. Confirm that field wiring is shielded and properly grounded to maximize the effectiveness of the module’s EMI filtering; unshielded cables can introduce noise that overwhelms even advanced filtering.
For ongoing maintenance, leverage the HIMA F3430’s diagnostic data to create a targeted schedule. Monthly, review SILWORX logs to track drift across channels—consistent deviations from baseline may indicate sensor degradation or wiring issues. Quarterly, perform a functional test by injecting a known test signal (4 mA, 12 mA, 20 mA) into each channel to verify accuracy; this ensures the module’s internal circuitry hasn’t drifted. Unlike some analog modules, the HIMA F3430 features auto-calibration on power-up, but annual manual calibration is recommended for applications requiring traceability to NIST standards. Inspect the module’s backplane connector annually for corrosion, especially in humid environments, as poor connections can introduce signal noise.
