GE WESDAC D20A0511-01010 Analog Input Module (WESDAC D20 DCS Compatible)

Description

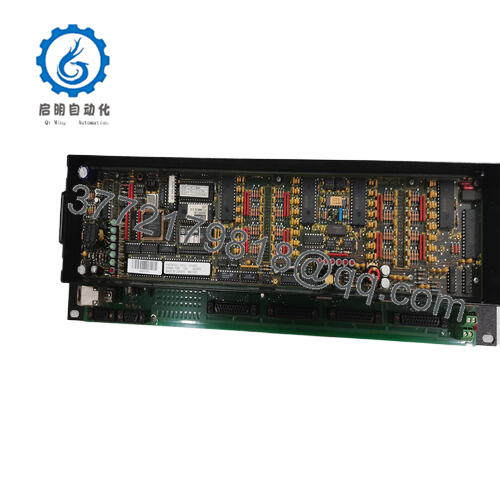

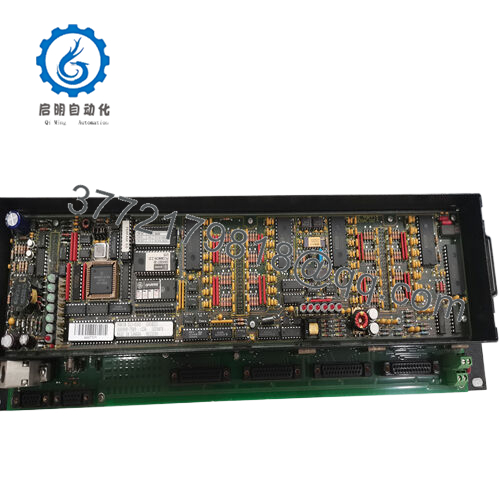

WESDAC D20A0511-01010

The GE WESDAC D20A0511-01010 functions as a critical signal interface between field sensors and the WESDAC D20 DCS, fitting into the D20’s I/O rack architecture as a dedicated analog input module. Designed to match the form factor and electrical specifications of original WESDAC modules, it mounts directly into standard D20 I/O racks (compatible with both single and redundant rack configurations) and communicates with D20 controllers via the system’s proprietary backplane bus—no hardware modifications or custom adapters required. Its primary role is to convert 8 channels of analog sensor signals (e.g., 4-20 mA current loops, 0-10 V voltage signals) into digital data that the D20 controller can process for control logic, alarms, and data logging. What sets the GE WESDAC D20A0511-01010 apart from outdated alternatives is its enhanced signal stability: it includes built-in signal conditioning (low-pass filtering) to reduce noise from industrial environments (e.g., motor harmonics, electrical transients) and precision reference voltage regulators to minimize drift—ensuring accurate readings even over long operating cycles.

WESDAC D20A0511-01010

It also adds basic diagnostic features, such as overrange/underrange detection, which triggers alerts in the D20 HMI to notify engineers of sensor failures or wiring issues. For teams managing legacy DCS systems, this means the GE WESDAC D20A0511-01010 delivers the reliability of a new module with the familiarity and compatibility of the original WESDAC design.

Main features and advantages:

Choosing the GE WESDAC D20A0511-01010 delivers tangible value by extending the lifespan of WESDAC D20 systems while avoiding the cost of a full DCS replacement. For a mid-sized water treatment plant, replacing the entire D20 system could cost upwards of $500,000—whereas upgrading to the GE WESDAC D20A0511-01010 allows the plant to maintain existing infrastructure, training, and software while improving signal reliability. The module’s precision also directly impacts operational efficiency: in a chemical processing facility, accurate analog readings (e.g., pH, flow rate) from the GE WESDAC D20A0511-01010 enable tighter control of reactions, reducing raw material waste by up to 8% compared to drifting legacy modules.

Another key benefit is regulatory compliance. Many industries (e.g., power generation, oil and gas) require certified components for emissions monitoring or safety systems. The GE WESDAC D20A0511-01010 is factory-tested to meet WESDAC D20 performance standards, ensuring that data from critical sensors (e.g., NOx emissions, pressure relief valve status) is accurate and auditable—avoiding fines or compliance violations. Its backward compatibility also simplifies maintenance: engineers familiar with the original WESDAC modules can install and configure the GE WESDAC D20A0511-01010 without additional training, reducing downtime during upgrades. For 24/7 operations like wastewater treatment plants, this means faster module swaps and minimal disruption to processes that cannot be easily shut down.

Application fields:

The GE WESDAC D20A0511-01010 is deployed exclusively in facilities operating GE WESDAC D20 DCS systems, with a focus on industries where legacy control infrastructure remains critical. In power generation—specifically coal, gas, and hydroelectric plants—it’s used to monitor key boiler and turbine variables: its 8 channels read feedwater pressure, steam temperature, and generator cooling system flow rates, providing the D20 controller with data to optimize efficiency and prevent equipment overheating. In municipal water treatment, the module integrates with D20 systems to measure chemical dosage levels (e.g., chlorine, fluoride) and water turbidity, ensuring compliance with EPA drinking water standards and preventing over-chemicalization (which reduces costs and environmental impact). It also finds application in industrial boilers and steam systems (e.g., food processing, paper manufacturing), where it monitors boiler water level and pressure—its signal stability preventing false alarms that could trigger unnecessary shutdowns. In all these use cases, the GE WESDAC D20A0511-01010 excels at delivering reliable analog data in legacy DCS environments, ensuring that critical processes remain controlled and compliant.

Related products:

GE WESDAC D20A0511-01020 – 4-channel analog input variant for smaller-scale WESDAC D20 applications (e.g., auxiliary systems).

GE WESDAC D20A0521-01010 – Analog output module (8 channels) for pairing with GE WESDAC D20A0511-01010 to complete input/output loops in D20 systems.

GE WESDAC D20D0511-01010 – Digital input module (16 channels) for WESDAC D20, ideal for monitoring switch states alongside analog data.

GE WESDAC D20A0511-01000 – Legacy predecessor of the GE WESDAC D20A0511-01010; compatible but lacks enhanced noise filtering.

GE WESDAC D20R0101-01010 – Redundant I/O rack controller for WESDAC D20, ensuring failover protection when paired with GE WESDAC D20A0511-01010.

GE WESDAC D20A0511-01030 – High-isolation variant (5 kVrms) for WESDAC D20 systems in high-voltage environments (e.g., substation control).

GE WESDAC D20A0541-01010 – Mixed-signal module (4 analog input + 4 analog output) for space-constrained D20 I/O racks.

Installation and maintenance:

Before installing the GE WESDAC D20A0511-01010, verify that the WESDAC D20 I/O rack is compatible with 1/4-width modules and that the rack’s backplane firmware is updated to version 2.2 or higher—older firmware may not recognize the module’s diagnostic features. Power down the I/O rack completely before installation: the WESDAC D20 backplane is not hot-swappable, so live insertion can damage both the module and the rack. Check the external power supply if powering sensors directly from the module: ensure the +24 V DC supply is regulated and fused (1A max) to prevent overloads from shorted sensors. Prior to wiring, use the D20 configuration software (e.g., WESDAC D20 Configurator) to set each channel’s input type (4-20 mA, 0-10 V, etc.)—this ensures the module interprets sensor signals correctly. Label wiring clearly: each channel’s terminal block should be marked to match the corresponding sensor (e.g., “Boiler Temp #1”) to simplify troubleshooting later.

For ongoing maintenance, conduct monthly checks of the module’s status LEDs (located on the front panel): a solid green LED indicates normal operation, while a flashing red LED signals an overrange/underrange fault on one or more channels. Use the D20 HMI to pull diagnostic logs and identify the specific faulty channel—this avoids the need to test each sensor individually. Inspect wiring connections quarterly for corrosion or loose terminals, especially in humid environments (e.g., water treatment plants): clean terminals with a dry cloth and tighten screws to prevent intermittent signal loss. Every six months, calibrate the module using a precision signal generator: inject known values (e.g., 12 mA for a 4-20 mA channel) and verify that the D20 controller displays the correct reading—adjust the module’s calibration trim pots if needed (per GE’s calibration guide). If the module fails, replace it with another GE WESDAC D20A0511-01010 to maintain compatibility; avoid mixing with non-GE modules, as they may cause backplane communication issues.
