GE VMIVME7740-841 High-Bandwidth VMEbus Communication Gateway Module

Description

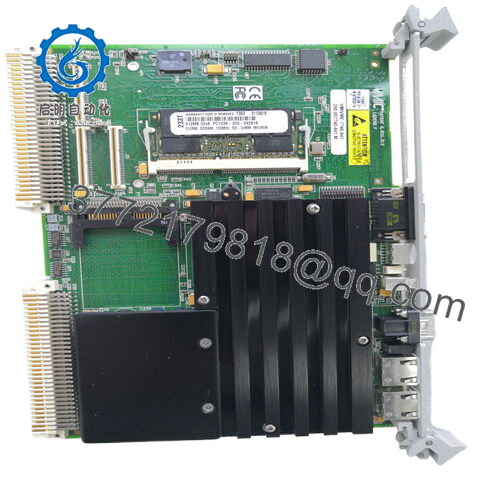

VMIVME7740-841

The GE VMIVME7740-841 acts as a high-speed “data conduit” in VMEbus automation stacks, sitting between VME backplane devices (CPUs, I/O modules) and data-hungry external systems—such as real-time analytics platforms, cloud databases, or high-speed industrial networks. It communicates with the VME backplane via a native VME64x interface, supporting 32/64-bit transfers at up to 320MB/s, ensuring it can pull data from VME modules as fast as the backplane allows. What sets it apart is its enhanced network processing: a quad-core ARM Cortex-A9 processor (up from dual-core in standard models) that handles simultaneous data streams across four 1Gbps Ethernet ports—enough to support up to 2000 analog sensor readings per second or 4K video feeds from industrial cameras, all with latency under 150µs.

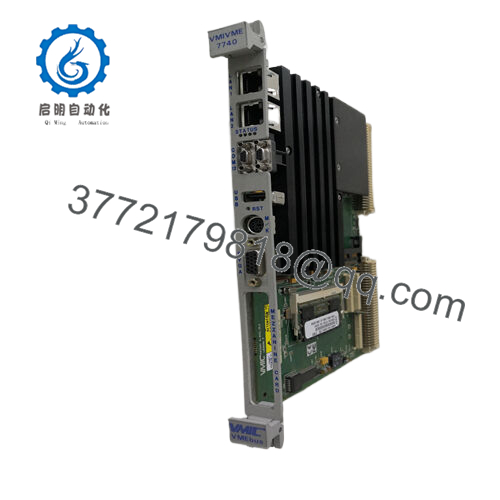

VMIVME7740-841

This low latency is critical for applications like semiconductor wafer inspection, where real-time data from VME-based motion controllers must reach PROFINET-enabled vision systems instantly to adjust positioning. The GE VMIVME7740-841 also includes 2GB of DDR3 RAM for data buffering—double the capacity of standard gateways—preventing data loss during network congestion (e.g., peak test cycles in aerospace labs). It supports the same broad range of protocols as its sibling (Ethernet/IP, PROFINET IRT, Modbus TCP/IP, DNP3, MQTT) but with enhanced protocol prioritization, letting engineers assign higher bandwidth to time-sensitive streams (e.g., test data) over less critical ones (e.g., status updates). Integration with GE Proficy software simplifies configuration: engineers can map VME backplane data to network tags, monitor port bandwidth usage, and set up automated alerts for bandwidth spikes—all through a intuitive interface.

VMIVME7740-841

Main features and advantages:

Choosing the GE VMIVME7740-841 delivers tangible value for data-intensive VME systems. For engineers in aerospace or automotive testing, its four 1Gbps ports eliminate the need for multiple gateways—you can stream test data to a local analytics server, send a copy to the cloud for long-term storage, and maintain a connection to a SCADA system, all simultaneously, without bandwidth degradation. This reduces hardware costs by 40–50% compared to deploying multiple standard gateways and simplifies cabling and maintenance. The module’s quad-core processor also future-proofs your system: as data volumes grow (e.g., adding more sensors to a test rig), the GE VMIVME7740-841 can handle the increased load without performance drops, avoiding costly upgrades.

Engineered for harsh industrial and test environments, the GE VMIVME7740-841 meets MIL-STD-810H for shock and vibration—critical for aerospace test facilities where equipment is moved or exposed to mechanical stress. Its extended temperature range ensures reliable operation in desert-based solar test sites or arctic research facilities, where extreme temperatures can disable less robust gateways. Built-in diagnostics include real-time bandwidth monitoring and port error logging, letting engineers identify bottlenecks (e.g., a saturated Ethernet port) before they cause data loss. For example, in a power grid control center, the module can alert operators if a port handling IEC 61850 data reaches 90% capacity, allowing proactive adjustments to prevent delays in substation monitoring.

VMIVME7740-841

Application fields:

The GE VMIVME7740-841 excels in industries where high-bandwidth, low-latency communication is non-negotiable. In aerospace and defense, it’s used in aircraft engine test cells: it streams data from hundreds of VME-connected sensors (measuring temperature, pressure, and vibration) to real-time analytics platforms via PROFINET IRT, enabling engineers to monitor engine performance during test cycles and detect anomalies instantly. Its four 1Gbps ports let test teams send data to a local server for immediate analysis and to a cloud database for long-term trend tracking—all without compromising speed.

In semiconductor manufacturing, the GE VMIVME7740-841 connects VME-based wafer inspection systems to Ethernet/IP-enabled robotics, transmitting high-resolution image data and motion control commands simultaneously. Its low latency (under 150µs) ensures robots adjust positioning in real time to correct for wafer misalignment, reducing defects.

In large-scale renewable energy plants—such as utility-scale solar farms—it links VME-based inverter controllers to a plant-wide SCADA system via DNP3, streaming high-volume data on power output, panel temperature, and grid voltage. Its redundant Ethernet ports ensure communication remains intact even if one port fails, critical for maintaining visibility into plant operations.

VMIVME7740-841

Related products:

• GE VMIVME-7740-840 350-07740-840-M– Standard bandwidth variant (2x 1Gbps, 2x 100Mbps ports) for less data-intensive VME systems (e.g., water treatment plants).
• GE VMIVME7740-841-W– Wireless-enabled version (Wi-Fi 6 + 5G) for remote data-intensive sites (e.g., offshore wind turbine test facilities with no wired Ethernet).
• GE VMIVME7740-841-S– Secure-focused model (FIPS 140-3 compliance) for government test facilities handling sensitive data (e.g., military vehicle testing).
• GE VMIVME7459– VMEbus CPU module fully compatible with the GE VMIVME7740-841, providing control logic for VME backplane data.
• GE VMIVME-7698-345 350-017698-345 B– High-density VME I/O module that pairs with the gateway to stream analog/digital data at high speeds.
• GE VMIVME6500– VMEbus power supply module designed to handle the GE VMIVME7740-841’s 28W max power draw.
• GE VMIVME5010– VMEbus backplane extender, allowing the GE VMIVME7740-841 to connect to VME modules in remote card cages (up to 100m) via fiber optic cable.
• GE Proficy Historian– Data management software optimized for use with the GE VMIVME7740-841, enabling high-speed storage and analysis of VME system data.

Installation and maintenance:

Before installing the GE VMIVME7740-841, verify your VMEbus backplane is VME64x-compliant—older VME32 backplanes can’t support the module’s full 320MB/s backplane transfer speed, limiting data throughput. Check the backplane’s power capacity: the gateway draws up to 28W, so use a compatible power supply (e.g., GE VMIVME6500) and confirm the backplane can handle the additional load (GE’s backplane power calculator tool simplifies this). Update your VME CPU’s firmware (e.g., GE VMIVME7459) to the latest version (via GE’s Digital Support Portal)—outdated firmware can cause backplane communication delays that negate the module’s high-speed benefits.

For physical installation, ensure the VME card cage has adequate cooling: the GE VMIVME7740-841 generates more heat than standard gateways (due to its quad-core processor and 1Gbps ports), so maintain 30mm of clearance above and below to prevent thermal throttling. Use Cat6a Ethernet cables for all ports—lower-grade cables (e.g., Cat5e) can’t support 1Gbps speeds over distances beyond 50m, leading to bandwidth loss. Label each port by function (e.g., “Test Data – Port 1,” “Cloud – Port 2”) to simplify troubleshooting, and use a cable tester to verify each connection before powering on—faulty cables are the most common cause of initial speed issues. Always use anti-static wrist straps when handling the module to protect its network processing circuitry.

For ongoing maintenance, inspect the module’s front-panel LEDs weekly: steady green “POWER” and “BACKPLANE” lights confirm normal operation, while blinking green “ETHERNET” lights indicate active 1Gbps traffic (a solid yellow light means a port is operating at 100Mbps, signaling a cable or network issue). Review bandwidth usage logs monthly via GE Proficy software to identify trends—consistently high utilization (over 90%) on a port may mean you need to redistribute data across other ports. Every 3 months, clean the Ethernet ports with compressed air to remove dust, which can cause intermittent connectivity. When GE releases firmware updates for the GE VMIVME7740-841, apply them during scheduled downtime—updates often include performance optimizations for high-speed protocols (e.g., PROFINET IRT) or new security features.
