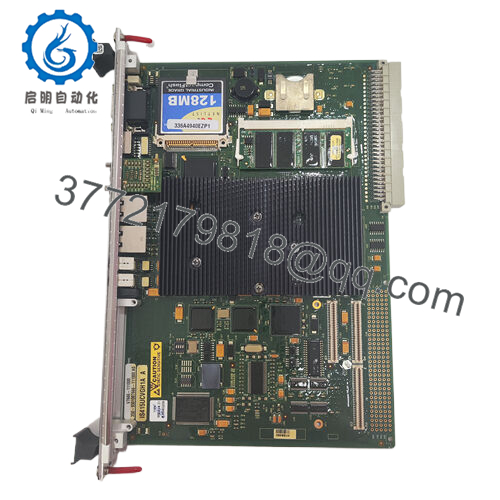

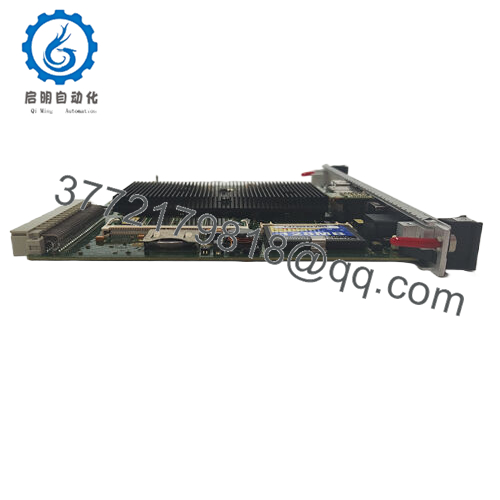

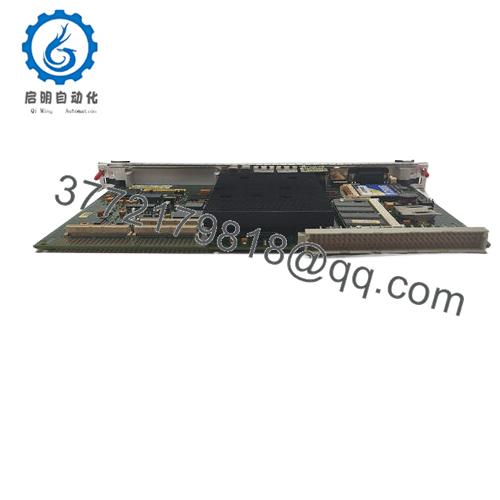

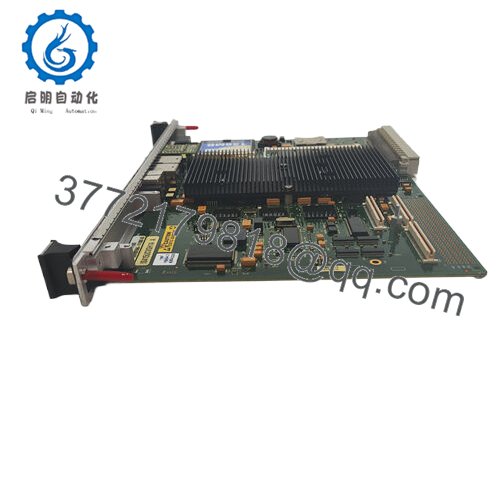

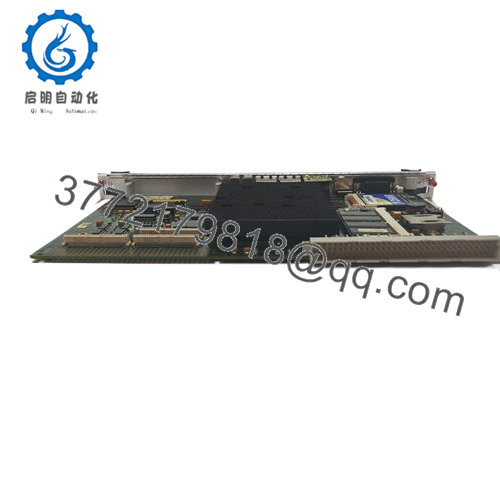

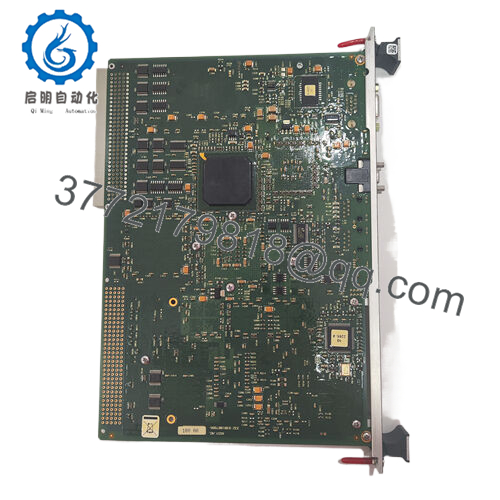

GE IS415UCVGH1A V7666-111000 VME controller card

Description

GE IS415UCVGH1A V7666-111000 serves as the nerve center of the gas turbine control system, playing a crucial role in coordinating various operations. As a single slot VME controller card, it interfaces with different components in the turbine control settings, receives data from sensors, processes it, and sends control signals to actuators.

IS415UCVGH1A V7666-111000

The card is equipped with an Intel ultra-low voltage Celeron 650 MHz processor, which can easily handle complex computing and data processing tasks. It is equipped with 128 MB of synchronous dynamic random access memory (SDRAM), providing sufficient memory for storing and quickly accessing critical data during operation. The two 10BaseT/100BaseTX (RJ-45 connection) Ethernet ports on the card are the key to its connectivity. The first Ethernet connection enables point-to-point communication and configuration with the Universal Data Highway (UDH), allowing seamless data exchange within the control network. The second Ethernet port provides flexibility and can be used for dedicated Ethernet Global Data (EGD) networks or for Modbus communication on different IP logical subnets. The configuration of this port is completed using a dedicated toolbox. Every time the control rack is powered on, the controller card automatically verifies whether the toolbox configuration matches the installed hardware, ensuring that all settings are correct and up-to-date.

IS415UCVGH1A V7666-111000

Main features and advantages:
From a physical structure perspective, this card is designed to adapt to standard VME based control racks, making it a convenient choice for both new installations and upgrades to existing gas turbine control systems. Its compact size maximizes the use of available space inside the control cabinet, while its sturdy structure ensures reliable operation even in harsh industrial environments.

Its high-speed processor and sufficient memory enable faster data processing, thereby providing more precise control over the operation of gas turbines. This helps improve turbine efficiency, reduce fuel consumption, and decrease emissions. For example, in a power plant, the precise control provided by the controller card can significantly increase the overall power generation while minimizing the impact on the environment.

The card’s multiple Ethernet ports enhance connectivity and allow seamless integration with other industrial systems. This enables better monitoring and control of gas turbines from a central location, reducing the need for on-site manual intervention. The automatic configuration verification during power on also reduces the risk of human error causing failures and improves the overall reliability and availability of the system.

IS415UCVGH1A V7666-111000

Technical specifications:
Model IS415UCVGH1A V7666-111000
Brand General Electric
Type VME controller card
Series Mark VI
Microcomputer Intel Ultra Low Voltage Celeron 650 MHz
Memory 128 MB SDRAM
Operating System QNX
Connect two 10BaseT/100BaseTX (RJ-45) ports via Ethernet
Power requirement+5V DC
Working temperature: 0 ° C to 70 ° C
Bus interface VME

Contact Us
Phone:+86 16626708626
WeChat/WhatsApp:+86 16626708626
Email: 3772179818@qq.com

IS415UCVGH1A V7666-111000

Application areas:
In power plants, it controls the operation of gas turbines to ensure stable and efficient electricity production. It adjusts the fuel air mixture ratio, monitors turbine speed, and manages other key parameters to maintain optimal performance.

In oil and gas refineries, this card plays a critical role in controlling gas turbines used for compression and pumping operations. It helps maintain the correct pressure and flow rate, ensuring smooth and safe processing of oil and gas.
In addition, in industrial manufacturing facilities, if gas turbines are used for power generation or process heating, IS415UCVGH1A V7666-111000 can ensure the reliable and efficient operation of these turbines, thereby improving the overall production efficiency of the factory.

IS415UCVGH1A V7666-111000

Installation and maintenance:
Before installing GE IS415UCVGH1A V7666-111000, it is essential to verify the compatibility of the card with the existing VME based control system. Ensure that the power supply meets the requirements of the card and that there are available slots in the control rack. Carefully read the installation manual to understand the correct installation and connection procedures.

During the installation process, handle the card carefully to avoid electrostatic discharge, which may damage sensitive components. Connect Ethernet cables correctly according to recommended wiring practices. Configure the card using the provided toolbox and set parameters such as IP address, communication protocol, and data transmission rate according to the specific requirements of the gas turbine control system.

For continuous maintenance, regularly monitor the performance of the card through diagnostic tools in the control system. Check for signs of overheating, such as abnormal temperature readings or fan failure. Regularly update the firmware of the card to benefit from the latest performance improvements and error fixes provided by GE. If any problems arise, please refer to the user manual or contact GE’s technical support team for assistance.

IS415UCVGH1A V7666-111000
