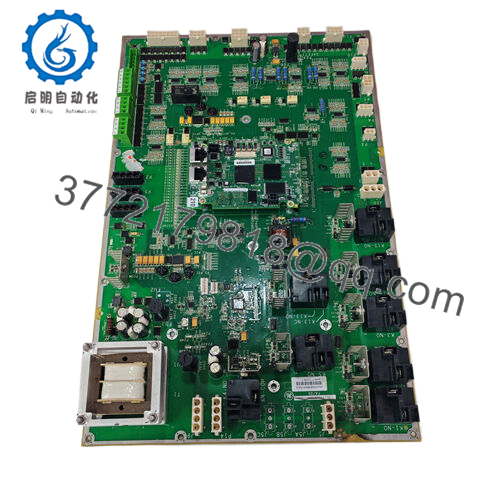

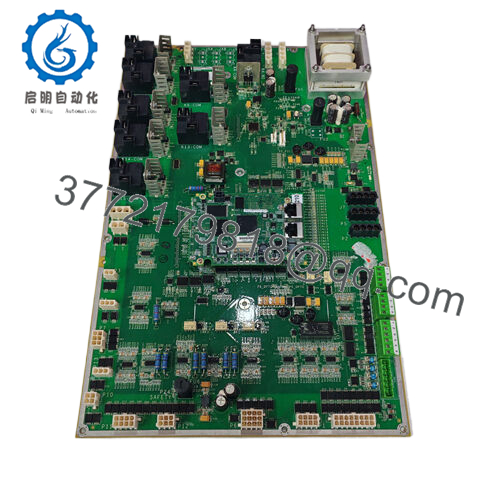

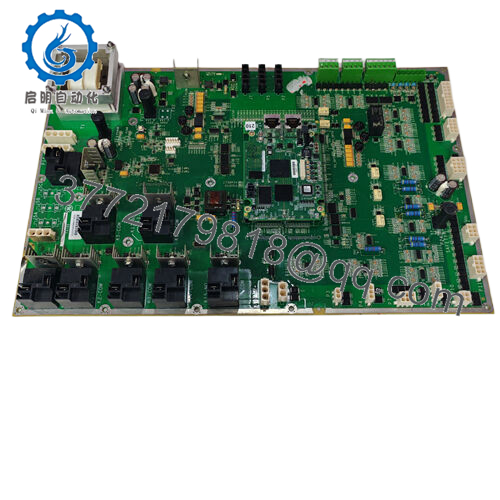

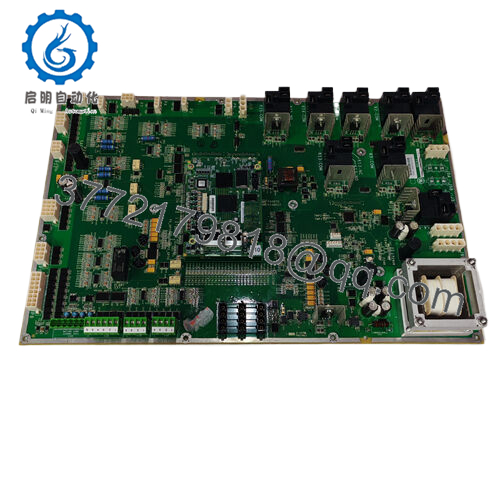

GE IS200WEMAH1AEA is a high-performance printed circuit board that is an important component of GE’s highly acclaimed Mark VI and Mark VIe turbine control systems. As a key component in these systems, it serves as a terminal board specifically designed for signal connection and distribution.
IS200WEMAH1AEA
In the architecture of Mark VI and Mark VIe systems, GE IS200WEMAH1AEAserves as the communication hub. It aims to interface with various field devices including sensors, actuators, and relays. The signals from these devices are received by the circuit board, processed, and routed to the corresponding parts of the control system. On the contrary, control commands from the central processing unit are transmitted to the field devices through GE IS200WEMAH1AEA, enabling them to perform specified functions.
IS200WEMAH1AEA
Main features and advantages:
One of the most prominent features of GE IS200WEMAH1AEA is its multi-channel signal processing capability. It can support a large number of input and output channels, and can simultaneously connect numerous sensors and actuators. This not only enhances the control capability of the system, but also provides greater flexibility for system design. For example, in complex industrial equipment with multiple monitoring points and control components, GE IS200WEMAH1AEA can manage all relevant signals without error.
This circuit board has been carefully designed to provide precise signal transmission and distribution. It is equipped with high-quality circuits that can minimize signal interference and distortion to the greatest extent possible. This ensures accurate and reliable data transmission between on-site equipment and control systems. In applications such as steam turbine control, even small deviations in signals can lead to serious consequences, so this accuracy is crucial.
The GE IS200WEMAH1AEA also features a robust hardware design. It is made of industrial grade materials and can withstand harsh conditions such as high temperature, vibration, and electromagnetic interference commonly found in industrial environments. The three proof coating of the circuit board can protect its components from dust, moisture, and chemical pollutants, further improving its durability and reliability. This sturdy structure means it can operate continuously under harsh conditions without performance degradation, thereby reducing the need for frequent maintenance and replacement.
Another advantage of GE IS200WEMAH1AEA is its support for hot swapping. This feature allows for the replacement or addition of circuit boards without shutting down the entire control system. This is extremely advantageous in industrial environments that require minimizing downtime to the greatest extent possible. Engineers can quickly replace faulty circuit boards or add new ones to expand system functionality, while industrial processes can still run smoothly.
IS200WEMAH1AEA
Technical specifications:
Model IS200WEMAH1AEA
Brand GE
Type Printed Circuit Board (Terminal Board)
Working temperature range -30 ° C to 70 ° C
Interface supports connection with various sensors, actuators, and relays
Multiple input and output channels for signal channels
High precision signal transmission and distribution with high signal accuracy
Hardware durability industrial grade materials, three proof coating
Hot swappable support is
Contact Us
Phone:+86 16626708626
WeChat/WhatsApp:+86 16626708626
Email: 3772179818@qq.com
IS200WEMAH1AEA
Application areas:
Taking gas turbine power plants as an example, GE IS200WEMAH1AEA is the core component of the control system, serving as a crucial link between the central control unit and numerous on-site devices. It is connected to sensors that monitor parameters such as temperature, pressure, and speed of gas turbines. By accurately transmitting sensor data to the control system and transmitting control signals back to the actuators, the gas turbine is ensured to operate at optimal efficiency. Any deviation in the operation of gas turbines can lead to serious power loss and even equipment failure, therefore the reliability of GE IS200WEMAH1AEA is indispensable.
In steam turbine driven power plants, GE IS200WEMAH1AEAalso plays a similar role. It is responsible for managing the complex signal network involved in the operation of steam turbines, from controlling steam valves to regulating the synchronization between generators and the power grid. This is crucial for maintaining a stable power supply to meet the constantly fluctuating demands of industry and consumers.
The field of hydroelectric power generation also benefits from GE IS200WEMAH1AEA. In hydroelectric power plants, precise control of water flow and pressure is required to optimize power generation efficiency, and this circuit board ensures smooth communication between the components of the control system. It can efficiently process and distribute signals related to turbine speed, blade angle adjustment, and generator load control to address the unique challenges faced by hydroelectric devices, such as changes in water level and flow rate.
In addition to the power generation field, GE IS200WEMAH1AEA is used to manage control signals for motors, pumps, and other critical equipment in industrial manufacturing plants for large automated machinery. For example, in large chemical plants, it can be used to control pumps that transport various chemicals. By providing accurate signal transmission, it helps prevent leaks, ensure normal chemical reactions, and maintain the safety and efficiency of the entire manufacturing process.
IS200WEMAH1AEA
Related products:
IS200WETAH1AEC – a related circuit board in the GE product line that may have similar functionality, but may have been optimized for different application requirements or environmental conditions. It can be used in parallel with GE IS200WEMAH1AEA to expand the overall signal processing capability of the system.
IS200EMIOH1A – This module can work in conjunction with GE IS200WEMAH1AEA to enhance the input/output capabilities of the control system. They can jointly manage more signals from different sources, thereby improving overall control and monitoring of industrial processes.
IS200ACLAH1A – Interact with GE IS200WEMAH1AEA to coordinate and manage control functions at a higher level. It helps to integrate the signals processed by GE IS200WEMAH1AEA into the overall control strategy of industrial processes.
IS200AVIFH1A – a bridging interface module that can be connected to GE IS200WEMAH1AEA to facilitate communication between different parts of the control system. It can enhance connectivity options and improve signal flow within the system.
IS200BICMH1A – an IGBT gate driver module that can be used in conjunction with GE IS200WEMAH1AEA in applications involving power control and motor drive functions. These two modules can work together to ensure the normal operation of high-power electrical components.
IS200DSCBH1A – a rail type terminal board that can be integrated with GE IS200WEMAH1AEA to expand the physical connection points of field devices. This is very useful in situations where more devices need to be connected to the control system.
IS200FOSAG1A – a fiber optic I/O module that can be paired with GE IS200WEMAH1AEA to achieve high-speed and reliable communication through fiber optic cables. This is very beneficial in applications that require long-distance signal transmission or resistance to electromagnetic interference.
Installation and maintenance:
Before installing GE IS200WEMAH1AEA, the installation site must be thoroughly prepared. Ensure that the control cabinet is clean, free of dust and debris, and has sufficient space to accommodate the circuit board. The installation surface should be stable and properly grounded to prevent electrical interference. When connecting the circuit board to other components of the control system, please carefully follow the wiring diagram provided in the product documentation. Carefully check all connections to ensure they are secure, as loose connections may result in signal loss or intermittent operation.
For maintenance, it is recommended to conduct regular visual inspections. Check the printed circuit board for any physical signs of damage, such as cracks, loose components, or signs of overheating. Check the status of the connector to ensure it is not corroded. Regular signal diagnosis should also be conducted to verify whether the circuit board accurately processes and transmits signals. GE may occasionally release firmware updates to improve circuit board performance, fix vulnerabilities, or add new features. Be sure to stay informed of these released information in a timely manner and carefully follow the manufacturer’s guidelines when applying any updates. Always backup all relevant data and configurations before performing updates to avoid any potential data loss. If a malfunction occurs, please refer to the troubleshooting section in the product manual. If the problem persists, please contact GE’s technical support team for further assistance.
