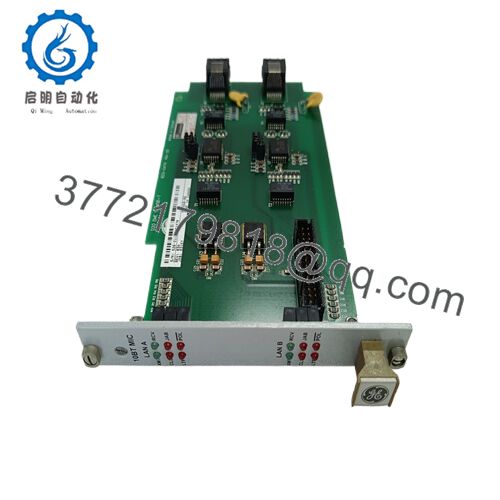

GE D20 EME 10BASE-T is a high-performance motion control module that is a critical component of the industrial automation ecosystem. It is connected to programmable logic controllers (PLCs), human-machine interfaces (HMIs), and other control devices through a D20 EME 10BASE-T Ethernet interface. This standard based connection enables reliable and high-speed data transmission, promoting seamless communication between digital control signals and the mechanical actuators under supervision. module
GE D20 EME 10BASE-T
After receiving control commands from the central control system, General Electric D20 EME 10BASE-T utilizes advanced motion control algorithms to process these instructions. It can perform precise positioning, speed control, and torque control on multiple axes simultaneously. The D20 EME 10BASE-Tinterface ensures efficient and accurate transmission of data related to these control operations and real-time feedback from actuators. This module also has built-in diagnostic functions that can monitor the performance of the motion control system and send status updates and error notifications through a D20 EME 10BASE-T connection. In the automation architecture, General Electric D20 EME 10BASE-Tis located at the intersection of control and execution, serving as a reliable bridge to align the physical motion of machinery with digital control commands, achieving seamless operation of the entire industrial automation system.
GE D20 EME 10BASE-T
Technical specifications:
Model D20 EME 10BASE-T
Brand General Electric (GE)
Type of motion control module
Input voltage 200-240 VAC
Working temperature range: 0 ° C to 50 ° C
Installation method: Rack mounted installation
Dimensions 180mm x 100mm x 80mm
Weight 0.8 kg
Interface/Bus 10BASE-T Ethernet
Compliance with CE and RoHS
Supports protocols Modbus TCP, Ethernet based Profibus, EtherCAT
Axis control up to 8 axes
Data transmission rate 10 Mbps
Contact Us
Phone:+86 16626708626
WeChat/WhatsApp:+86 16626708626
Email: 3772179818@qq.com
GE D20 EME 10BASE-T
Main features and advantages:
This module is designed for durability and reliability, capable of withstanding the harsh conditions of continuous industrial operation, significantly reducing the frequency of failures, and minimizing unplanned downtime. This directly translates into increased productivity and reduced long-term maintenance costs.
This module adopts theD20 EME 10BASE-Tstandard to ensure stable and consistent data transmission, which is crucial for precise motion control. In precision critical applications, such as the manufacturing of high-tech components, General ElectricD20 EME 10BASE-Tcan minimize errors caused by inconsistent motion, thereby improving product quality and customer satisfaction. It seamlessly integrates with existing D20 EME 10BASE-Tcompatible control and drive systems, simplifying automation settings, reducing engineering costs, and system debugging time. The built-in diagnostic function combined with reliable D20 EME 10BASE-T communication enables proactive maintenance, allowing engineers to detect and resolve potential issues before they escalate, further improving system uptime and overall reliability.
GE D20 EME 10BASE-T
Application areas:
In the field of automobile manufacturing, it is used to control the movement of robotic arms on assembly lines. These robotic arms are responsible for tasks such as precise welding, painting, and component installation. The stable data transmission provided by the D20 EME 10BASE-T interface ensures that the robotic arm can accurately and timely receive control commands, improving the speed and quality of automotive production.
In the pharmaceutical industry, due to the need for high-precision motion control in handling precision equipment and strict regulatory requirements, General Electric D20 EME 10BASE-Ts used to operate machinery in drug formulation, filling, and packaging processes. The consistent data communication achieved through D20 EME 10BASE-Tensures that these processes are carried out with extremely high accuracy, ensuring product quality and compliance. In addition, in large-scale logistics and warehousing operations, this module is used to manage the movement of Automated Guided Vehicles (AGVs) and conveyor systems. The reliable D20 EME 10BASE-T connection enables seamless coordination between these mobile components, optimizing the efficiency of material handling processes.
Related products:
General Electric D20 EME 100BASE-TX: Provides a higher data transfer rate of 100 Mbps, suitable for situations that require faster communication and wider data processing.
General Electric D15 EME 10BASE-T: equipped with basic motion control functions, suitable for small-scale or low demand automation tasks with a data rate of 10 Mbps that is sufficient for 10BASE-T.
General Electric D20 EME-H 10BASE-T: With enhanced heat dissipation capabilities and a 10BASE-T interface, designed specifically for applications involving continuous high load operation and stable data transmission.
General Electric D20 EME-R 10BASE-T: a redundant model equipped with dual 10BASE-T channels, providing higher reliability and ensuring uninterrupted motion control and data communication in the event of component failure.
General Electric D20 EME-S 10BASE-T: Designed specifically for high-speed motion control applications, combining the 10BASE-T standard with faster response time and higher acceleration/deceleration rates, suitable for fast-moving tasks.
General Electric D20 EME-C 10BASE-T: Equipped with integrated safety features and using 10BASE-T interface, it meets the strict safety requirements of certain industrial applications while maintaining reliable data transmission for motion control.
Installation and maintenance:
Before installing General Electric D20 D20 EME 10BASE-T it is essential to thoroughly evaluate the motion control and communication requirements of the automation system. Confirm that the input voltage provided to the module is within the specified range to prevent damage. Check the compatibility of theD20 EME 10BASE-T interface with existing network infrastructure and other control devices. Ensure that the network environment can support a data transmission rate of 10 Mbps without significant interference or bottlenecks. In addition, confirm that there is sufficient space for proper installation, while considering the size and heat dissipation requirements of the module. Configure motion control parameters according to specific application requirements, such as axis settings, speed limits, and acceleration/deceleration curves, and correctly set network settings, including IP addresses and subnet masks, to achieve seamless communication through D20 EME 10BASE-T
For continuous maintenance, regularly monitor the diagnostic indicator lights and network connection status of the module. The diagnostic information accessible through the D20 EME 10BASE-T interface can provide valuable insights into the operational status of the module, including motor performance, communication integrity, and error conditions. Regularly inspect Ethernet cables and connectors to ensure they are secure, undamaged, and do not cause signal attenuation. Conduct regular performance checks to verify the accuracy of motion control and the reliability of data transmission. If any problems arise, please use the detailed troubleshooting guide provided by General Electric, which typically includes steps for resolving D20 EME 10BASE-T related communication issues, to quickly identify and resolve the problem.
