Name: GE 239 High Performance Motor Protection Relay | Qiming Automation
Brand: GE

Description

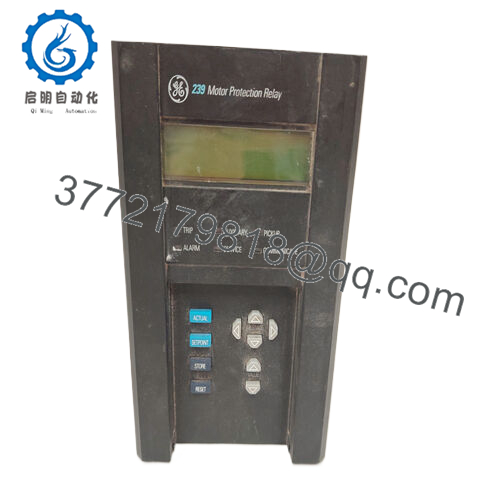

GE 239 is a high-performance motor protection relay designed by General Electric (GE) to comprehensively protect three-phase AC motors. As a key component in industrial control systems, it is like a loyal guardian of motor health.

239

As a motor protection relay, GE 239is responsible for continuously monitoring the electrical parameters of the motor. It analyzes factors such as current, voltage, and temperature to detect any potential signs of malfunction. If an abnormal situation is detected, it can take corresponding measures, such as issuing an alarm, cutting off the circuit to isolate the motor, or recording the event for subsequent analysis.

239

Main features and advantages:
In terms of protection functions, it provides comprehensive coverage. It can prevent overload and ensure that the motor does not draw excessive current for a long time, thereby avoiding overheating and damage. This relay has 15 optional thermal overload curves, which can be customized according to the characteristics and application requirements of specific motors. This flexibility ensures optimal protection while avoiding false tripping.

Short circuit protection is another important function. When a short circuit occurs in the motor circuit, GE 239 can quickly detect the fault and cut off the circuit, preventing widespread damage to the motor and other connected equipment. It can also prevent rotor jamming, stalling/mechanical jamming, and repeated starting problems. For example, if the motor driving the sawmill cutting machine stalls due to wood jamming, GE 239 can quickly identify the abnormal situation and take measures to protect the motor.

GE 239can effectively deal with single-phase faults and current imbalances. By accurately detecting unbalanced current, it can prevent the motor from running inefficiently and avoid premature wear. The grounding fault protection function is also included, which is crucial for safety in industrial environments as it can detect and isolate any faults in the grounding system, preventing electric shock and equipment damage.

GE 239 also provides over temperature protection, which can be achieved through thermistor input or optional RTD (resistance temperature detector) input. This is particularly useful for applications where the motor operates in high temperature environments or overheats due to excessive load. In addition, it also has undercurrent protection function, which can be used to detect pump cavitation or fan belt slippage in applications such as water treatment plants and ventilation systems.

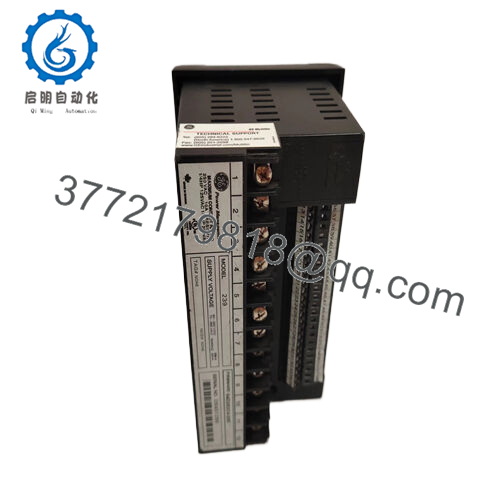

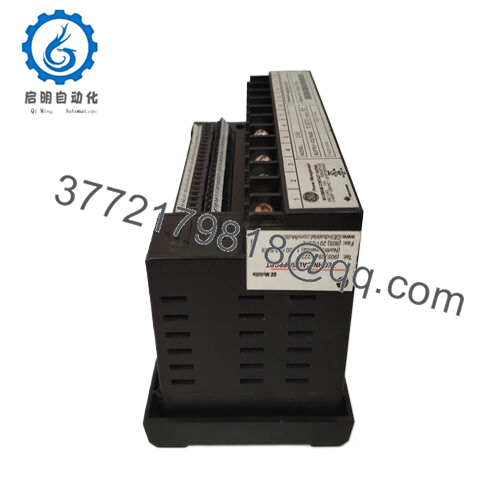

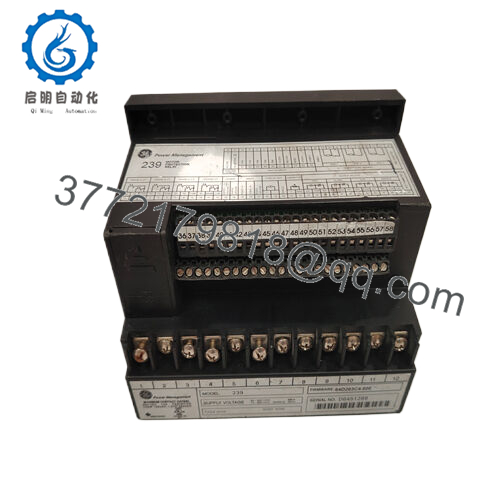

In terms of hardware design, the GE 239 adopts a compact external size, suitable for installation in space limited places such as inside motor control centers. It can be easily installed on DIN rails, simplifying the installation process. This relay is designed to withstand harsh industrial environments. If selected (indicated by “H” in the model), it can also be coated with a conformal coating to provide enhanced protection against dust, moisture, and chemical pollutants.

In terms of communication, the GE 239is equipped with an RS485 serial port that supports communication through the Modbus RTU protocol. This allows it to seamlessly integrate into larger industrial control systems, capable of sending and receiving data related to motor status, faults, and operating parameters. It can be connected to a central control/monitoring system, allowing operators to remotely monitor and manage the motor protection functions of the entire factory.

The design of GE 239 ensures long-term reliability. It has independent flash memory, allowing for on-site product upgrades to keep the relay up to date with the latest features and improvements. The built-in simulation function simplifies the testing program, allowing technicians to verify the normal operation of relays without the need for complex external testing equipment. It also has an event logging function that can store up to five recent events, providing valuable information for troubleshooting and maintenance.

239

Technical specifications:
Model 239
Manufacturer GE
Product Type: Motor Protection Relay
Series 239 Motor Protection System
Communication Protocol Modbus RTU
Rated value of fuse: slow melting type, high breaking capacity
Locked start protection 0.5 to 11.0 times full load current (FLC)
15 optional overload curves, with trip time action values ranging from 1 to 1500 amperes
Thermistor accuracy ± 5% or 100 ohms, whichever is greater
Switch input type: dry contact
Unbalance accuracy ± 2%
DC control power input 90 to 300 volts DC
AC control power input 70 to 265 volts AC, 50/60 hertz
Working temperature -25 ° C to+70 ° C
Storage temperature -40 ° C to+85 ° C
Installation method: DIN rail
40 character backlit display screen
6 LED indicator lights
Programmable output of thermal capacity, full load percentage, phase current, etc

239

Application areas:
Taking large manufacturing plants as an example, they rely on a vast network of motors to drive their production lines. In automobile assembly plants, motors drive conveyor belts to transport car parts, operate robotic arms for precise assembly, and provide power for ventilation systems. GE 239 is installed on these motors to protect them from various electrical faults and adverse operating conditions. If the conveyor belt motor experiences overload due to a sudden stoppage in the production line, GE239 can quickly detect the abnormal increase in current. Subsequently, it will take immediate action, such as cutting off the circuit to prevent the motor from overheating and suffering permanent damage. This not only avoids the expensive maintenance or replacement costs of the motor, but also minimizes production downtime to the greatest extent possible, ensuring that the assembly line can resume operation as soon as the problem is resolved.

In the field of power generation, motors are used in various application scenarios, from cooling fans in power plants to water pumps that circulate water to generate steam. In thermal power plants, if a single-phase fault occurs in the cooling fan motor (i.e. one phase of the three-phase power line fails), GE 239 will detect the resulting unbalanced current. By promptly disconnecting the motor from the power supply, it can prevent the motor from running inefficiently and potentially getting stuck, avoiding overheating of key components in the power plant and power generation interruptions.

The water and wastewater treatment industries have also benefited greatly from GE 239. In water treatment plants, electric motors drive water pumps to complete the water treatment process. If the water pump motor encounters mechanical jamming, it may be due to the presence of debris in the water, and the mechanical jamming protection function of GE 239will be activated. It can detect abnormal torque and current changes related to lagging, and shut down the motor to protect it from damage, while preventing interference with the water treatment process, which may lead to contamination of the treated water or blockage of the treatment system.

Related products:
GE 339: A more advanced motor protection relay from GE can be seen as an upgrade option for users seeking enhanced functionality. It provides additional communication options and more precise protection algorithms, suitable for complex industrial applications where GE 239 may not meet all requirements.
GE 859: This relay is designed specifically for applications that require high-speed tripping and advanced fault detection capabilities. In scenarios where higher protection levels are required for critical motors, such as high-voltage drive equipment in industrial factories, it can be used in parallel with GE 239.
GE 869: In addition to providing motor protection, it also offers advanced power quality monitoring. In industrial environments where power quality issues are common, GE 869 can be used in conjunction with GE 239, which is responsible for basic motor protection, while the former focuses on power quality analysis to ensure the overall health of electrical systems and motor operation.
GE P24 Agile Relay: This is a compact and multifunctional relay suitable for small industrial devices with limited space. It can complement GE 239 in distributed control systems, where GE 239 is responsible for protecting large motors, while GE P24 agile relays protect small motors or serve as backup protection devices.
GE RTD sensors: When RTD input is required for over temperature protection, these sensors can be used in conjunction with GE 239. They can accurately measure the temperature of motor windings or bearings, providing real-time data for GE 239 to achieve effective over temperature protection.
GE Modbus Gateway: As GE 239 communicates using the Modbus RTU protocol, these gateways can be used to connect GE 239 to other industrial networks or protocols. They enable GE 239 to seamlessly integrate into more complex network architectures, enabling a wider range of data sharing and control functions.
GE SCADA system: These systems can be used for remote monitoring and control of GE 239. They provide a centralized platform for operators to view motor status, receive alarms, and configure GE 239 settings, enhancing the manageability of motor protection in large industrial plants.
