Foxboro FCP270 P0917YZ Field Control Processor

Description

The Foxboro FCP270 P0917YZ is a field control processor and a core component of the Foxboro industrial control

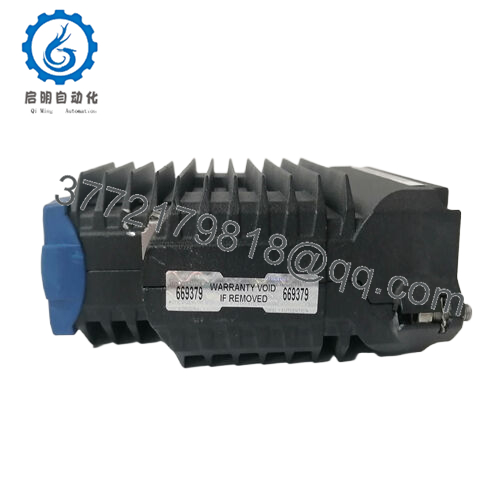

FCP270 P0917YZ

It acts as the ‘brain’ of the control system, receiving input from numerous sensors and field devices, processing this data, and then sending instructions to actuators and other control components. It is an important component of the Foxboro I/A series distributed control system (DCS), which is widely used in the field of industrial automation. In the architecture of the control system, it is at the core, achieving seamless communication between field level devices and advanced monitoring and control stations. For engineers and integrators, its value lies in the ability to handle complex control tasks, support a wide range of fieldbus modules, and be easy to program to meet the specific requirements of different industrial applications.

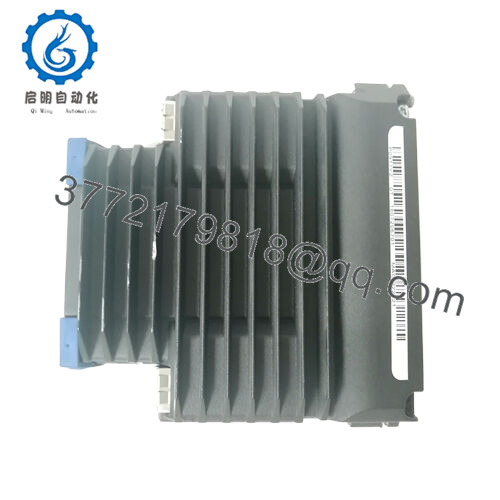

FCP270 P0917YZ

Main features and advantages:
In terms of functional performance, it is equipped with a high-speed AMD Elan 520 processor running at 100 MHz. This enables it to execute up to 10000 module executions per second, ensuring fast response times for real-time control applications. It can manage up to 4000 control modules, enabling the implementation of extensive and complex control logic.

The hardware design of FCP270 P0917YZ is sturdy and durable, capable of withstanding harsh industrial environments. It features a sturdy die cast aluminum casing that can operate in harsh environments such as G3. Its operating temperature range is 0 to+60 ° C, capable of withstanding non condensing humidity of 5% to 95%, and can maintain reliable operation even under the most challenging conditions. Its modular configuration is easy to expand and customize, supporting a wide range of fieldbus modules.

In terms of compatibility, it supports 200 series and 100 series fieldbus modules (FBMS). When used with the FEM 100 module, it can connect up to 128 200 series FBMS; If FEM 100 module is not used, up to 64 100 series FBMS can be connected. It communicates with the Foxboro Evo control network through standard fiber optic 100 Mbps Ethernet, ensuring high-speed and reliable data transmission. It also supports multiple communication rates, with 2 Mbps for the 200 series FBMS and 268 kbps for the 100 series FBMS.

In terms of long-term reliability, it has 16 MB of SDRAM and 32 MB of flash memory, as well as error correction codes (ECC) that can detect and correct single bit and multi bit errors, ensuring data integrity during operation. This module also provides fault-tolerant operation, using a dual processor module to ensure continuous operation even in the event of hardware failure, with a fault switching time of less than 5 seconds.

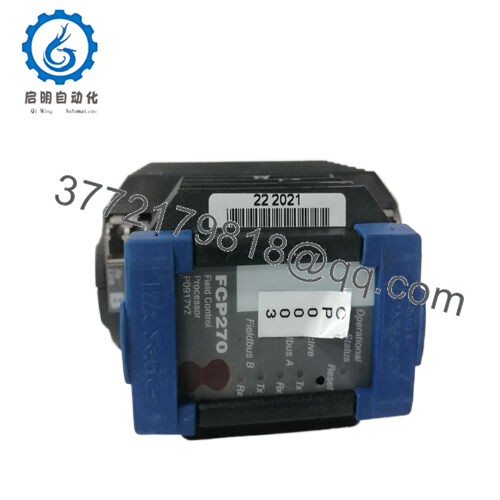

FCP270 P0917YZ

Technical specifications:
Model FCP270 P0917YZ
Brand Foxboro FOXBORO
Type: On site Control Processor
Power supply 24 VDC (typical value)
Working temperature: 0 ° C to+60 ° C
Installation method: Rack installation (compatible with standard industrial racks)
Dimensions (length x width x height) 14.7 cm x 5.15 cm x 11.4 cm
Weight 0.6 kilograms
Interface Ethernet (100 Mbps fiber), HDLC (2 Mbps for 200 series FBMS, 268 kbps for 100 series FBMS)
Certified CE, compliant with European EMC Directive 2004/108/EC, compliant with EN 61326-1:2013 Class A emissions and industrial immunity levels
Natural convection heat dissipation method (designed specifically for efficient heat dissipation in industrial environments)
Protection level G3 (suitable for harsh environments), can operate at altitudes of -300 to+3000 meters, and can withstand 0.5 g of vibration (5 to 500 Hz)

Contact Us
Phone:+86 16626708626
WhatsApp/WeChat:+86 16626708626
Email: 3772179818@qq.com

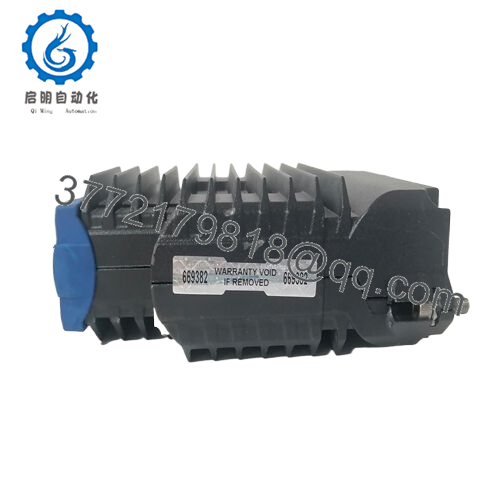

FCP270 P0917YZ

Related products:
Foxboro FBM200- This is a fieldbus module that can be directly connected to FCP270 P0917YZ, providing additional input and output channels for connecting various sensors and actuators on site.
Foxboro FEM100- Fieldbus Expansion Module 100, when used with FCP270 P0917YZ, can connect up to 128 200 series FBMS, significantly expanding the system’s ability to handle field level equipment.
Foxboro P0971GN – This is a power unit that can be used to ensure a stable and reliable power supply for FCP270 P0917YZ, improving its overall performance and reliability in industrial operations.
Foxboro I/A Series Operator Interface Station – This interface station can be integrated with FCP270 P0917YZ, providing an easy-to-use interface for operators to monitor and control industrial processes managed by FCP270.
Foxboro Network Management Interface – Connected to FCP270 P0917YZ, used to manage and optimize communication networks within industrial control systems, ensuring smooth data flow between different components.

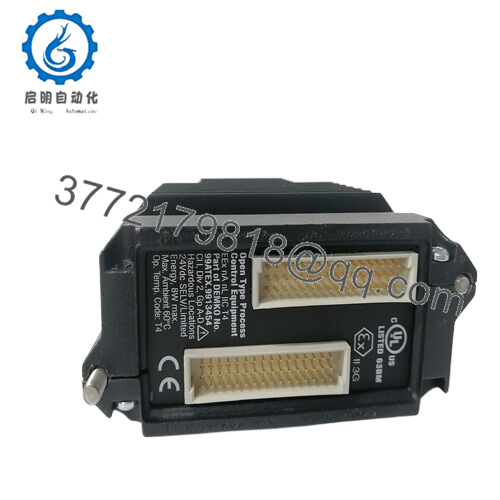

FCP270 P0917YZ

Installation and maintenance:
Before installing the Foxboro FCP270 P0917YZ, it is necessary to carefully plan the rack layout. Ensure there is sufficient space around the module for proper ventilation as it operates within a specific temperature range. The rack should be properly grounded to protect the module from the impact of power surges. When connecting fieldbus modules and other devices, carefully check the wiring diagram to ensure correct connections and complete signals. During installation, handle the module carefully to avoid electrostatic discharge, as it may damage its sensitive components.

For maintenance, a regular visual inspection plan should be developed. Check for any physical signs of damage to the casing, such as cracks or dents, and inspect for loose connections. Regularly conduct diagnostic tests to verify the communication capability and data processing accuracy of the module. Maintain firmware updates for FCP270 P0917YZ as new firmware versions typically include bug fixes, performance improvements, and enhanced compatibility with other system components.
