Phone: +86 16626708626Description
The Emerson A6410 is a dual channel valve and housing expansion monitor that is an important component of the AMS 6500 Mechanical Health Monitoring Kit. It is designed for high reliability monitoring of the most critical rotating machinery in industrial environments.

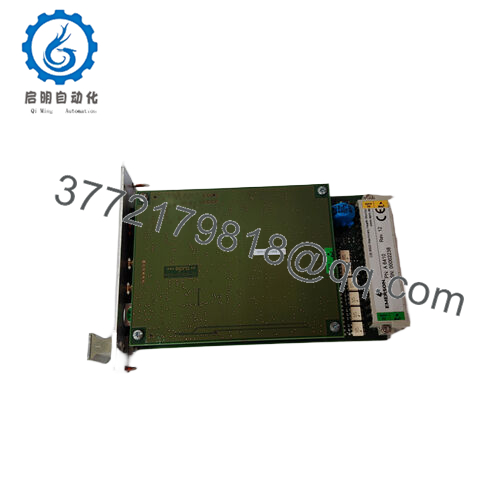

A6410
When used in conjunction with other AMS 6500 monitors, this 1-slot monitoring device can serve as a key component in building a comprehensive API 670 mechanical protection monitoring system. It serves as a bridge between sensors that detect valve position and casing expansion, and the control system that needs to take corrective measures when any abnormalities are detected.
In the architecture of the mechanical health monitoring system, the Emerson A6410 receives inputs from sensors such as inductive displacement sensors. Channel 1 of the monitor can measure static values (such as casing expansion) as well as dynamic quantities (such as displacement, angle, force, and torque). Channel 2 is used for static measurement and relative displacement (relative to channel 1). This setting can comprehensively understand the mechanical health status of the equipment.

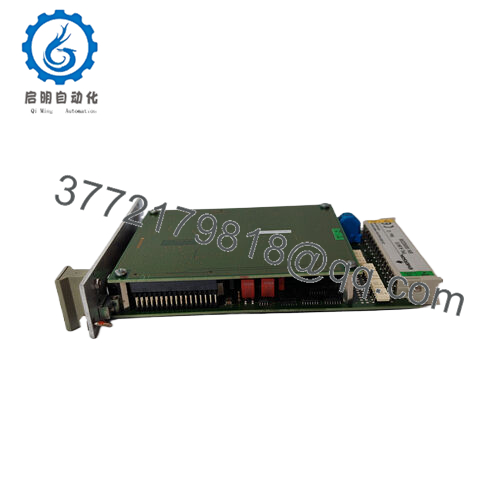

A6410
Main features and advantages:
The EmersonA6410has simplicity in integration. Its compact 3U size and one slot plug-in design make it easy to install in control cabinets, reducing space requirements by half compared to traditional four channel 6U cards. This not only saves physical space, but also simplifies the overall system design, making it the preferred choice for improving the safety and reliability of industrial machinery monitoring systems.
From a functional perspective, the EmersonA6410 has excellent accuracy. In terms of valve position monitoring, it can accurately measure the position of the valve stem, providing highly reliable valve opening percentage data for operators. This accuracy is crucial for maintaining optimal mechanical operation, as even slight deviations in valve position can lead to low efficiency or equipment damage.
In terms of casing expansion monitoring, this monitor can detect very small changes in expansion rate. This is crucial for preventing issues such as casing bending during the start-up process of the turbine. The response time of Emerson A6410 is also impressive. It can quickly process data received from sensors and compare it with preset alarm settings. If any parameter exceeds the limit, it can immediately trigger an alarm and relay, ensuring timely corrective measures are taken.
The hardware design of Emerson A6410 is robust and durable, capable of withstanding typical harsh conditions in industrial environments. It complies with relevant industry standards, ensuring its durability. This module supports hot swapping, which is a significant advantage. When a malfunction occurs, it can be replaced without shutting down the entire system, greatly reducing downtime. This feature complies with the API 670 standard, further demonstrating its quality and reliability.
Compatibility is another major advantage of EmersonA6410. It is designed to seamlessly integrate with the commonly used inductive displacement sensor 9350 in industrial monitoring applications. The monitor also has a self checking function, which can continuously monitor hardware, power input, hardware temperature, sensors, and cables. This self diagnostic ability helps to detect any potential problems early, achieve proactive maintenance, and reduce the risk of unexpected failures.

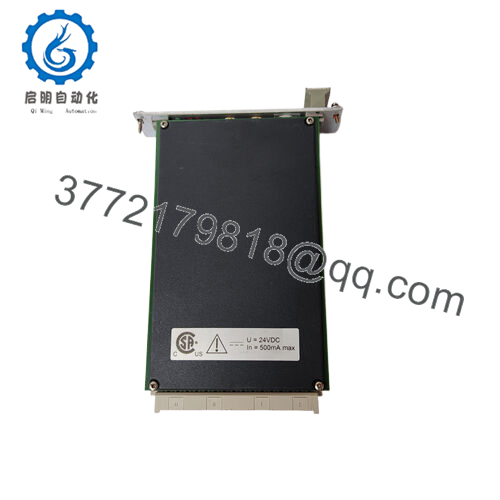

A6410
Technical specifications:
Model A6410
Brand Emerson
Type: Dual channel valve and casing expansion monitor
Installation method: Install in slot 1 of AMS 6500 system
Certified to comply with API 670 standard
Contact Us
Phone:+86 16626708626
WeChat/WhatsApp:+86 16626708626
Email: 3772179818@qq.com
Installation and maintenance:
Before installing the Emerson A6410, please ensure that the control cabinet has enough space to accommodate the 1-slot module. The cabinet should also be properly ventilated to prevent the monitor from overheating during operation. When connecting the sensor to Emerson A6410, please carefully follow the wiring diagram provided by Emerson. Check for any loose connections and ensure that the sensor is installed in the correct position, especially the inductive displacement sensor used for monitoring casing expansion.
In terms of maintenance, conduct a visual inspection once a month. Check for any signs of physical damage to the module, such as cracked casing or loose connectors. Check the status indicator lights on the module to ensure they are functioning properly. Every quarter, conduct a more in-depth diagnostic check using software tools recommended by Emerson. These tools help detect any potential issues with hardware, sensors, or communication interfaces. Keep the firmware of Emerson A6410 updated to the latest version. Emerson regularly releases firmware updates, which may include bug fixes, performance improvements, and enhanced features. Updating the firmware at least once a year helps ensure that the monitor runs at its best.
