The Emerson A6210 is a high-performance monitoring module that is an important component of the AMS 6500 mechanical health monitoring system. Emerson, as a globally recognized leader in industrial automation and control, has carefully designed this module for precise and reliable monitoring of critical mechanical parameters.

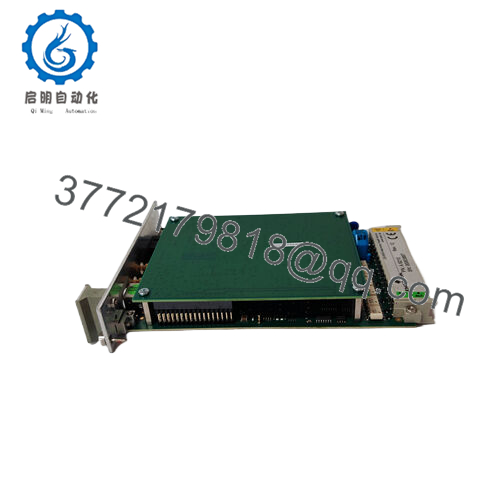

A6210
As a three function monitor, the Emerson A6210 can operate in three different modes: thrust position mode, differential expansion mode, or piston rod position mode. It is connected to various eddy current sensors and Emerson differential sensors (such as part numbers 6422, 6423, 6424, and 6425). These sensors will transmit real-time data to the Emerson A6210, which utilizes advanced algorithms to process this data.
In the overall architecture of industrial control systems, Emerson A6210 is an important link between sensors and control rooms. It converts raw sensor data related to shaft position, expansion difference, and piston rod movement into actionable information. For engineers and system integrators, the Emerson A6210 has a high degree of flexibility. It can be easily configured according to the specific monitoring needs of different industrial applications. Whether it is a large industrial complex or a small manufacturing unit, this module can be relatively easily integrated into existing control infrastructure. Its compatibility with the AMS 6500 system also means that it can work in conjunction with other components in the kit to comprehensively present the mechanical health condition.

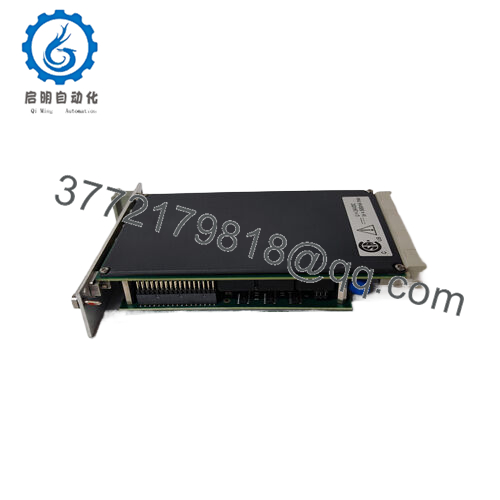

A6210
Main features and advantages:
One of the outstanding features of Emerson A6210 is its high-speed response capability in thrust position monitoring. It can detect sudden axial movement of the shaft in 40 milliseconds or less. This fast response time is crucial for protecting turbomachinery from potential damage. For example, in a gas turbine power plant, any delay in detecting sudden changes in thrust can lead to immediate and severe mechanical failure.
Another significant advantage of this module is its support for multiple measurement modes. In differential expansion mode, it provides two sub modes: series/complementary mode and cone/ramp mode. This flexibility enables it to adapt to different types of machinery and operating conditions. For example, for steam turbines with complex thermal expansion characteristics, an appropriate differential expansion mode can be selected to accurately monitor the relative expansion of the casing and rotor.
The design of Emerson A6210 also emphasizes reliability. It has an electrically isolated input terminal, which helps protect the module from electrical interference. Its input resistance is greater than 100 k Ω, the input voltage range is 0 to -22 VDC, and it can handle various sensor outputs. The measurement frequency range is 0-8 Hz (10 Hz, -3 dB) to ensure accurate capture of relevant mechanical vibrations and movements related to thrust, differential expansion, and piston rod position changes.
In terms of structure, the EmersonA6210 is specifically designed to withstand harsh industrial environments. Although the specific environmental level may vary, it is designed to operate effectively in conditions where dust, moisture, and temperature fluctuations may exist. This durability ensures that it can provide continuous and reliable monitoring even in the most challenging industrial environments.

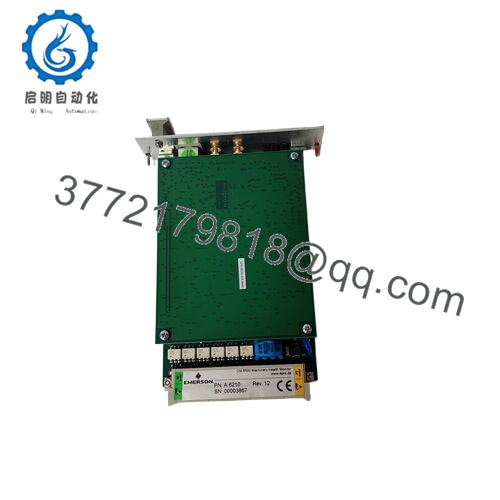

A6210
Technical specifications:
Model A6210
Brand Emerson
Type thrust position, differential expansion, and piston rod position monitor
Input voltage range 0 to -22 VDC
Input resistance>100 k Ω
Measurement frequency range 0-8 Hz (10 Hz, -3 dB)
Enter two quantities, independent
Input types: eddy current sensor, Emerson differential sensor input (part numbers: 6422, 6423, 6424, 6425)
Isolation method: Electrical isolation
Working temperature range -40 ° C to+85 ° C
Installation method: 1-slot plug-in module for standard cabinet
Size 24 x 17 x 6.5 centimeters
Weight 0.42 kilograms
Contact Us
Phone:+86 16626708626
WeChat/WhatsApp:+86 16626708626
Email: 3772179818@qq.com

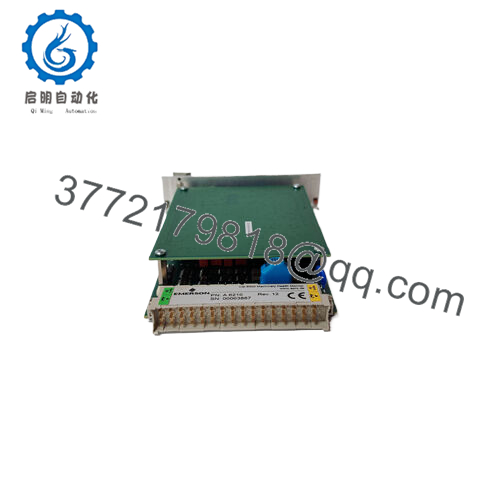

A6210
Application areas:
In the field of power generation, especially in power plants equipped with steam and gas turbines, the Emerson A6210 plays a crucial role. Axial thrust monitoring is crucial for marine engines operating at high speeds and under extreme conditions, as any sudden or slight axial movement of the shaft, if not detected in a timely manner, can lead to serious damage. The Emerson A6210 in thrust position mode can accurately track the axial position of the shaft. For example, in a large steam turbine that supplies power to the city grid, the EmersonA6210continuously monitors the thrust position. If the shaft experiences unexpected displacement due to load changes or mechanical wear, the monitor can detect it within 40 milliseconds or less. This early detection can enable operators to take corrective measures in a timely manner, prevent the rotor from coming into contact with the casing, and avoid potential catastrophic failures and long-term power outages.
Oil and gas refineries are also highly dependent on Emerson A6210. Compressors in refineries are used for transporting and processing hydrocarbons. The differential expansion measurement function of Emerson A6210 is extremely valuable during the start-up and operation of the compressor. As the compressor casing and rotor heat up or cool down due to process changes, differential expansion may occur. The EmersonA6210 is capable of measuring the relative difference between the housing and the displacement sensor on the shaft. By ensuring that differential expansion remains within the desired range, it helps prevent mechanical failures caused by misalignment due to differences in thermal expansion.
In the manufacturing process of reciprocating compressors, the compressor is widely used in industries such as petrochemicals and refrigeration, and the Emerson A6210, which is in the average piston rod drop mode, is indispensable. Over time, in a horizontal reciprocating compressor, the saddle ring supporting the piston will wear out due to the gravitational force acting on the horizontally placed piston. Emerson A6210 will monitor the position of the piston rod. When the saddle ring begins to wear out and the piston falls, the monitor will issue a notification. This enables the maintenance team to set shutdown protection thresholds to prevent contact between the piston and cylinder wall, avoiding significant damage to the compressor.
Related products:
Emerson A6250: This module provides triple redundant thrust protection based on the SIL 3 overspeed protection system platform. Suitable for critical safety applications that require high redundancy and protection, it can serve as a supplement to Emerson A6210 in high-risk industrial environments.
Emerson 6422 Sensor: Used in conjunction with Emerson A6210, it provides accurate input data for monitoring thrust position, differential expansion, and piston rod position. The high-quality measurement of sensors is crucial for Emerson A6210 to effectively perform monitoring functions.
Emerson AMS 6500 Communication Module: facilitates seamless data transmission between Emerson A6210 and other components within the AMS 6500 system, as well as external control systems. Efficient sharing of monitoring data for further analysis and control.
Emerson A6140: focuses on absolute shaft vibration monitoring, while Emerson A6210 monitors thrust position, differential expansion, and piston rod position. The combination of the two can provide a more comprehensive view of the mechanical health status for industrial applications that require simultaneous monitoring of vibration and position related parameters.
Emerson DeltaV and Ovation process automation systems: The Emerson A6210 can be easily integrated into these systems. The pre configured DeltaV graphics dynamics and Ovation graphics macros can accelerate operator graphics development speed, enhancing overall availability and functionality when used in conjunction with the Emerson A6210.
Installation and maintenance:
Before installing the EmersonA6210, it is essential to ensure that the installation environment is suitable. The cabinet where it is installed should have good ventilation conditions to dissipate the heat generated by the module. Proper grounding of cabinets and modules is crucial due to potential electrical interference in industrial environments. The installation location should also be carefully selected to ensure ease of operation during future maintenance. As it is a 1-slot plug-in module, please ensure that the slots in the cabinet are clean and free of debris.
When installing sensors related to Emerson A6210(such as models 6422, 6423, 6424, or 6425), it is essential to strictly follow Emerson’s detailed installation instructions. Sensors need to be installed in the correct position on mechanical equipment to ensure accurate measurement. For example, in thrust position monitoring, displacement sensors should be installed parallel to the shaft at the shaft end or thrust disc. Carefully check all connections to ensure they are secure and wired correctly.
For maintenance, it is recommended to conduct regular visual inspections. Check for any signs of physical damage to the module, such as cracks or loose parts. Regularly verify the integrity of sensor connections. Emerson provides software tools for calibration and diagnostic checks. These tools can be used regularly (e.g. quarterly) to ensure accurate measurement of thrust position, differential expansion, and piston rod position by the module. Keep the firmware of the module at the latest version, as firmware updates typically include bug fixes, performance improvements, and compatibility enhancements with other AMS 6500 system components.
