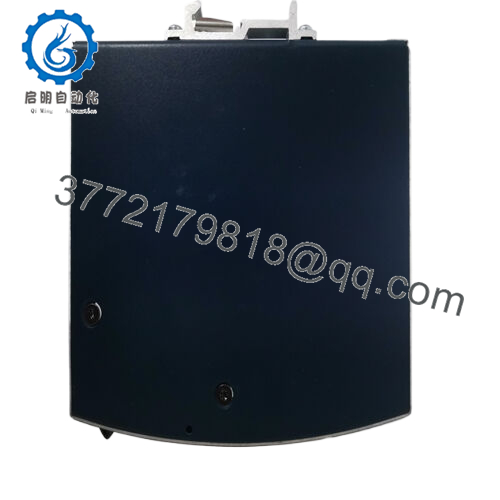

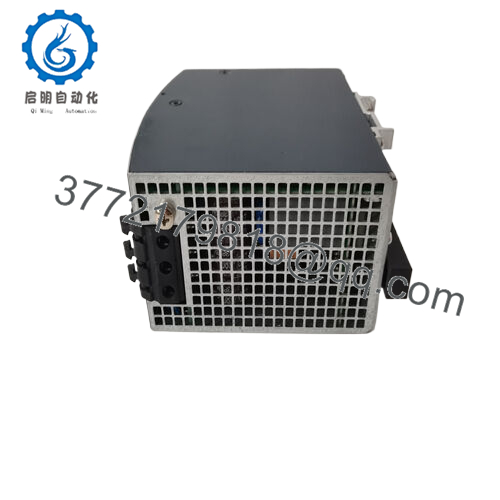

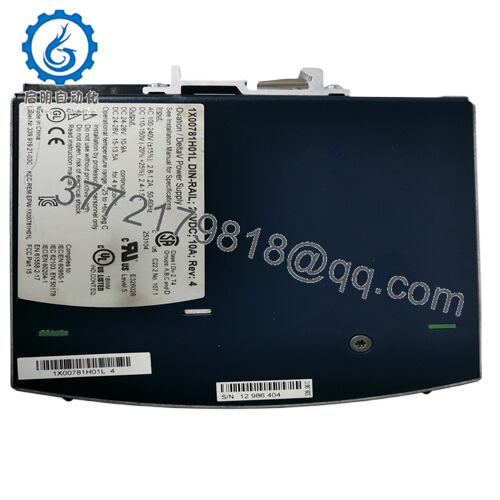

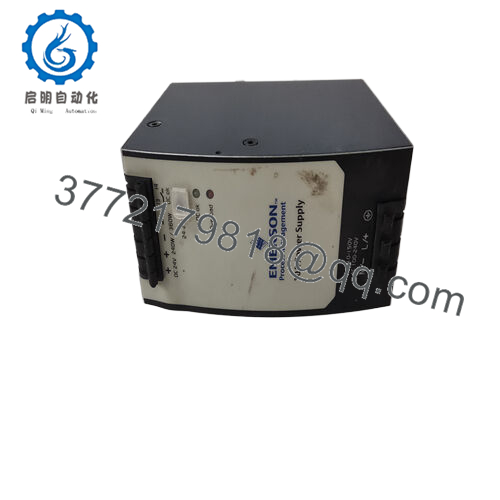

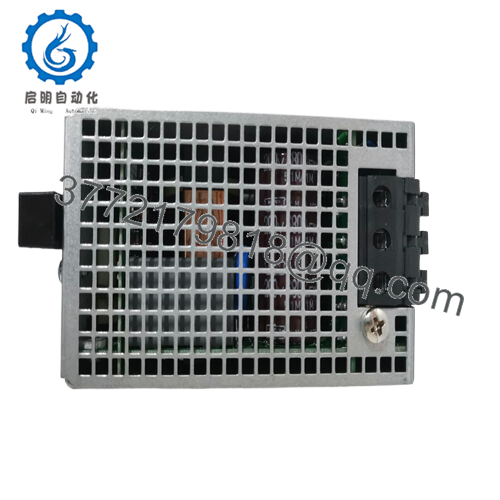

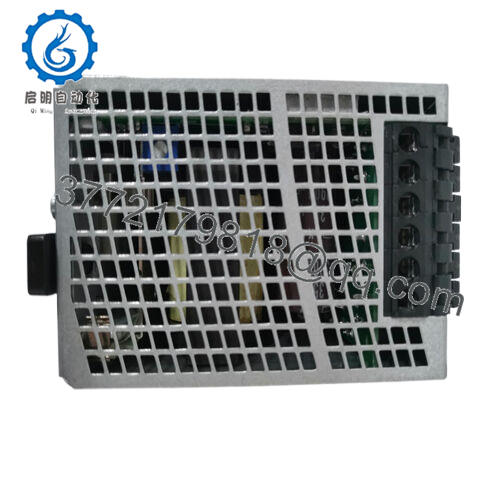

Emerson 1X00781H01L is a DIN rail mounted power module that is an important component of industrial control system power infrastructure. It can directly interface with Emerson Ovation digital control system, making it more widely applicable to other control platforms that require stable power supply. By installing it on a DIN rail, it becomes an indispensable part of the backplane system, powering the controllers and I/O modules necessary for the operation of the automation stack.
1X00781H01L
This module has redundancy support function, which means that in the event of a main power failure, the backup power mechanism will immediately start to ensure continuous operation. Its diagnostic function enables engineers to monitor the health status of the power supply, detect abnormalities in a timely manner, and take corrective measures. It supports standard power related protocols to ensure compatibility with various industrial equipment.
1X00781H01L
Technical specifications:
Model 1X00781H01L
Brand Emerson
Type DIN rail mounted power module
Input voltage 100-240V AC
The working temperature range is approximately -20 ° C to 60 ° C
Installation method: DIN rail
Size 6cm x 12.5cm x 6.3cm
Weight 0.9 kilograms
Interface/bus suitable for power connection interfaces in industrial power distribution
Standard protocols related to power sources that support stable power transmission protocols
contact us
Phone:+86 16626708626
WeChat/WhatsApp:+86 16626708626
Email: 3772179818@qq.com
1X00781H01L
Main features and advantages:
This module adopts high-quality component design to ensure high reliability of long-term performance. Its wide input voltage range of 100-240V AC reduces the need for complex voltage regulation systems, thereby lowering engineering costs. Its modular design simplifies maintenance work, making it easy and direct to replace faulty power modules, minimizing system repair time to the greatest extent possible. The stable 24V DC output it provides is crucial for maintaining the integrity of connected devices and ensuring consistent performance in all operations.
1X00781H01L
Application areas:
In a power plant, it supplies power to the control system that manages power generation and distribution, ensuring the normal operation time of critical systems.
In process control environments such as chemical engineering, it provides stable power for precise control of chemical reactions.
In the manufacturing industry, especially for high-speed automated production lines, Emerson 1X00781H01L supplies power to I/O modules that coordinate mechanical motion, ensuring fast data cycles and continuous operation.
1X00781H01L
Installation and maintenance:
Before installing Emerson 1X00781H01L, engineers should check the compatibility between the DIN rail and module installation requirements. Ensure that the input voltage range at the installation site matches the 100-240V AC requirements of the module. It is also crucial to verify the power capacity of the entire system to handle the power consumption of the modules.
For continuous maintenance, the connections on the DIN rail should be checked regularly to ensure their firmness. The LED indicator lights on the monitoring module (if available) are used to detect any abnormal power related issues. Regularly testing the output voltage can also help maintain the performance of the module in the long term.
1X00781H01L
1X00781H01L
1X00781H01L
1X00781H01L
