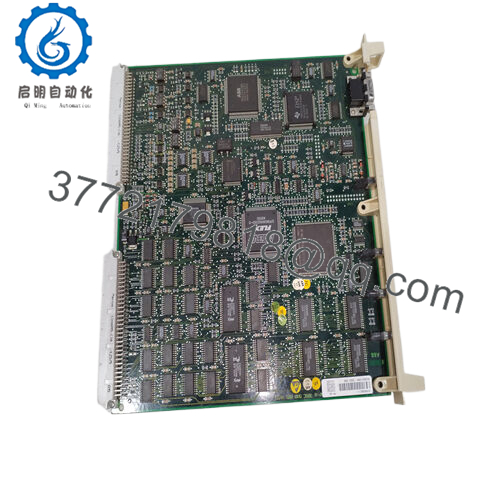

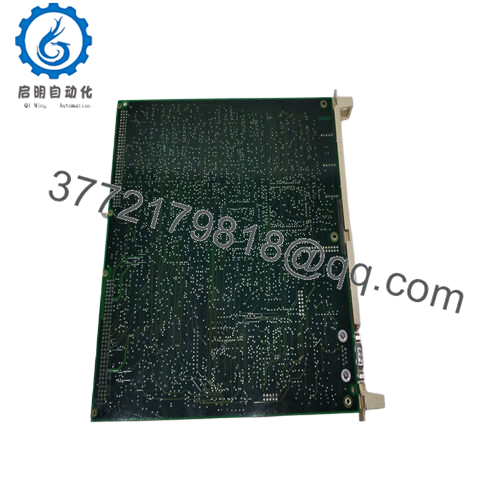

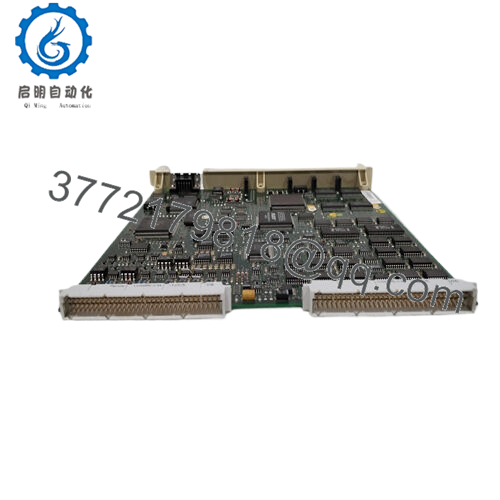

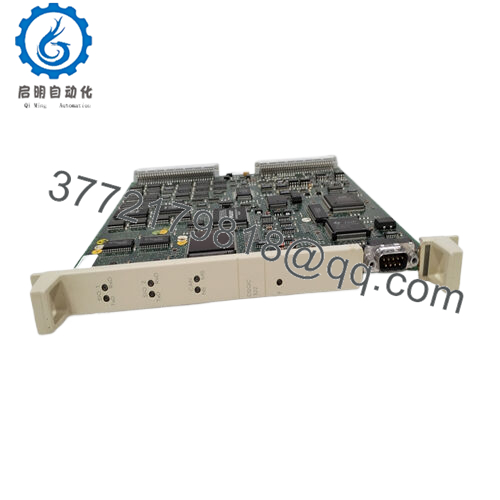

DSQC322 Digital I/O Module for Industrial Robots

Description

DSQC322

The DSQC322 functions as a digital I/O module specifically designed for ABB industrial robots, serving as a vital interface between the robot controller and external equipment. It fits into the automation stack as a key I/O expansion component, bridging the gap between the robot’s control system and the numerous digital devices that enable robotic operations.

DSQC322

This module connects directly to the robot controller via a dedicated backplane interface, ensuring low-latency communication that is critical for real-time control. It supports a range of digital input and output signals, allowing it to handle diverse tasks from monitoring sensor states to activating actuators. The DSQC322 is engineered to work seamlessly with ABB’s RobotWare operating system, integrating with the robot’s programming environment to provide engineers with intuitive control over I/O configurations. Its modular design allows for easy expansion of the robot’s I/O capabilities, making it adaptable to changing production needs in industrial settings.

DSQC322

Main features and advantages:

Engineered for industrial durability, the DSQC322 ensures consistent performance in the demanding environments of manufacturing facilities. Its robust construction withstands the vibrations, temperature fluctuations, and electrical noise common in factory settings, reducing the risk of signal interruptions that could disrupt production. The module’s stable signal transmission minimizes the potential for errors in robotic operations, which translates to improved product quality and reduced waste in manufacturing processes.

The integration capabilities of the DSQC322 significantly reduce engineering overhead. Its plug-and-play compatibility with ABB robot controllers eliminates the need for complex wiring and configuration, allowing for faster setup and commissioning. The module’s seamless integration with ABB’s programming software enables engineers to easily map I/O signals to robotic functions, streamlining the development of automation sequences. Built-in diagnostic features provide real-time monitoring of signal status, allowing for quick troubleshooting and minimizing downtime when issues arise.

DSQC322

Application areas:

The DSQC322 is widely deployed in various industrial applications where ABB robots play a central role. In automotive manufacturing, it is used in assembly lines to connect robots with welding guns, part sensors, and conveyor systems. The module ensures precise timing between robotic movements and peripheral equipment, critical for achieving the high precision required in automotive assembly.

In electronics manufacturing, the DSQC322 enables robots to interact with pick-and-place machines, inspection cameras, and material handling systems. Its reliable signal transmission ensures that delicate electronic components are handled with accuracy, preventing damage and ensuring consistent product quality.

In packaging industries, the module facilitates communication between robots and packaging equipment such as sealers, labelers, and palletizers. Its ability to handle fast signal cycles supports the high-speed operations needed in modern packaging lines, maintaining efficient production rates and meeting tight delivery schedules.

Related products:

DSQC332 – Higher channel count digital I/O module for applications requiring more input/output points.

DSQC346B – Analog I/O module for applications needing continuous signal measurement and control.

DSQC651 – Safety I/O module designed for integration with safety-critical robotic systems.

DSQC1031 – DeviceNet communication module for connecting robots to DeviceNet networks.

DSQC1033 – PROFINET IO module enabling communication over PROFINET industrial Ethernet.

DSQC539 – Older generation digital I/O module, often upgraded to DSQC322 for enhanced performance.

DSQC1006 – I/O interface module for connecting external axes to robotic systems.

Installation and maintenance:

Before installing the DSQC322, verify compatibility with the specific ABB robot controller model and ensure the controller firmware is updated to support the module. Check that the controller cabinet has sufficient space for installation and proper ventilation to maintain operating temperatures within the specified range. During installation, ensure secure mounting in the controller rack to prevent vibration-related issues that could affect signal integrity.

For ongoing maintenance, regularly inspect the module’s status LEDs to confirm proper operation—steady green indicators signify normal function, while abnormal patterns indicate potential issues.
