B&R 8V1090.00-2 servo drive

Description

The B&R 8V1090.00-2 servo drive serves as an intelligent connection link between the control system and the servo motor. It drives the motor to perform the required motion by converting the control signals received by the automation controller into precisely regulated electrical outputs. This servo drive is an important component of B&R’s comprehensive motion control ecosystem and can be easily integrated with other components of B&R, such as programmable logic controllers (PLCs) and human-machine interfaces (HMI).

8V1090.00-2

It adopts a modular mechanical design and uses plug-in modules, which not only simplifies the installation and maintenance process, but also provides greater flexibility for system configuration. Integrated circuit filters help eliminate electrical noise in the power supply, ensuring that the driver receives clean and stable power input. The integrated braking resistor design is used to dissipate excess energy during motor deceleration, prevent overvoltage situations, and improve the overall safety and reliability of the system. All connections use plug-in connectors, further simplifying the installation process.

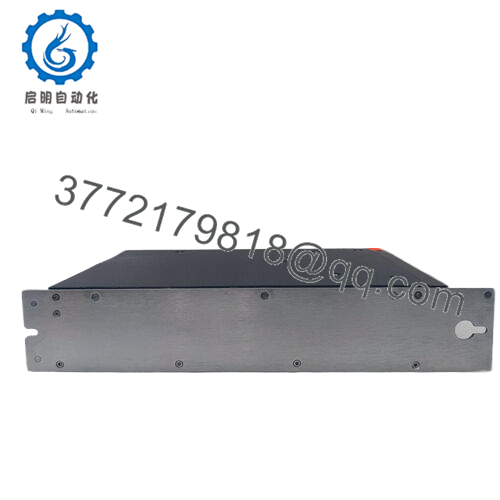

8V1090.00-2

Technical specifications:
Model 8V1090.00-2
Brand B&R
Type servo drive
Main power input voltage 3x 400 VAC to 480 VAC ± 10% or 3x 230 VAC ± 10%
Frequency 50/60 Hz ± 4%
Maximum installed load of 10 kVA
Starting current at 400 VAC 7 A
Connection interval>10 seconds
Integrated circuit filter complies with EN 61800-3, Class C3 standard
The power consumption without braking resistor is about 200 W
DC bus capacitor 470 µ F
24 VDC power input voltage 24 VDC ± 25%
Input capacitor 8200 µ F
Maximum current consumption of 2.5 A+motor holding brake current
Motor connection – continuous current 8.8 A effective value
Motor connection – peak current 24 A effective value
Nominal switching frequency 10 kHz (optional 5/10/20 kHz)
Maximum output frequency 598 Hz
Protection measures include overload protection, short circuit and ground fault protection
Braking resistor – peak power output 7 kW
Braking resistor – continuous power 200 W
Dimensions (W x H x D) 70.5 mm x 375 mm x 235.5 mm
Weight 4.4 kg

Contact Us
Phone:+86 16626708626
WeChat/WhatsApp:+86 16626708626
Email: 3772179818@qq.com

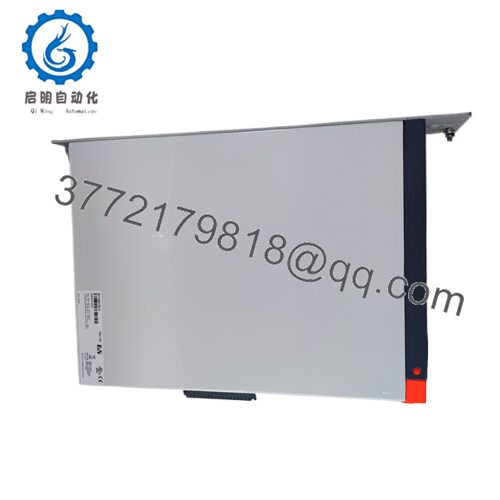

8V1090.00-2

Main features and advantages:
Its high-precision control capability enables manufacturers to improve product quality by ensuring the consistency and accuracy of motor motion. This driver is capable of handling high torque demands and rapid speed changes, making it ideal for applications that require high-speed operation, thereby increasing production throughput.

Integrated protection functions, such as overload and short circuit protection, can protect the drive and connected motor from potential damage, reducing the risk of accidental shutdown. This not only saves maintenance and repair costs, but also improves the overall reliability of the production system. In addition, the compact size of the drive makes it easy to install in space constrained environments, providing greater flexibility for system design.

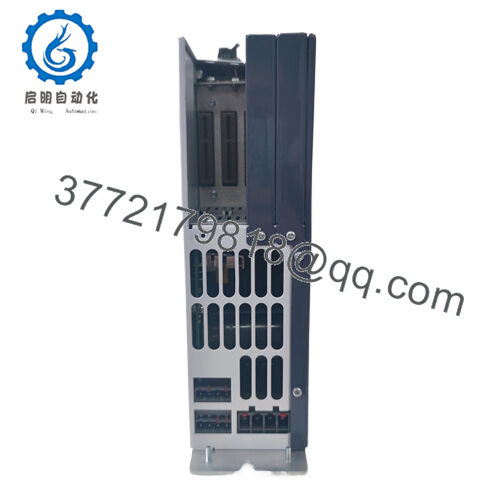

8V1090.00-2

Application areas:
In the automotive manufacturing industry, it is used to control the movement of robotic arms on assembly lines. The precise control of this driver enables the robotic arm to perform tasks such as welding, painting, and component installation with high precision and speed, which helps improve production efficiency and product quality.

In the field of semiconductor manufacturing, accuracy is crucial, and 8V1090.00-2 is used to drive motors in wafer handling equipment. It ensures that wafers are moved and positioned with micrometer level accuracy, minimizing the risk of damaging precision semiconductor materials and ensuring high-yield production.

In the packaging industry, this servo drive is used to control the motors in packaging machines. It enables machines to maintain precise control over packaging processes such as filling, sealing, and labeling while running at high speeds, thereby reducing packaging time and minimizing product waste.

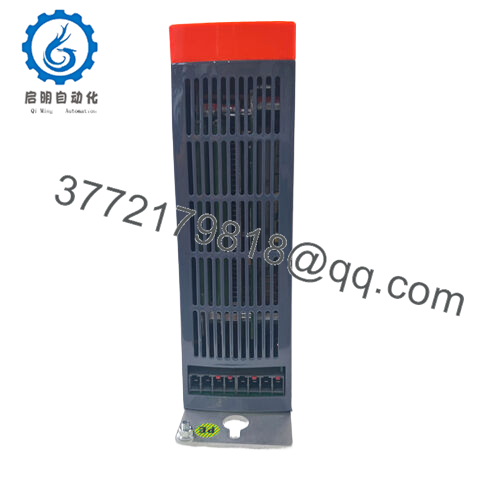

8V1090.00-2

Installation and maintenance:
Before installing the B&R8V1090.00-2 servo drive, it is essential to carefully confirm that the input voltage and frequency of the main power supply match the rated specifications of the drive. Ensure that the installation location is well ventilated to prevent overheating, as high temperatures can significantly affect the performance of the drive. During the installation process, it is essential to connect all cables correctly according to the provided wiring diagram, including power cables, motor cables, and control cables.

For daily maintenance, the drive should be regularly checked for signs of physical damage, such as cracks or loose connections. Monitor the operating temperature, current, and voltage levels of the drive to detect any abnormal behavior. Cleaning the drive to remove dust and debris also helps improve its heat dissipation efficiency and extend its lifespan. If any problems arise, please refer to the detailed user manual provided by B&R, which includes troubleshooting guides and basic repair instructions.
