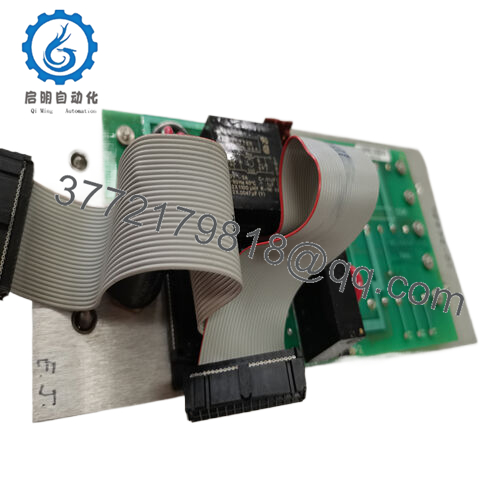

Bently Nevada PWB78434-01 High Performance Input Relay Circuit Board

Description

Bently Nevada PWB78434-01 is a high-performance input relay circuit board that serves as a critical connection link in industrial control systems. It has been carefully designed to seamlessly integrate with various control platforms, whether they are programmable logic controllers (PLCs) or distributed control systems (DCS). When inserted into the backplane of these systems, it becomes a bridge between the input electrical signals and the control unit.

PWB78434-01

Technical specifications:
Model PWB78434-01
Brand Bentley Nevada
Type: High performance input relay circuit board
Input voltage 110Vac
Working temperature range -40 ° C to+85 ° C

contact us
Phone:+86 16626708626
WhatsApp/WeChat:+86 16626708626
Email: 3772179818@qq.com

PWB78434-01

Main features and advantages:
This circuit board is designed to handle an input voltage of 110Vac, making it suitable for a wide range of industrial applications. It adopts advanced relay technology, which can accurately switch signals. The frequency response of 50Hz ensures compatibility with most standard electrical systems. The load capacity of the circuit board is up to 5 amperes, which can provide power and control for various electrical loads without any problems. It supports a maximum operating voltage of 220Vac, further expanding its compatibility. In terms of safety, it integrates powerful protection functions such as overload and short circuit protection, which can protect the safety of circuit boards and connected devices.

Choosing Bentley Nevada PWB78434-01 has multiple practical advantages. It adopts a sturdy and durable aluminum shell, designed to be durable. This not only protects internal components from physical damage, but also shields them from harsh environmental conditions such as extreme temperatures. This circuit board can operate reliably within a temperature range of -40 ° C to+85 ° C and is suitable for various industrial environments, including cold storage and high-temperature manufacturing factories.

Its high mean time between failures (MTBF) rating, MTBF > 100, 000 hours, ensuring long-term reliability. This significantly reduces downtime as there is no need for frequent replacement or maintenance. In industries that require continuous operation, such as 24/7 power generation or continuous flow manufacturing, this reliability is invaluable. It also reduces maintenance costs as there are fewer unexpected failures. The ability of this circuit board to handle high-capacity loads and its advanced protection functions help improve system efficiency, ensuring smooth and uninterrupted operation of industrial processes.

PWB78434-01

Application areas:
In power plants, it plays a crucial role in controlling and monitoring electrical systems. For example, it can be used to manage and control the switching of high-voltage relays for power flow within the factory. This circuit board is capable of processing high-voltage signals and has reliable performance in high-temperature environments, making it an ideal choice for this application.

In the manufacturing industry, especially in automotive factories, it can be used to control the electrical components of robot arms. These arms require precise electrical control to achieve accurate movement. Bentley Nevada PWB78434-01 ensures accurate signal transmission, enabling the robotic arm to perform tasks with high precision. In addition, hygiene and reliability are key in food and beverage processing plants, and the robust design and reliable performance of this circuit board make it suitable for controlling various electrical equipment such as conveyors and packaging machines.

PWB78434-01

Related products:
PWB78434-01C – This version has additional features or improvements over the standard PWB78434-01, such as enhanced signal processing capabilities or better resistance to specific environmental factors.
PWA78432-01- is a related module in the same product series, providing different input/output configurations or power processing capabilities, suitable for applications with specific requirements.

PWB78434-01

Installation and maintenance:
Before installing Bentley Nevada PWB78434-01 , it is necessary to verify its input voltage compatibility with the existing electrical system. Ensure that the voltage supply is stable and within the specified range of 110Vac. Check the circuit board for any signs of physical damage, such as bent pins or cracked casing. If the circuit board is to be installed in a system shared with other modules, make sure there is enough space for proper ventilation, as it can operate over a wide temperature range but still requires sufficient cooling to maintain optimal performance.

For continuous maintenance, connections should be checked regularly to ensure they are secure. Loose connections may cause signal interference or power issues. Monitor the performance of the circuit board by checking for any abnormal behavior, such as overheating or inconsistent signal switching. Visual inspection of the circuit board (to check for any signs of corrosion or component degradation) should also be included in maintenance routines. If possible, regular functional testing should be conducted to verify whether the circuit board operates within the specified parameter range.
