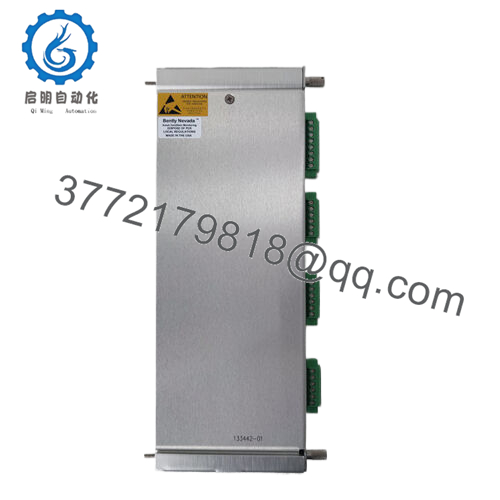

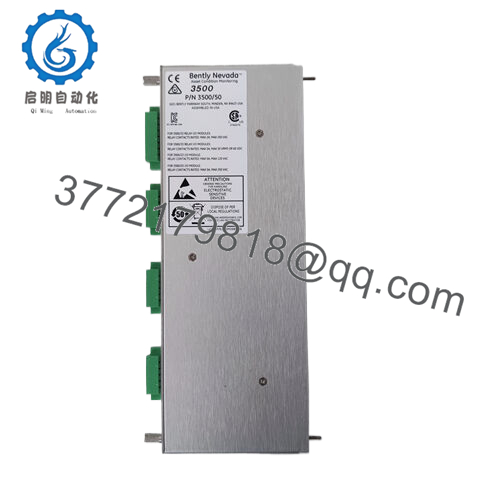

Bentley 3500/50 133442-01 Core Module

Description

Bentley 3500/50 133442-01 is a core module dedicated to speed and key phase monitoring, compatible with Bentley 3500 series monitoring systems.

3500/50 133442-01

It can simultaneously connect two sensor signals and support various types such as magneto resistive sensors and eddy current sensors. By processing and analyzing the signals collected by the sensors at high speed, it achieves accurate measurement of key parameters such as equipment speed, steering, key phase, and zero speed. This module is equipped with advanced digital filtering and anti-interference algorithms, which can effectively eliminate environmental electromagnetic noise and ensure the accuracy and stability of monitoring data.

3500/50 133442-01

Main features and advantages:
In actual operation, Bentley 3500/50 133442-01 small card will compare real-time monitoring data with the user’s preset alarm threshold. Once abnormal speed or zero speed false triggering occurs, it will immediately output an alarm signal through a relay and synchronously transmit the data to the central control system. In addition, with the help of the 3500 rack configuration software, users can flexibly set the measurement range, output mode, and other parameters of the module to meet personalized monitoring needs. The module supports a two out of three voting logic, and when paired with redundant configurations, it can significantly improve the reliability and security of the system, making it suitable for industrial scenarios that require extremely high stability.

Its high-precision measurement performance can help enterprises grasp the real-time operation status of equipment, detect potential problems such as speed fluctuations and abnormal start stop in advance, transform passive maintenance into active maintenance, effectively reduce unplanned downtime caused by equipment failures, and minimize production losses. The hot swappable design and simple installation method not only facilitate daily maintenance and replacement, but also enable rapid deployment during system operation, reducing engineering and time costs. The strong anti-interference ability and redundant support ensure the stable operation of the module in harsh industrial environments such as high temperature, high dust, and strong electromagnetic interference, providing long-term production support for enterprises.

3500/50 133442-01

Technical specifications:
Model 3500/50 133442-01
Brand Bentley Nevada
Type Speed and Key Phase Monitoring Module (Small Card)
Number of input channels: 2 channels
Input signal types: magnetic resistance sensor signal, eddy current sensor signal
Measurement range 0-50kHz (typical value)
Measurement accuracy ± 0.01%
Output type: Analog output: 4-20mA; Digital output: Relay contacts RS485/Modbus
Working voltage 24VDC
Working temperature range -30 ° C to+65 ° C
Installation method compatible with 3500 series standard rack, supports hot swapping
Interface/Bus 3500 Series Internal Bus
Compliance with international standards such as CE and RoHS

Contact Us
Phone:+86 16626708626
WeChat/WhatsApp:+86 16626708626
Email: 3772179818@qq.com

3500/50 133442-01

Application areas:
In the power industry, it is used to monitor the speed and start stop status of steam turbine generators, ensuring the stability and safety of the power generation process.
In the petrochemical industry, speed monitoring is carried out on rotating equipment such as compressors and pumps to ensure the continuity of the chemical production process.
In the metallurgical industry, real-time monitoring of the speed of equipment such as rolling mills and fans can assist in optimizing production parameters, improving product quality and production efficiency.

3500/50 133442-01

Related products:
Bentley 3500/42M: a four channel module that focuses on vibration and displacement monitoring, complementary to the 3500/50 function, and can work together to achieve comprehensive equipment status monitoring.
Bentley 3500/44M: Multi channel monitoring module, with advantages in data processing capability and channel quantity, suitable for centralized monitoring of complex equipment clusters.
Bentley 3500/53: Enhanced in speed measurement accuracy and communication capabilities, suitable for application scenarios with higher monitoring performance requirements.

3500/50 133442-01

Installation and maintenance:
Before installing the Bentley 3500/50 133442-01 small card, it is necessary to carefully confirm the compatibility between the sensor type and the module input channel to ensure accurate signal connection; Check the installation space and power supply stability of the 3500 series rack to ensure that the modules are securely installed.

During daily maintenance, regularly check the status of the module’s operation indicator lights and inspect the connection cables between sensors and modules for looseness or damage; Calibrate the module once every quarter to ensure the accuracy of measurement data; Every year, in conjunction with the equipment overhaul cycle, comprehensive functional testing of modules is conducted to promptly identify and resolve potential issues, ensuring the continuous and stable operation of Bentley 3500/50 133442-01 small trucks.
