Name: BENTLEY 135489-02 Advanced Machinery Monitoring Module | Qiming Automation
Brand: Bently Nevada

Description

The BENTLEY 135489-02 is an advanced monitoring module designed to be a core component of the BENTLEY Nevada 3500 machinery protection system. It acts as a high – performance data hub, bridging the gap between various sensors—such as proximity probes, accelerometers, and velocity transducers—and the central control and analysis units.

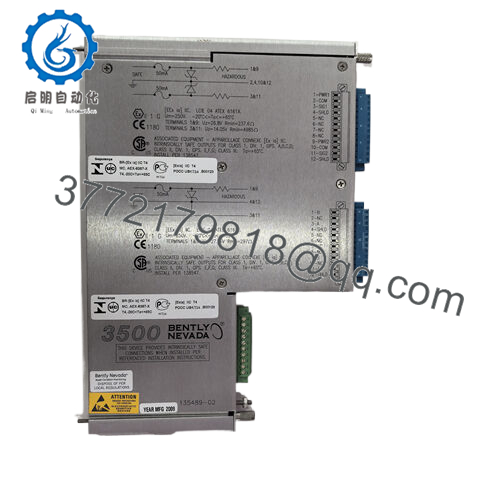

135489-02

Upon receiving raw electrical signals from sensors, the module immediately applies sophisticated filtering algorithms to eliminate background noise and interference. This ensures that only clean, reliable data is processed. The BENTLEY 135489-02 then converts these analog signals into digital format with remarkable precision, enabling rapid and accurate data transmission to the 3500 system’s mainframe via the backplane.

One of the key features of this module is its expanded channel capacity, allowing it to handle a greater number of sensor inputs compared to previous models. This scalability makes it ideal for large – scale industrial applications where multiple sensors are required to monitor complex machinery. The BENTLEY 135489-02 supports a wide range of communication protocols, including Modbus TCP/IP, Profibus, and the BENTLEY proprietary protocol, facilitating seamless integration with external control systems, SCADA platforms, and cloud – based analytics tools. Its built – in diagnostic functions continuously monitor the module’s internal health and the integrity of connected sensors, providing real – time alerts in case of any anomalies. This proactive approach to diagnostics helps prevent system failures and ensures the reliability of the entire monitoring system.

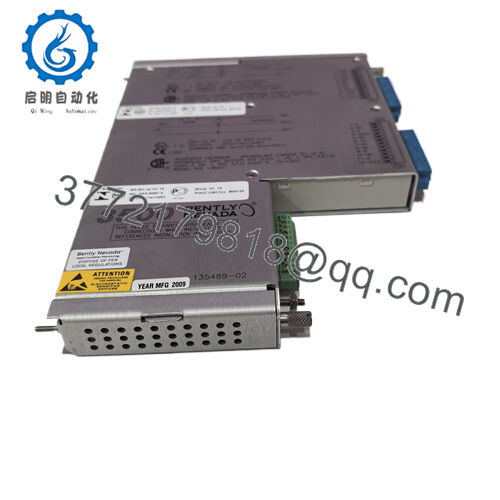

135489-02

Technical specifications:
Model Number 135489-02
Brand BENTLEY
Type Advanced Machinery Monitoring Module
Compatibility BENTLEY Nevada 3500 system
Input Channels 8 channels
Power Supply 24 VDC
Operating Temp Range -40°C to +70°C
Humidity Range 0% – 95% (non – condensing)
Communication Protocol Modbus TCP/IP, Profibus, BENTLEY proprietary
Dimensions (WxHxD) 180mm x 45mm x 110mm
Weight Approximately 0.75kg
Interface/Bus Connects to 3500 system backplane, Ethernet
Compliance CE, UL, ISO 9001, ATEX
Supported Protocols Modbus TCP/IP, Profibus, BENTLEY protocol
Typical Power Draw 6W

Contact Us
Phone:+86 16626708626
WeChat/WhatsApp:+86 16626708626
Email: 3772179818@qq.com

135489-02

Main features and advantages:

Selecting the BENTLEY135489-02 module offers significant real – world advantages that can transform industrial operations. Its enhanced 8 – channel design reduces the need for multiple monitoring modules in large – scale setups, simplifying system architecture and reducing hardware costs. The advanced signal processing capabilities ensure highly accurate data acquisition, minimizing the risk of false alarms and enabling maintenance teams to focus on genuine issues. This not only saves time and resources but also improves overall operational efficiency.

Engineered for durability, the BENTLEY 135489-02 can withstand harsh industrial environments, including high temperatures, humidity, and vibration. Its robust construction ensures long – term performance, reducing the frequency of module replacements and associated maintenance costs. The module’s compatibility with a wide range of sensors and communication protocols makes it highly versatile, allowing for easy integration with existing and future – proof industrial automation systems. Moreover, its built – in diagnostics enable predictive maintenance, empowering operators to identify potential issues before they escalate into costly breakdowns. By enabling proactive maintenance strategies, the BENTLEY 135489-02 helps extend equipment lifespan, optimize production schedules, and enhance the bottom line of industrial businesses.

135489-02

Application areas:

The BENTLEY 135489-02 module is widely deployed across various industries where precise and reliable machinery monitoring is essential. In power plants, it is used to monitor the health of steam turbines, generators, and other critical rotating equipment. By continuously analyzing vibration, displacement, and temperature data, it can detect early signs of issues such as rotor imbalance, bearing wear, or misalignment, ensuring the stable and efficient generation of electricity.

In the oil and gas industry, the module plays a crucial role in monitoring pumps, compressors, and motors in refineries and offshore platforms. In these harsh and hazardous environments, accurate and timely equipment monitoring is vital for safety and production efficiency. The BENTLEY 135489-02 provides real – time data on equipment conditions, allowing operators to proactively address potential failures, prevent costly production interruptions, and maintain the integrity of the facilities.

Manufacturing plants, especially those with high – speed and precision – critical machinery, also benefit significantly from this module. It can be used to monitor the performance of CNC machines, robotic arms, and conveyor systems, ensuring that production processes run smoothly and product quality remains consistent. By detecting and resolving issues early, manufacturers can avoid costly rework, reduce scrap rates, and meet production targets more effectively. Additionally, the module’s scalability makes it suitable for both small – scale operations and large – scale industrial complexes, adapting to the evolving needs of modern manufacturing.

135489-02

Related products:

BENTLEY 3500/44M – A multi – channel vibration and process variable monitor with advanced data analysis capabilities, suitable for more complex monitoring requirements.

BENTLEY 135490-02 – An upgraded version with enhanced analytics and additional input/output options, designed for large – scale industrial applications.

BENTLEY 135488-02 – A cost – effective alternative with basic monitoring functions, ideal for small – to medium – sized businesses or less critical machinery.

BENTLEY 135489-01 – The previous generation model, suitable for applications where the advanced features of the 135489-02 are not required.

BENTLEY 135491-02 – A variant with integrated wireless communication capabilities, enabling remote monitoring and control for enhanced flexibility.

135489-02

Installation and maintenance:

Before installing the BENTLEY 135489-02 module, it is essential to verify the compatibility of your existing BENTLEY Nevada 3500 system. Check the backplane to ensure there are available slots and that the power supply meets the module’s requirements. Confirm the specifications of all sensors intended for connection, ensuring they are fully compatible and properly calibrated. It is also advisable to update the system firmware to the latest version to ensure optimal performance and compatibility.

During the installation process, handle the module with care to avoid electrostatic discharge, which can damage its sensitive electronic components. Follow the detailed installation instructions provided by BENTLEY carefully, ensuring correct wiring and secure connections to the backplane and sensors. After installation, perform a comprehensive system check to verify that the module is communicating effectively with the 3500 system and that all sensors are transmitting data accurately.

For ongoing maintenance, regularly review the module’s diagnostic information through the 3500 system’s interface. Monitor the status indicators for any warning signs or error messages, which can indicate potential issues with the module or connected sensors. Periodically clean the module to remove dust, dirt, and other contaminants, especially in dusty industrial environments, as these can affect its performance over time. Schedule routine calibration of connected sensors at regular intervals as per the manufacturer’s recommendations to maintain the accuracy and reliability of the monitoring system. In case of any problems or uncertainties, consult the module’s user manual or contact BENTLEY’s technical support team for prompt assistance.
