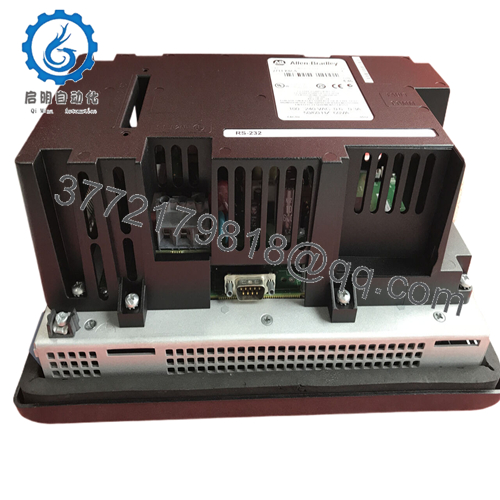

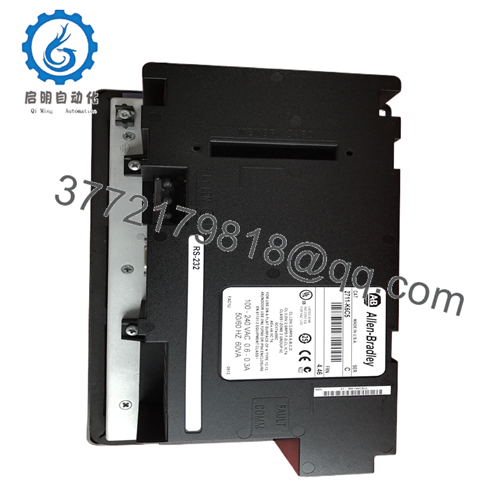

Allen Bradley 2711-K6C5 compact and feature rich color graphics terminal

Description

The Allen Bradley 2711-K6C5 is a compact and feature rich color graphics terminal designed to seamlessly integrate with Allen Bradley’s FactoryTalk View ME software and a wide range of Rockwell Automation control platforms, including MicroLogix, SLC 500, and ControlLogix. It serves as an interface between operators and automation systems, allowing users to send commands, view real-time process data, and monitor system status. With its 6-inch color display screen, the2711-K6C5 is able to present information in clear graphics, charts, and text format, allowing operators to quickly understand the current status of the system.

2711-K6C5

Technical specifications:
Model 2711-K6C5
Brand Allen Bradley
Type 6-inch color graphic terminal
Display screen size 6 inches
Display screen type: Color TFT
Installation method: Panel installation
Interface/Bus Ethernet/IP, DF1, DH485
Compliance CE, UL, cUL
Touch screen type: resistive

Contact Us
Phone:+86 16626708626
WeChat/WhatsApp:+86 16626708626
Email: 3772179818@qq.com

2711-K6C5

Main features and advantages:
Its intuitive user interface reduces the learning curve for operators, reduces the possibility of errors, and improves the efficiency of daily operations. High quality color display screens provide clear and detailed visualization of process data, enabling operators to quickly identify trends, anomalies, and potential issues, thereby promoting faster decision-making and more effective process control.

This terminal is sturdy and durable, with a wide operating temperature range, suitable for use in harsh industrial environments, ensuring reliable performance even under dust, moisture, and extreme temperature conditions. The seamless integration with Rockwell Automation control platform and communication protocol simplifies system design and implementation, reducing the time and effort required for installation and debugging. The built-in security features protect the automation system from unauthorized access and enhance overall system security. In addition, the ability to customize HMI interfaces using FactoryTalk View ME software enables companies to optimize terminal functionality to meet their specific operational needs, thereby increasing productivity and reducing operating costs in the long term.

2711-K6C5

Application areas:
In the food and beverage industry, it is used for monitoring and controlling processes on production lines, such as mixing, filling, and packaging. Operators can use this terminal to adjust production parameters, view real-time quality control data, and ensure that products meet strict regulatory standards. In the water and wastewater treatment industry, 2711-K6C5 is used to monitor the status of pumps, valves, and treatment processes, enabling operators to efficiently manage treatment plants and quickly respond to any changes in water quality or flow rate.

In the mining industry, as operations are typically carried out in harsh and remote environments, this terminal provides operators with a reliable interface to control heavy machinery, monitor equipment health, and manage production plans. Whether in industries that require precise process control, real-time monitoring, or efficient operator interaction, the Allen Bradley 2711-K6C5 has demonstrated its versatility and reliability in meeting the human-machine interaction requirements of industrial automation.

2711-K6C5

Related products:
2711-K10C15A8: A 10 inch color graphics terminal with a larger display screen, suitable for applications that require more extensive data visualization.
2711P-K7C20D8: Equipped with a 7-inch display screen and enhanced processing capabilities, suitable for situations requiring more complex HMI applications and advanced functional requirements.
2711-K5A15: Provides an economical and efficient solution for basic HMI requirements that do not require color displays.
2711-K6C18: Similar to 2711-K6C5, but with additional memory and processing capabilities, suitable for applications that require more data storage and faster performance.
2711P-RP6T: A sturdy panel mounted terminal designed for harsh industrial environments, providing enhanced durability and reliability under extreme conditions.
2711-K9C15: A 9-inch color graphic terminal that strikes a balance between display size and compactness, suitable for a wide range of industrial automation applications.
2711P-K12C20D8: Equipped with a 12 inch display screen, designed specifically for applications that require large-scale data visualization and complex control interfaces.

2711-K6C5

Installation and maintenance:
Before installing the Allen Bradley2711-K6C5 color graphics terminal, make sure that the input voltage of the power supply matches the specified input voltage range of the terminal. Choose a panel installation location that is easy for operators to access and can protect the terminal from excessive heat, moisture, and physical damage. When making wiring connections, please carefully follow the wiring diagram provided in the user manual to ensure proper connection with equipment in other automation systems. Verify that the communication settings on the terminal are correctly configured to match the protocol and address of the connected controller and device. In addition, install the latest version of FactoryTalk View ME software on compatible computers to ensure full functionality and access to the latest features and security updates.

For continuous maintenance, please regularly clean the surface of the touch screen with a soft, wear-resistant cloth to remove dirt, fingerprints, and other contaminants that may affect touch sensitivity. Regularly check the status indicator lights of the terminal to ensure normal operation and monitor any error messages or warning signals. Check for signs of wear, breakage, or looseness in the power and communication cables, as faulty cables may interrupt the operation of the terminal. Regularly backup the configuration of the terminal to prevent data loss in the event of hardware failure or software issues. If there are any issues, please refer to the user manual or contact Rockwell Automation’s technical support team for assistance in troubleshooting and resolving the problem.
