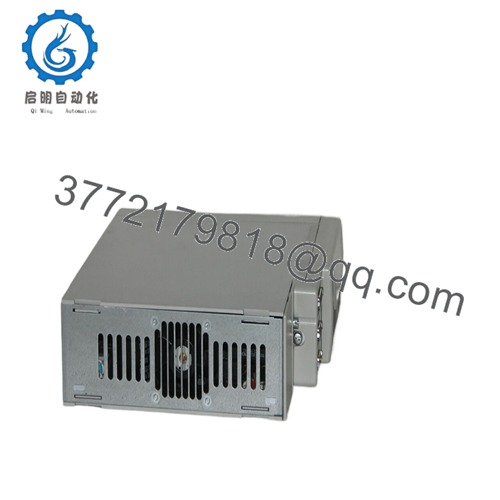

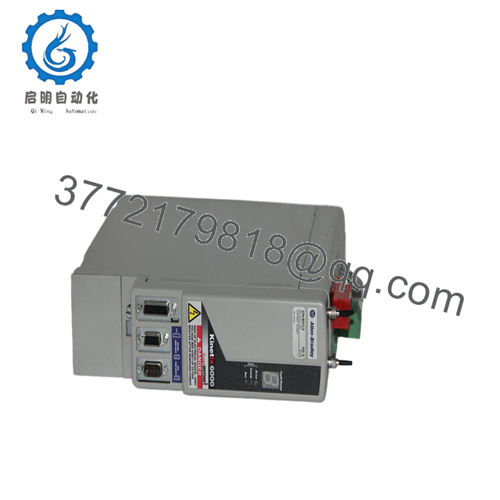

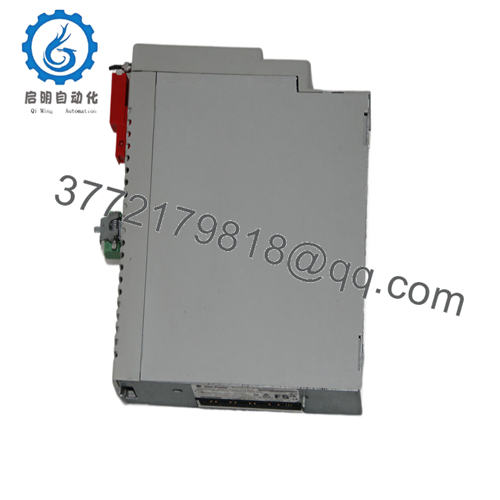

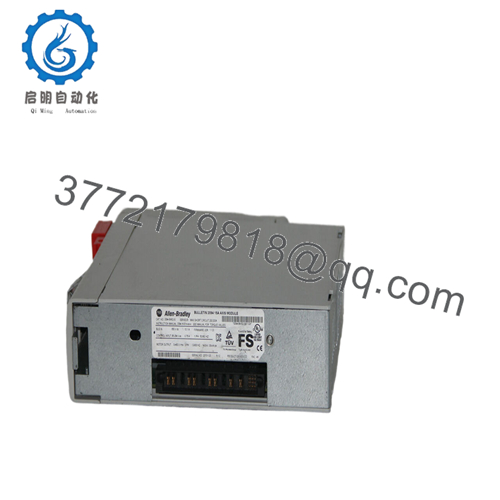

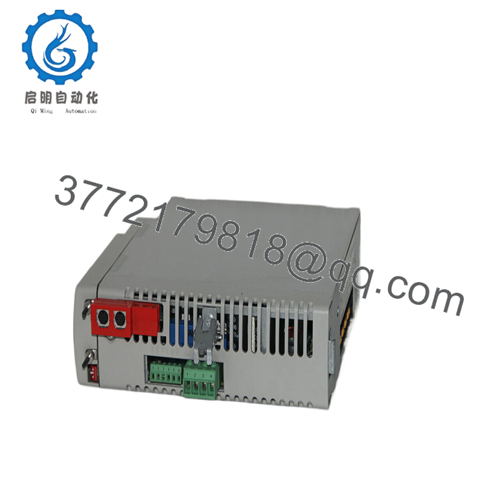

Allen Bradley 2094-BM02-S Dual axis Servo Drive Module

Description

The Allen Bradley 2094-BM02-S is an advanced dual axis servo drive module designed to seamlessly integrate with Allen Bradley’s Kinetix 5700 servo system and ControlLogix automation platform.

2094-BM02-S

It establishes communication channels with programmable logic controllers (PLCs) and other modules in the system by connecting to the backplane system. With the help of advanced motion control algorithms, this module can interpret control commands from PLC and convert them into precise electrical signals to simultaneously drive two servo motors. It supports multiple feedback devices, including encoders and rotary transformers, which can provide real-time position and speed data for each motor, thereby achieving closed-loop control and improving accuracy.

2094-BM02-S

Technical specifications:
Model 2094-BM02-S
Brand Allen Bradley
Type: Dual axis servo drive module
Installation method: Rack mounted (compatible with ControlLogix chassis)
Interface/Bus ControlLogix Backplane, Ethernet/IP
Compliance CE, UL, cUL
Supported feedback devices include encoders and rotary transformers
Control the position, speed, and torque of each axis in the control mode

Contact Us
Phone:+86 16626708626
WeChat/WhatsApp:+86 16626708626
Email: 3772179818@qq.com

2094-BM02-S

Main features and advantages:
Its ability to control two axes simultaneously simplifies system design, reduces the space required for multiple single axis drives, and achieves a more compact and cost-effective setup. The precise control of each axis ensures consistency and accuracy of motion, improves product quality, reduces scrap rates, and enhances production efficiency. This in turn brings significant cost savings to manufacturers.

This module is sturdy and durable, with a wide range of protection functions, including overvoltage, undervoltage, and short-circuit protection, which can protect the connected servo motors and other components from electrical damage, extend the service life of the equipment, and reduce maintenance costs. The seamless integration with Kinetix 5700 servo system and ControlLogix platform enables engineers to utilize familiar programming tools and environments, reducing the time and effort required for system implementation and debugging. The built-in diagnostic and monitoring functions enable the2094-BM02-S to achieve predictive maintenance, proactively identify potential issues before they escalate into system failures, help schedule maintenance during planned downtime, prevent high costs caused by unexpected production interruptions, and ensure continuous operation, which is crucial for maintaining competitiveness in the market.

2094-BM02-S

Application areas:
In the electronics manufacturing industry, it is used in surface mount machines to accurately place tiny components on circuit boards. The precise control of the two axes ensures the positioning accuracy of the components, improving the yield and quality of the final product. In the woodworking industry, it provides power for multi axis CNC milling machines and can perform precise and complex cutting operations on wood materials. The ability to synchronize two motion axes enables high-precision machining of complex shapes and designs.

In the printing and conversion industry, 2094-BM02-S is used for high-speed printing machines and label conversion machines. It can achieve smooth and coordinated movement of various components such as rollers and cutters, ensuring consistent printing quality and accurate label cutting. The Allen Bradley 2094-BM02-S is a reliable and versatile dual axis motion control solution for industries that require high-precision precision operations and for industries that require fast, coordinated multi axis motion for mass production.

2094-BM02-S

Related products:
2094-BM01-S: Single axis servo drive module, suitable for applications that require only one motion axis control, providing a more focused solution for simpler settings.
2094-BM03-S: Provides higher power output and is designed to drive larger and more powerful servo motors, suitable for heavy-duty industrial applications with demanding power requirements.
2094-BM02-SE: It has additional security features and provides functional safety capabilities, which are essential for applications that are critical to protecting personnel and equipment.
2094-BM02-SP: Designed specifically for high-performance applications, it features faster processing speeds and improved dynamic response, enabling fast and highly precise motion control in challenging scenarios.
2094-BM02-SR: Integrated with regenerative braking technology, it can achieve energy recovery during motor deceleration, making it an ideal choice for applications that prioritize energy efficiency.
2094-BM02-SD: 2094-BM02-S is designed specifically for space constrained automation settings, providing a space saving solution without compromising performance.
2094-BM02-SH: Designed to withstand high temperature environments, it has enhanced thermal management capabilities and ensures reliable operation even under harsh thermal conditions, making it suitable for industries with large temperature fluctuations.

Installation and maintenance:
Before installing the Allen Bradley 2094-BM02-S servo drive module, it is essential to carefully verify whether the input voltage supplied by the electrical system matches the specified input voltage range of the module. Ensure that the ControlLogix chassis has available slots suitable for the module and follow all necessary safety procedures, such as turning off the power and wearing appropriate protective gear to avoid electrical hazards. Carefully check the wiring connections between the servo drive, two servo motors, and feedback equipment to ensure correct polarity and good grounding to prevent signal interference and electrical faults. In addition, confirm that the firmware of the module and related components (such as PLC) has been updated to the latest version to obtain the latest features, performance enhancements, and security patches.

For continuous maintenance, regularly monitor the status indicator lights on the module to detect any signs of abnormal operation, such as error codes or illuminated warning lights. Regularly check the power and signal connections for signs of wear, overheating, or looseness, as these issues may affect the performance and reliability of the servo drive. Perform regular performance checks on each axis, including verifying motor speed accuracy, position control accuracy, and torque output, to ensure that both axes operate within the specified parameter range. It is recommended to stock up on spare components such as fuses, connectors, and even spare modules (if possible) for quick replacement in the event of a malfunction. Regularly review the diagnostic data collected by the module to identify any trends or potential issues, achieve proactive maintenance, and prevent unexpected failures from affecting production.
