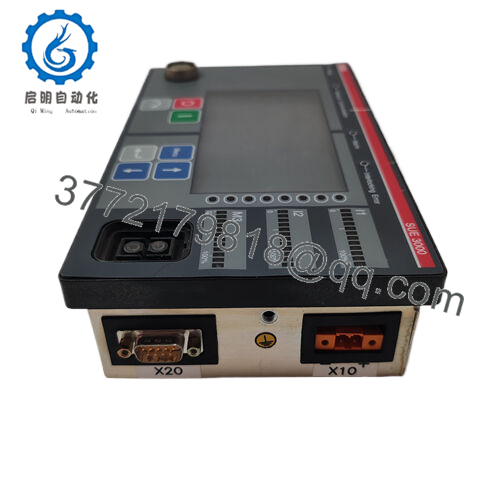

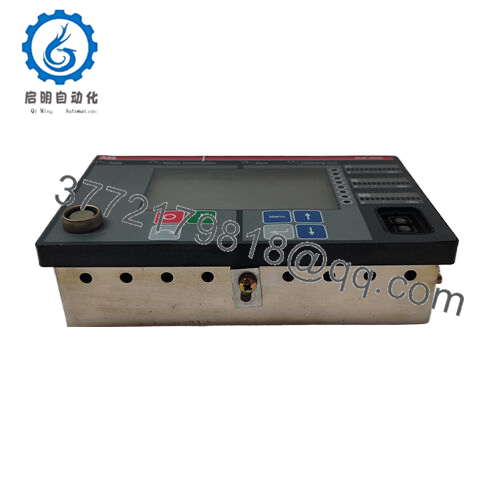

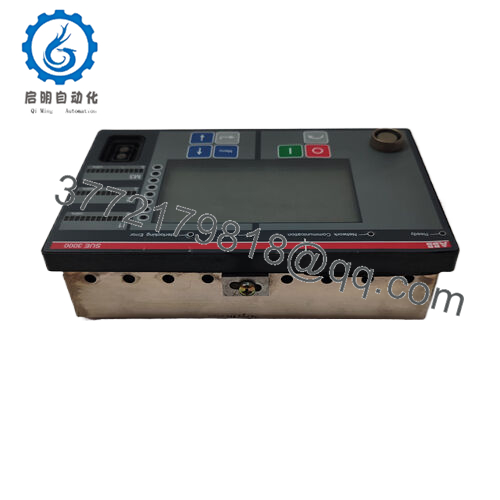

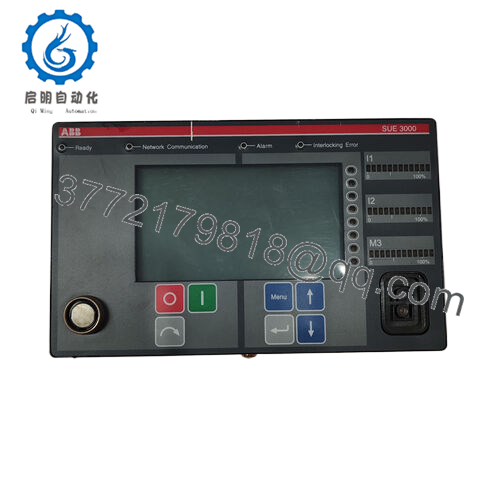

ABB SUE3000 1VCF750090R0804 High speed Motor Bus Switching System

ABB SUE3000 1VCF750090R0804 is a high-speed motor bus switching system. It combines optimized ABB detection equipment with magnetic high-speed vacuum circuit breakers. This combination results in an extremely short switching time between two synchronous incoming power supplies, only 30 milliseconds (1 and a half cycles). When there is a malfunction or problem with the main power supply, the SUE3000 will quickly and automatically switch to the backup power supply, ensuring that the connected devices continue to operate without interruption.

Model number SUE3000 1VCF750090R0804
Brand ABB
Type: High speed motor bus switching system
Input voltage compatible with common industrial voltage levels
Designed for operation within a typical industrial temperature range, suitable for the operating temperature range
The installation method is suitable for standard switchgear installation configuration
Size approximately 2cm x 19.8cm x 26.2cm
Weight approximately 0.4 kilograms
Multiple interfaces/buses including Ethernet, supporting multiple protocols
Compliance with CE and RoHS
Supports protocols IEC 61850-8-1 MMS, IEC 60870-5-103, Ethernet interface Modbus TCP、Modbus RTU、Profibus DP、ABB SPA
Typical low-power design with low power consumption

Categories: , , , , Brand:

Description

ABB SUE3000 1VCF750090R0804 is a high-speed motor bus switching system. It combines optimized ABB detection equipment with magnetic high-speed vacuum circuit breakers. This combination results in an extremely short switching time between two synchronous incoming power supplies, only 30 milliseconds (1 and a half cycles). When there is a malfunction or problem with the main power supply, the SUE3000 will quickly and automatically switch to the backup power supply, ensuring that the connected devices continue to operate without interruption.

SUE3000 1VCF750090R0804

SUE3000 1VCF750090R0804

It can be easily integrated into new and existing switchgear settings, supporting all common voltage levels. This system is designed to interface with various control platforms and seamlessly integrate into the overall automation architecture. It also offers four different motor bus switching modes, providing flexibility to meet different application needs. In terms of communication, it supports multiple protocols such as IEC 61850-8-1 MMS, IEC 60870-5-103, Ethernet interface, Modbus TCP, Modbus RTU, and Profibus DP, enabling effective communication with other devices in the system.

SUE3000 1VCF750090R0804

SUE3000 1VCF750090R0804

Technical specifications:
Model number SUE3000 1VCF750090R0804
Brand ABB
Type: High speed motor bus switching system
Input voltage compatible with common industrial voltage levels
Designed for operation within a typical industrial temperature range, suitable for the operating temperature range
The installation method is suitable for standard switchgear installation configuration
Size approximately 2cm x 19.8cm x 26.2cm
Weight approximately 0.4 kilograms
Multiple interfaces/buses including Ethernet, supporting multiple protocols
Compliance with CE and RoHS
Supports protocols IEC 61850-8-1 MMS, IEC 60870-5-103, Ethernet interface Modbus TCP、Modbus RTU、Profibus DP、ABB SPA
Typical low-power design with low power consumption

Contact Us
Phone:+86 16626708626
WhatsApp/WeChat:+86 16626708626
Email: 3772179818@qq.com

SUE3000 1VCF750090R0804

SUE3000 1VCF750090R0804

Main features and advantages:
By minimizing production interruptions to the greatest extent possible, it significantly reduces the associated economic losses. For example, in a manufacturing plant, a production shutdown caused by a power failure can cost thousands or even millions of dollars, considering the loss of production time, damaged products, and potential customer dissatisfaction.SUE3000 1VCF750090R0804 helps prevent such situations from occurring, thereby improving productivity and profitability.

Its fast switching time and high-speed operation reduce engineering costs. During the power switching process, there is no need for complex and time-consuming manual intervention. The built-in diagnostic and monitoring functions of the system also simplify maintenance work. By continuously monitoring the incoming power supply, busbars, and circuit breakers involved, potential problems can be detected early and proactive maintenance can be carried out to reduce the risk of unexpected failures. This not only saves time, but also reduces maintenance costs in the long run.

SUE3000 1VCF750090R0804

SUE3000 1VCF750090R0804

Application areas:
ABB SUE3000 1VCF750090R0804 is widely used in power plants and plays a critical role in maintaining the continuous operation of key equipment such as generators, pumps, and control systems. Continuous operation is crucial in meeting the electricity demand of consumers in the power generation environment. SUE3000 1VCF750090R0804 ensures that the operation of the power plant will not be significantly disrupted in the event of any power fluctuations or interruptions.

It is also deployed in the oil and gas industry, which typically operates under harsh conditions. Whether on offshore platforms or in refineries, reliable electricity is needed to keep pumps, compressors, and other equipment running. The SUE3000 1VCF750090R0804 is capable of withstanding challenging environmental conditions, including high humidity, extreme temperatures, and exposure to corrosive substances, while still providing a reliable high-speed power switching solution. In the manufacturing industry, especially on high-speed production lines, SUE3000 1VCF750090R0804 ensures uninterrupted production processes, achieving efficient and continuous production.

SUE3000 1VCF750090R0804

SUE3000 1VCF750090R0804

Related products:
SUE3000- Plus – With more features, it is suitable for more complex industrial applications and provides a higher degree of customization.
ABB SUE2500- Suitable for low demand applications with less stringent speed requirements.
SUE3000 EX – Designed for use in hazardous environments, such as chemical plants or refineries with high explosion risks.
SUE3000- RTU – Optimized for remote terminal unit (RTU) applications with enhanced communication capabilities, suitable for remote monitoring and control.
SUE3000- HV – Suitable for applications that require handling higher voltage levels, suitable for large distribution systems.
SUE3000- Redundant – provides additional reliability assurance for critical mission applications.
SUE3000- Compact – Designed to be more compact, suitable for installation locations with limited space, while not affecting performance.





Installation and maintenance:
Before installing ABB SUE3000 1VCF750090R0804 , it is essential to verify the compatibility of the switchgear and control system. Check if the voltage level, communication protocol, and physical dimensions of the module meet the requirements of the existing settings. Ensure sufficient installation space and that the cooling system in the installation area can handle the heat generated by the equipment. In addition, it is important to ensure that the firmware of SUE3000 is up-to-date, as this can improve performance and fix any known vulnerabilities.

During daily maintenance, regularly check the LED status indicator lights on the equipment. These indicator lights can provide valuable information about the system’s operating status, such as power supply, communication, and any fault conditions. Regularly check the connectors to ensure they are secure and clean, as loose or corroded connectors may cause signal interference or power switching issues. It is recommended to conduct a comprehensive performance test once a year to ensure that the SUE3000 1VCF750090R0804 continues to operate at its optimal level. This test should include checking switching time, communication reliability, and overall system stability.
