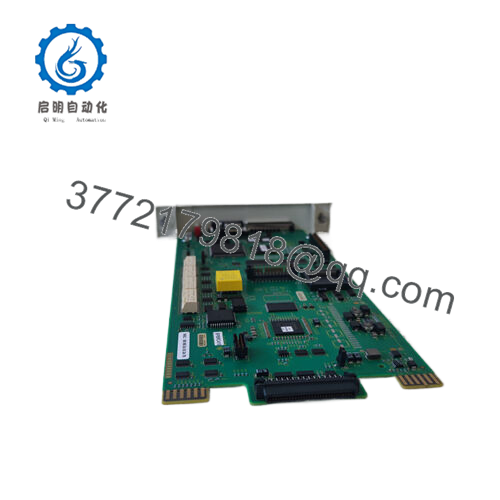

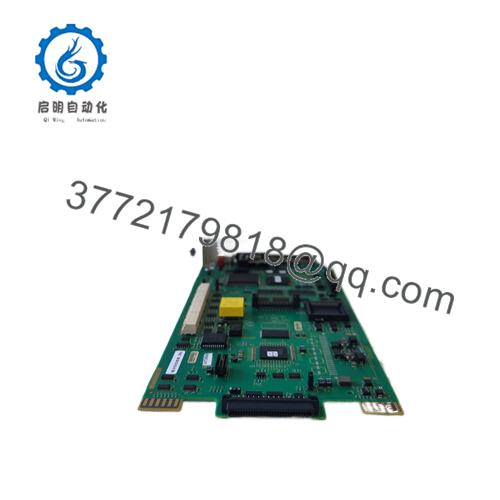

ABB SPBRC4000000 High Performance Industrial Protocol Gateway and Bridge Controller

Description

ABB SPBRC400000 Product Description:
ABB SPBRC400000 is a high-performance industrial protocol gateway and bridge controller, which is ABB’s next-generation automation platform (including ABB Ability) ™ The core components of Symphony Plus. From a functional perspective, it is a universal translator that supports bidirectional communication for over 30 industrial protocols, ranging from traditional fieldbuses such as DeviceNet to OPC UA based on Time Sensitive Networks (TSN).

SPBRC4000000

In the control system architecture, ABB SPBRC400000 is located at the core of the layered network and interfaces with edge devices, control layers, and enterprise systems. Its dual core ARM Cortex-A72 processor (1.5 GHz) and 8 GB of memory can process multiple protocols in parallel, making it suitable for large distributed control systems (DCS) or monitoring and data acquisition (SCADA) systems that require sub millisecond latency. For system integrators, the value lies in reducing hardware complexity: a single module can replace ten single protocol gateways, saving 50% of panel space and simplifying maintenance processes.

The uniqueness of this module lies in its local support for ABB’s industrial analysis suite, allowing engineers to preprocess data at the edge (such as noise filtering, data aggregation) before transmitting it to the cloud. This edge computing capability can reduce network congestion and ensure compliance with data sovereignty regulations in the European Union (GDPR) and the United States (CCPA).

SPBRC4000000

Technical specifications:
Model ABB SPBRC400000
Brand ABB
Type: Industrial Protocol Gateway and Bridge Controller
Power supply 24 V DC (dual redundant) or 120-240 VAC, 50/60 Hz
Working temperature -40 ° C to+85 ° C
Installation method: 1U rack mounted or DIN rail (optional kit)
Dimensions 44 mm (height) x 482 mm (width) x 250 mm (depth)
Weight 3.2 kg
Four 10 Gbps SFP+interfaces, four Gigabit Ethernet interfaces, two RS-485/RS-232 interfaces, and one USB 3.0 interface
Supported protocols include Profibus, Modbus, EtherCAT, Ethernet/IP, OPC UA, MQTT, TSN, CANopen
Certified CE, UL, CSA, IEC 62443-4-2, ATEX (Zone 1) IEC 61000-6-2/-6-3
Active cooling system (fan with speed control)
Maximum data throughput of 10 Gbps
Edge computing Python script, built-in data preprocessing engine

Contact Us
Phone:+86 16626708626
WeChat/WhatsApp:+86 16626708626
Email: 3772179818@qq.com

SPBRC4000000

Application areas:
In large industrial environments that require high scalability and protocol flexibility, ABB SPBRC400000 stands out as the next generation bridging controller designed specifically for complex automation ecosystems. This module is designed for industries such as oil and gas, power generation, and intelligent manufacturing, solving the unified problem of thousands of devices in hybrid networks (from traditional fieldbuses to cutting-edge industrial Internet of Things (IIoT) platforms).

Taking a multinational refinery that adopts a distributed control system as an example,ABB SPBRC400000 can serve as a central hub, integrating the Profibus DP network for managing tank level sensors, a Modbus TCP based flow computer, and a security system using Ethernet/IP protocol into a unified network. Its ability to process over 10000 data points simultaneously ensures real-time synchronization of critical processes such as crude oil distillation and gas compression, avoiding inefficiencies or safety accidents caused by delays. In smart factories, this module can seamlessly integrate robotic arms using EtherCAT, visual inspection systems using Ethernet/IP, and Manufacturing Execution System (MES) platforms based on OPC UA, enabling manufacturers to implement dynamic production scheduling based on real-time data from the entire factory.

Engineers value the role of ABB SPBRC400000 in driving industrial digital transformation. For example, in renewable energy plants equipped with traditional monitoring and data acquisition (SCADA) systems and new IoT sensors, this module can convert data from Modbus RTU wind turbine controllers into MQTT format for cloud analysis, enabling predictive maintenance of turbines and optimizing energy output. Its robust design and advanced safety features make it indispensable in harsh environments such as offshore platforms or chemical plants, where reliability and network security are of paramount importance.

SPBRC4000000

Related products:
SPBRC410- Mid end Modbus TCP Bridge Controller, suitable for small systems that require integration with ABB Symphony Plus.
SPBRC5000- High latency IoT edge application variant that supports LTE/5G connectivity in addition to industrial protocols.
PM8000 Series – ABB Ability ™ CPU module, integrated with SPBRC400000, used for end-to-end automation logic in large DCS systems.
CI8000 series – fieldbus interface modules (such as Profibus, EtherCAT), expanding the connectivity of SPBRC400000 to traditional devices.
TB8000- High density terminal block system, suitable for fast on-site wiring in modular installation.
RIO8000- Remote I/O coupler, supporting fiber optic links up to 20 kilometers, compatible with distributed SPBRC400000 settings.
CM6000- Advanced communication module for ABB drives, supporting direct TSN integration of SPBRC400000 in motion control systems.

SPBRC4000000

Installation and maintenance:
Considerations before installation
Network Design: Deploy ABB SPBRC400000 in secure network segments such as Demilitarized Zones (DMZ) to isolate Operations Technology (OT) and Information Technology (IT) networks. Simulate protocol traffic using ABB’s network design tools and optimize data routing before physical installation.
Thermal management: Ensure a minimum air flow of 50 CFM in a closed cabinet to maintain the operating temperature below+70 ° C. For outdoor installation, use a sunshade kit to reduce solar heat gain.
Redundancy setting: Configure dual power supplies and network interfaces (N+1 redundancy) for critical applications to ensure fault transfer within 20 ms to meet safety system requirements.
maintenance agreement
Monthly diagnosis: using ABB Ability ™ State monitoring is used to track CPU load, memory usage, and protocol latency. Investigate any channel with an error rate exceeding 0.1%.
Firmware update: Schedule semi annual updates during planned downtime, prioritizing updates that enhance security or add new protocol support (such as 5G based OPC UA).
Hardware inspection: Conduct a visual inspection once every quarter to check for loose connections, running fans, and good sealing of the casing. In dusty environments, replace the air filter every six months to maintain cooling efficiency.
