ABB REM615 HCMJAEAADABC2BNN11E is a specialized motor protection and control relay, belonging to ABB’s well-known Relion ® The 615 protection and control product series in the product line.

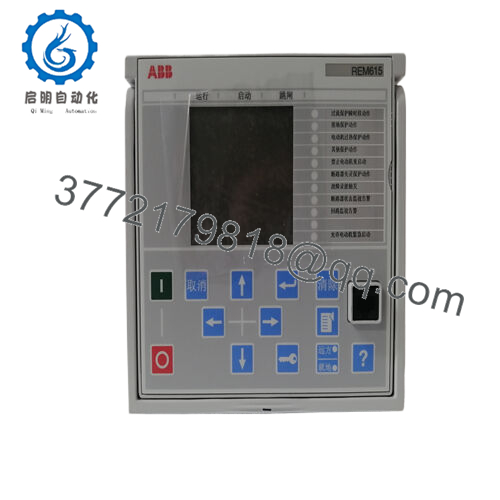

ABB REM615 HCMJAEADABC2BNN11E
It is the core hub for motor related operations. This relay interfaces with various field devices such as current transformers, voltage transformers, and contactors, which are crucial for monitoring and controlling the electrical parameters of motors. It supports multiple communication protocols, including IEC 61850 1st and 2nd editions, Modbus, DNP 3, and IEC 60870-5-103. This extensive protocol support enables seamless integration with other components in the substation automation network, enabling efficient data exchange and remote monitoring. ABB REM615 HCMJAEAADABC2BNN11E adopts a modular and compact design, which not only facilitates installation in standard cabinets, but also simplifies maintenance work as individual components can be easily replaced. It has advanced self diagnostic functions that can continuously monitor its internal status, detect any potential faults in a timely manner, and ensure high reliability operation. This relay provides a comprehensive set of protection functions. It can achieve motor start monitoring, ensuring smooth motor start and no abnormal conditions. It also provides load loss monitoring function, which is crucial for detecting whether the motor is operating under abnormal load conditions. Thermal overload protection can prevent the motor from overheating due to excessive current, while motor load jam protection plays a role when the motor encounters mechanical blockage. Phase sequence reversal protection can prevent motor damage in the event of a power phase sequence error.

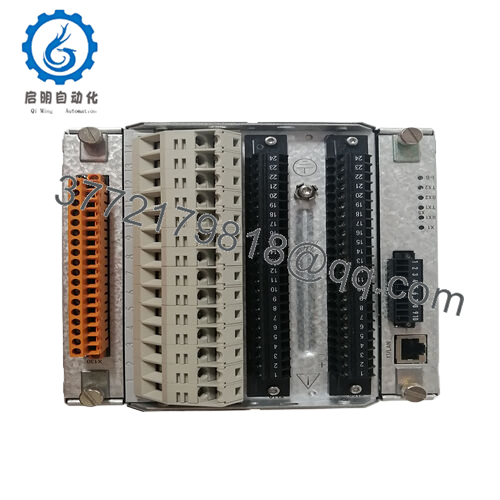

ABB REM615 HCMJAEADABC2BNN11E
Technical specifications:
Model REM615 HCMJAEAADABC2BNN11E
Brand ABB
Type: Motor protection and control relay
Input voltage 110V-220V AC
Installation method: DIN rail installation or panel installation
Dimensions: Width: 220 millimeters, Height: 225 millimeters, Depth: 170 millimeters
Weight approximately 4.5 kilograms
Interface/Bus Ethernet RS 485、Profibus DP
Certification of CE, RoHS, and other related industry standards
Support protocol IEC 61850 1st and 2nd editions Modbus、DNP 3、IEC 60870 – 5 – 103
Typical power consumption 5W
Contact Us
Phone:+86 16626708626
WeChat/WhatsApp:+86 16626708626
Email: 3772179818@qq.com

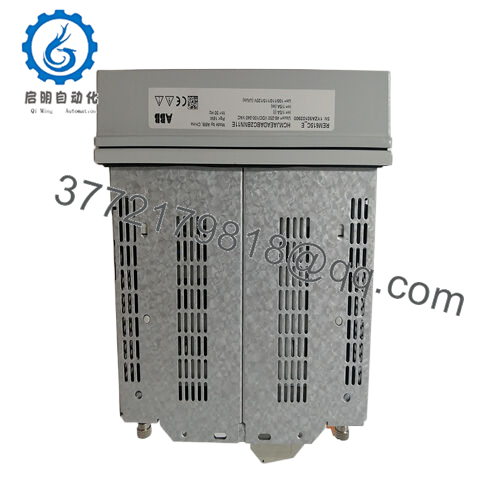

ABB REM615 HCMJAEADABC2BNN11E
Main features and advantages:
Its sturdy and durable design enables it to withstand the harsh operating conditions commonly found in industrial plants, ensuring long-term stable performance. The advanced protection function is a significant advantage, which can quickly detect and respond to electrical faults, minimize the risk of motor damage, and reduce unplanned downtime. With its precise measurement capability, operators can closely monitor the performance of the motor, thereby achieving better energy management and cost savings. The modular and user-friendly design reduces engineering costs during installation and system upgrades, making it easier to integrate into existing settings. By following strict industry standards, it provides peace of mind in terms of the safety and reliability of motor protection systems.
Application areas:
In the manufacturing industry, it is commonly used to protect and control motors in various equipment, such as pumps, which are crucial in fluid transport in industrial processes. Fans are also crucial for ventilation and cooling in factories, and also benefit from the protection of this relay. Conveyor belts are the backbone of material transportation in many production lines, relying on ABB REM615 HCMJAEAADABC2BNN11E to ensure smooth and reliable operation.
In process industries, such as chemical plants, this relay protects the motors used for agitators and mixers, which require continuous and stable operation to ensure the progress of chemical reactions. In food and beverage production, the motors in the filling and packaging equipment are protected by ABB REM615 HCMJAEAADABC2BNN11E to ensure the integrity of the production process.
Related products:
ABB REM615 HCMZAEAADABCZDNN11G: Equipped with enhanced functionality or communication capabilities, suitable for more modern and complex industrial settings.
ABB REM610: With basic motor protection functions, it is a more cost-effective choice for applications with lower requirements.
ABB REF542PLUS: a multifunctional protective relay that can also be used for some motor related protection tasks, providing a wider range of protection and control functions for more comprehensive system management.
ABB REF615: Although primarily designed for feeder protection, it can be adapted for certain motor protection scenarios in small systems, providing alternative solutions in specific situations.
ABB REG216: focuses on generator protection, but in systems that require integrated protection and control of both generators and motors, there may be some functional similarities that can be considered for use.
ABB REM615C: Specific configurations or optimizations have been made for specific industries or applications, providing a more customized solution compared to the standard ABB REM615 HCMJAEAADABC2BNN11E.
ABB REM615D: It has different communication options or additional features, making it suitable for applications with specific communication requirements or more complex control needs.
Installation and maintenance:
Before installing ABB REM615 HCMJAEAADABC2BNN11E, it is necessary to carefully check the compatibility of the communication protocol with the existing substation automation system. Ensure that the input voltage and current ratings of the connected sensors and devices meet the requirements of the relay. Adequate space should be provided around the relay to ensure good ventilation and prevent overheating. Verifying and updating firmware to the latest version can improve the performance of relays and add new features or safety patches.
For daily maintenance, regularly monitor the LED status indicator lights on the relay to quickly identify any abnormal situations. Regularly check the connectors for signs of wear, corrosion, or loose connections, as these can affect the reliability of the relay. Conducting routine tests at least once a year, such as protection function testing and communication integrity checks, helps ensure the continuous and effective operation of ABBREM615 HCMJAEAADABC2BNN11E.
