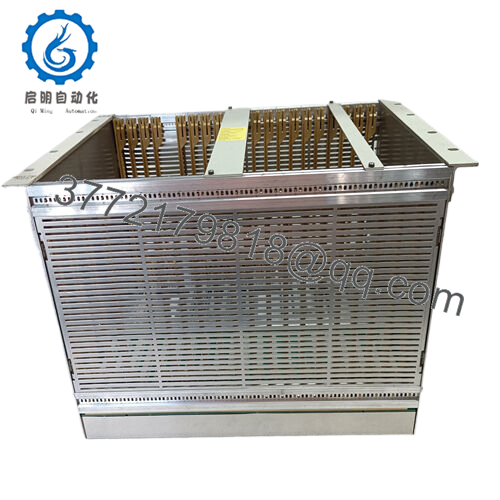

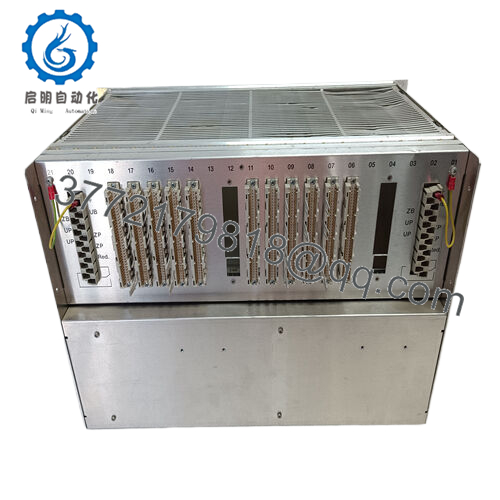

ABB REG216 is a specialized generator protection and control relay. It is located at the core of the generator protection system and closely interfaces with various components that monitor the electrical parameters of the generator, such as current and voltage sensors.
REG216
This relay supports multiple communication protocols, including IEC 60870-5-103, which enables seamless integration with other devices in the substation automation network, enabling efficient data exchange and remote monitoring. It can be easily integrated into different control platforms and chassis systems. The ABB REG216 adopts a modular design, making installation and maintenance easy as individual components can be replaced or upgraded without major interruptions. It also has advanced self diagnostic functions, which can continuously monitor its internal status, timely detect any potential faults, and ensure high reliability operation. This relay is capable of performing various protection functions, ranging from basic overcurrent and overvoltage protection to more complex functions such as demagnetization protection and unbalanced load protection, making it a multifunctional component in generator protection.
REG216
Technical specifications:
Model REG216
Brand ABB
Type: Generator protection and control relay
Working temperature range -25 ° C to+55 ° C
Installation method: DIN rail installation or panel installation
Dimensions: Width: 144 millimeters, Height: 175 millimeters, Depth: 150 millimeters
Weight approximately 2 kilograms
Interface/Bus RS-485, Ethernet (optional), supports multiple fieldbus options
Certification of CE, RoHS, and other related industry standards
Supports protocols IEC 60870-5-103 and Modbus
Contact Us
Phone:+86 16626708626
WeChat/WhatsApp:+86 16626708626
Email: 3772179818@qq.com
REG216
Main features and advantages:
Its sturdy structure enables it to withstand the harsh operating conditions commonly found in power plants and industrial facilities, ensuring long-term stable operation. The advanced protection algorithm embedded in the relay significantly reduces the risk of generator damage caused by electrical faults, and reduces unplanned power outages and related maintenance costs. With its precise measurement capability, it enables operators to optimize the performance of the generator, thereby improving energy efficiency and saving costs. The modular and user-friendly design of ABB REG216 reduces engineering costs during installation and system upgrades, making it easier to integrate into existing setups. In addition, by following strict industry standards, it is reassuring in terms of the safety and reliability of the generator protection system.
REG216
Application areas:
In traditional thermal power plants, it protects large generators and ensures stable generation and distribution of electricity. The rapid action protection function is crucial for preventing generator damage in the event of sudden electrical interference.
In renewable energy power plants such as wind farms and solar power plants with backup generators, ABB REG216 protects the generators, helping to maintain reliable power supply during major energy fluctuations. In large industrial complexes with self owned power plants, it ensures the continuous operation of generators, which is crucial for maintaining smooth production line operation and avoiding expensive shutdowns.
Related products:
ABB REG216C: With additional communication interfaces and more advanced protection functions, it is suitable for modern and highly automated power systems.
ABB REG215: With basic generator protection functions, it is a more cost-effective choice for power systems with simpler configurations.
ABB REF542PLUS: a multifunctional protective relay that can also be used for generator protection, providing a wider range of protection and control functions for more comprehensive system management.
ABB REF615: primarily designed for feeder protection, but can be adapted for some generator related protection tasks in small systems, providing alternative solutions in specific scenarios.
ABB REG670: A high-end generator protection and control solution with rich features, suitable for large critical power generation applications that require the highest level of protection and control.
Installation and maintenance:
Before installing ABB REG216, it is necessary to carefully check the compatibility of the communication protocol with the existing substation automation system. Ensure that the input voltage and current ratings of the connected sensors and devices meet the requirements of the relay. Adequate space should be provided around the relay to ensure good ventilation and prevent overheating. Verifying and updating firmware to the latest version can improve the performance of relays and add new features or safety patches.
For daily maintenance, regularly monitor the LED status indicator lights on the relay to quickly identify any abnormal situations. Regularly check the connectors for signs of wear, corrosion, or loose connections, as these can affect the reliability of the relay. Conducting routine tests at least once a year, such as protection function testing and communication integrity checks, helps ensure the continuous and effective operation of ABBREG216.
