ABB PFEA112-65 3BSE030369R0065 Product Introduction:
ABB PFEA112-65 3BSE030369R0065 is an advanced tension measurement and control unit. It is an important component of industrial automation machinery, especially indispensable in systems that require precise tension management.

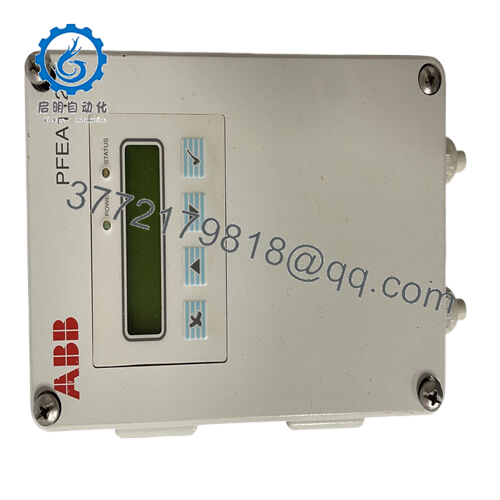

ABB PFEA112-65 3BSE030369R0065
As a tension electronic module, it is designed to seamlessly connect with various sensors and actuators. This unit can be integrated into different control architectures, whether it is ABB led industrial systems or heterogeneous systems from different manufacturers (as long as they have the corresponding communication protocols). In industrial control circuits, PFEA112-65 is at the core position. It receives signals from weighing sensors or other tension sensing devices, processes the incoming data using advanced algorithms, and then sends control signals to actuators (such as motors or brakes) to adjust the tension accordingly.
For engineers and system integrators, PFEA112-65 is a blessing. Its user-friendly interface allows for quick and easy configuration of parameters. This means that operators can quickly adjust tension control settings based on different materials, production speeds, and process requirements. This not only simplifies the initial setup and debugging of the tension control system, but also reduces the time for troubleshooting, making it an efficient and reliable choice for industrial applications.

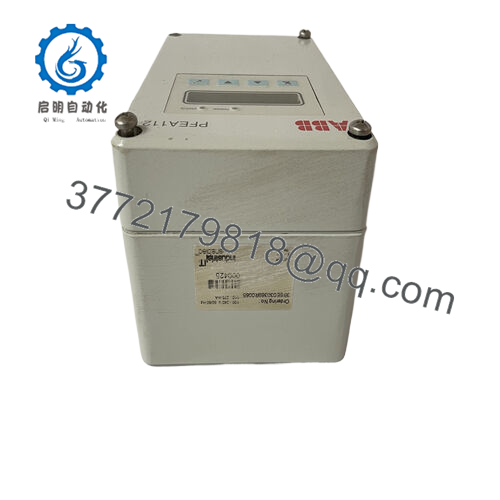

ABB PFEA112-65 3BSE030369R0065
Technical specifications:
Model PFEA112-65 3BSE030369R0065
Brand ABB
Type tension measurement and control unit
Communication protocols Modbus, Profibus, DeviceNet
The input signal comes from a weighing sensor or other tension sensing device
Output signal for control signal of tension applying mechanism
Working temperature [-20 ° C to+60 ° C]
Installation method: DIN rail installation, can be enclosed to adapt to harsh environments (such as IP65/NEMA 4 enclosure options)
Size 13 cm x 21.6 cm x 10.2 cm]
Weight [2.05 kg]
Compliance obtained ABBE certification, compliant with RoHS Directive 2011/65/EU+AD 2015/863/EU, EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
Contact Us
Phone:+86 16626708626
WhatsApp/WeChat:+86 16626708626
Email: 3772179818@qq.com

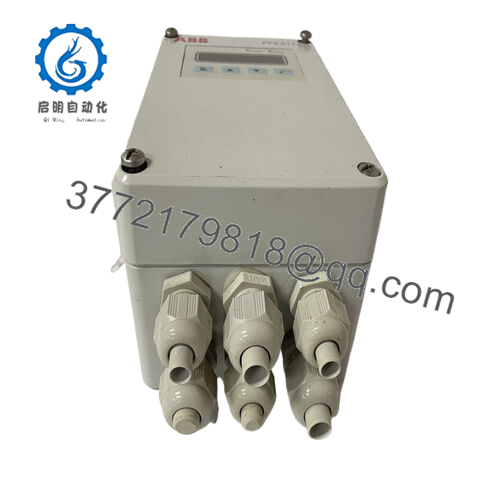

ABB PFEA112-65 3BSE030369R0065
Main features and advantages:
One of the most striking aspects of ABB PFEA112-65 3BSE030369R0065 is its excellent measurement accuracy. It can accurately measure tension over a wide range, with extremely high resolution, and can achieve small and precise adjustments. This precision is crucial for industries where even small changes in tension can have a significant impact on product quality. For example, in a steel rolling mill, the tension of the steel strip must be maintained within extremely strict tolerances to ensure consistent thickness and smooth surface. PFEA112-65 can easily achieve this and help produce high-quality steel products.
In terms of hardware design, the unit has been carefully designed to withstand the harshest industrial conditions. Its sturdy structure can resist vibration, electrical interference, and temperature fluctuations. This makes it suitable for installation in factories where heavy machinery generates a large amount of vibration during operation, or in outdoor applications exposed to extreme weather conditions. Despite its sturdy structure, PFEA112-65 is compact in size, making it easy to install in small spaces such as control cabinets or production machinery.
Compatibility is a major advantage of PFEA112-65. It supports multiple communication protocols, including Modbus, Profibus, and DeviceNet. This enables seamless communication with other devices in the automation network, such as programmable logic controllers (PLCs), human-machine interfaces (HMIs), and other sensors and actuators. This interoperability enables engineers to build comprehensive, interconnected automation systems that operate harmoniously.
In the long run, ABB PFEA112-65 has excellent reliability. Its carefully designed thermal management system ensures that the unit can operate at optimal temperature even during prolonged high load operation. This not only extends the service life of the module, but also reduces the need for frequent maintenance and replacement, saving the enterprise a lot of long-term costs.
Application areas:
Maintaining constant tension is a key factor in ensuring product quality and production continuity in the complex industrial operation system. ABB PFEA112-65 3BSE030369R0065 has become an essential tool for multiple industries, providing precise tension control solutions.
In the printing industry, the process from raw paper or film to high-quality printed products is full of challenges. If the tension of the printing material is not appropriate, the result may be very bad. Paper wrinkling can cause text and images to be misaligned, while materials that are too tight may tear during high-speed printing. PFEA112-65 is capable of monitoring and adjusting the tension of printing substrates. By continuously measuring tension and making real-time adjustments, it enables the printing machine to produce clear, stain free, and consistent color density printed products. This not only reduces waste, but also improves the overall production efficiency of printing machines, whether it is large-scale commercial printing machines mass printing thousands of brochures or special printing machines producing complex packaging designs.
Packaging is another area where ABB PFEA112-65 demonstrates outstanding performance. When packaging products, the tension of materials such as plastic film, foil, or cardboard must be carefully calibrated. Insufficient tension can cause loose packaging and fail to protect the product during transportation; Excessive tension may cause the packaging material to stretch or break. For example, in food packaging, appropriate tension can ensure a tight seal and maintain the freshness and integrity of the product. In electronic product packaging, it can ensure that precision components are properly wrapped to prevent damage. PFEA112-65 enables packaging machinery to maintain ideal tension, optimize packaging processes, and improve the quality of final packaged products.
Textile manufacturing involves complex processes such as spinning, weaving, and knitting, highly dependent on precise tension control. During the spinning process, the tension of the yarn can affect its thickness and strength. Uneven tension can cause weak spots in the yarn, leading to defects in fabrics or knitwear. PFEA112-65 helps textile manufacturers maintain uniform tension throughout the entire production process. During the weaving process, it ensures that the warp and weft yarns are under the correct tension, thereby producing fabrics with consistent texture and appearance. In the knitting process, it can weave complex patterns, avoid yarn breakage or deformation, and produce high-quality textiles that meet strict standards in the fashion and home decoration industries.
Related product introduction:
ABB PFEA111- A more cost-effective choice within the same product line. Suitable for scenarios where tension measurement requirements are not as strict as PFEA112-65, it provides an economical and efficient solution for industrial applications with lower requirements.
ABB PFSK151 3BSE018876R1- A DSP signal processing module that can be paired with PFEA112-65 to enhance the overall performance of the tension control system. This module is highly valuable in complex applications that require advanced signal processing to filter out noise and accurately interpret tension data.
ABB CI854A – EA 3BSE030221R2- A simulation module that can be integrated with PFEA112-65 in industrial system controllers. It plays a crucial role in processing and processing analog signals related to tension control, expanding the functionality of the entire system and achieving more precise control.
ABB PP825 3BSE042240R1- A panel that provides operators with an interactive interface with PFEA112-65. It allows for easy monitoring and adjustment of tension control parameters, improving the user friendliness of the tension control system.
ABB TP857 3BSE030192R1- a substrate unit compatible with PFEA112-65. It provides a stable installation platform and electrical connection for tension control units in industrial settings, ensuring safe installation and reliable operation.
ABB PFTL301E 3BSE019050R1000- A 1.0 kN pressure guide block pillow type weighing sensor that can work in conjunction with PFEA112-65 to accurately measure tension. The two together form a reliable tension measurement and control subsystem.
ABB CB801 3BSE042245R1- A communication interface module that further enhances the communication capability of PFEA112-65 in industrial networks, enabling seamless data transmission and interaction with other devices.
Installation and maintenance recommendations:
Preparation before installation: Before installing ABB PFEA112-65 3BSE030369R0065, be sure to carefully prepare the installation environment. Firstly, ensure that the control cabinet has sufficient space to accommodate the unit. Consider heat dissipation requirements; Provide sufficient ventilation to prevent overheating, especially when operating in high temperature environments. The DIN rail installed should be securely fixed and free from any physical damage or corrosion.
During the installation process, it is essential to strictly follow the wiring diagram provided in the product manual for wiring. Wiring errors can lead to unit failures and, in severe cases, even damage other components in the system. When connecting units to sensors and actuators, use high-quality cables suitable for industrial environments and ensure their shielding to prevent electrical interference.
Maintenance suggestion: For maintenance, a regular inspection plan should be established. Conduct a visual inspection at least once a month to check for any signs of physical damage, such as cracks or loose connections. Check the accumulation of dust, as excessive dust can affect the performance of the unit. Conduct a more in-depth examination every six months, including signal diagnosis. Verify the accuracy of sensor input signals and the proper functioning of control output signals sent to actuators using software tools recommended by ABB.
