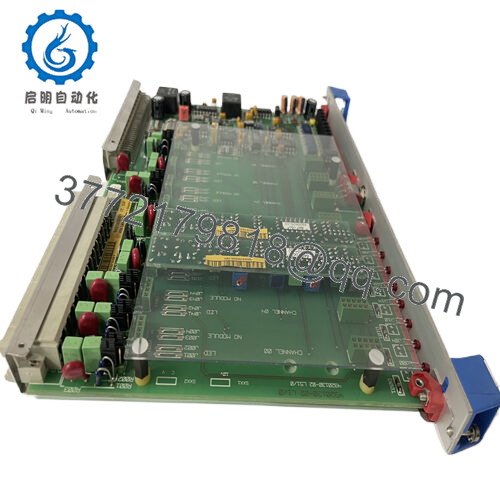

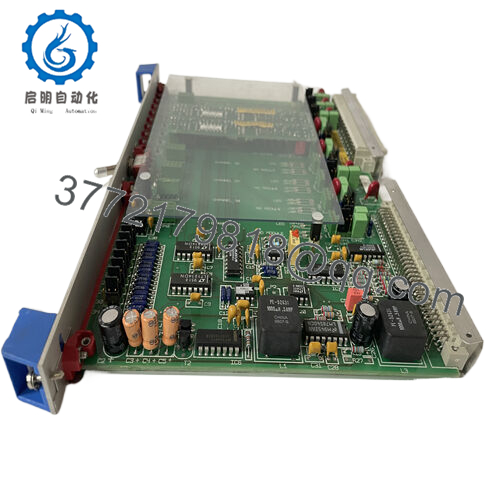

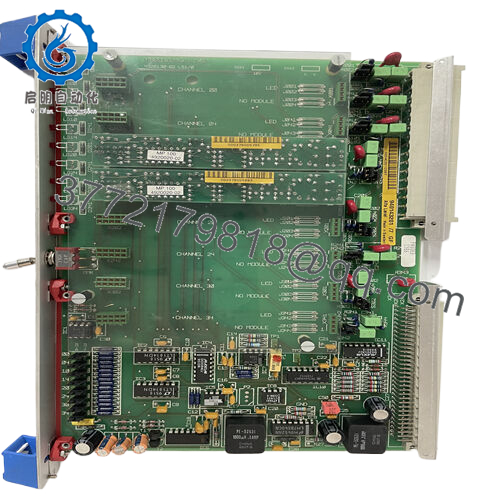

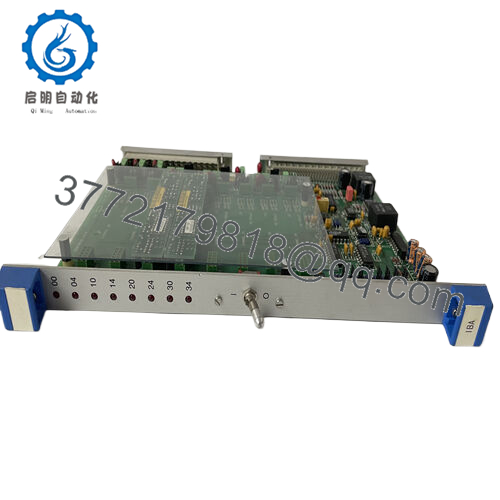

ABB IBA 940143201 is a high-performance data acquisition and signal processing system that serves as a core hub in the industrial automation ecosystem. It can interface with various sensors, transmitters, and other field devices to collect various types of data, including analog, digital, and frequency based signals.
IBA 940143201
The system has advanced signal conditioning functions, which can filter, amplify, and convert input signals to make them suitable for further processing. It seamlessly integrates with ABB’s control and monitoring platforms as well as third-party systems through industry standard communication protocols such as Ethernet, Profibus, and Modbus. This makes real-time data transmission and remote access possible, facilitating centralized control and monitoring. ABB IBA 940143201 also supports multi-channel data acquisition and can monitor multiple parameters simultaneously. Its modular design is easy to expand and customize, and can adapt to the scale and requirements of different projects. Whether it is a small monitoring setup or a part of a large industrial control network, ABB IBA 940143201 plays a critical role in ensuring accurate data acquisition and efficient signal processing.
IBA 940143201
Technical specifications:
Model IBA 940143201
Brand ABB
Type Data Acquisition and Signal Processing System
Up to 64 input channels
Working temperature range -20 ° C to 60 ° C
Installation method: Rack mounted installation
Dimensions 482.6 x 261 x 295 mm (19 inch rack mount, standard 3U height)
Weight approximately 8 kilograms
Interface/Bus Ethernet Profibus、Modbus、USB
Compliance with CE, UL, RoHS
Supported protocols include Ethernet TCP/IP, Profibus DP, Modbus RTU/TCP
Typical power consumption of 120 W
Contact Us
Phone:+86 16626708626
WeChat/WhatsApp:+86 16626708626
Email: 3772179818
IBA 940143201
Main features and advantages:
Its high channel capacity and flexible ability to handle various signal types eliminate the need for multiple dedicated data acquisition devices, reduce hardware costs, and simplify system design. The advanced signal conditioning function ensures accurate and reliable data acquisition, minimizing the risk of errors caused by signal distortion or interference. This in turn improves the accuracy of process control and monitoring, thereby enhancing product quality and operational efficiency. The seamless integration capability of this system with different platforms and protocols saves time and effort during system implementation and integration, accelerating the deployment speed of automation projects. Modular design not only facilitates expansion as system requirements grow, but also simplifies maintenance work as individual modules can be replaced or upgraded without affecting the entire system. ABB IBA 940143201is designed for durability and reliability, capable of withstanding the harsh conditions of industrial environments, ensuring long-term trouble free operation, and providing high return on investment.
IBA 940143201
Application areas:
In the field of power generation, it is used to monitor and analyze the performance of generators, turbines, and power grids. By collecting real-time data on parameters such as voltage, current, power factor, and temperature, operators can optimize power generation efficiency, detect potential faults early, and ensure grid stability.
In the automotive manufacturing industry, this system is used to monitor production lines, collect data on machine performance, productivity, and quality control indicators. This data-driven approach enables manufacturers to identify bottlenecks, improve production efficiency, and enhance product quality.
In the R&D laboratory, ABB IBA 940143201 is used for data collection in experiments, accurately capturing and analyzing data from various sensors to support scientific research and development. Its versatility and high performance make it an ideal choice for any application that requires accurate, high-speed data acquisition and efficient signal processing.
Related products:
ABB IBA 940143202: With stronger processing capabilities and additional input channels, it is suitable for data intensive applications.
ABB IBA 940143199: Equipped with basic data acquisition and processing capabilities, suitable for small projects or applications with lower requirements.
ABB IBA 940143203: The system integrates advanced data analysis functions, supporting real-time data analysis and decision support.
ABB IBA 940143200: Provides different communication interface options to provide more flexible system integration for specific network settings.
ABB IBA 940143204: Designed specifically for harsh industrial environments, it features enhanced durability to ensure reliable operation under extreme conditions.
ABB IBA 940143205: With a higher sampling rate, it is suitable for applications that require fast data acquisition, such as high-speed motion control or vibration analysis.
Installation and maintenance:
Before installing ABB IBA 940143201, it is essential to carefully plan the system layout and ensure that the rack installation location provides sufficient ventilation and space for proper heat dissipation. Verify the compatibility of communication interfaces with existing control and monitoring systems, and ensure that network infrastructure can meet the data transmission requirements of the system. Check the input voltage supply to ensure it matches the specifications of the device. When connecting sensors and other field devices, please strictly follow the wiring diagram and guidelines provided in the product manual to avoid data errors or equipment damage caused by wiring errors.
For continuous maintenance, please regularly check the status indicator lights of the system to monitor its health condition. Regularly clean the ventilation openings to prevent dust accumulation, as dust accumulation can affect the system’s heat dissipation and performance. It is recommended to regularly perform data backups to prevent system failures from causing data loss. Update system firmware according to ABB’s release plan to benefit from the latest features, performance improvements, and security patches.
