ABB CI534V02 3BSE010700R1 is carefully designed to easily interface with compatible devices in industrial networks. It has a single communication channel dedicated to Modbus protocol communication, which is widely used in industrial applications.
CI534V02 3BSE010700R1
This submodule can be easily integrated into existing control systems, whether they are part of ABB automation systems or more heterogeneous systems. It supports multiple data types such as integer, floating point and binary, which enables it to flexibly process various data from different sensors and actuators. This submodule communicates at a maximum speed of 115200 bps to ensure fast data transmission. It also provides configurable parameters such as baud rate, stop bit, and slave ID, allowing engineers to fine tune communication settings based on the specific requirements of the connected device. This flexibility enables it to adapt to various industrial scenarios.
CI534V02 3BSE010700R1
Technical specifications:
Model CI534V02 3BSE010700R1
Brand ABB
Type Modbus interface submodule
Input voltage range 10-30 VDC
Working temperature range -40 ° C to+70 ° C
Dimensions: Depth: 238.5 mm, Height: 27 mm, Width: 108 mm
Weight approximately 0.155 kg
Interface/Bus Modbus Communication Interface
Supports Modbus protocol
Contact Us
Phone:+86 16626708626
WeChat/WhatsApp:+86 16626708626
Email: 3772179818
CI534V02 3BSE010700R1
Main features and advantages:
This submodule is designed to be reliable, ensuring long-term stable communication even in harsh industrial environments with electromagnetic interference or extreme temperatures. Its ability to support multiple data types reduces the complexity of data processing in control systems, reduces the risk of data misunderstandings, and improves the overall accuracy of the system. Configurable parameters facilitate easy customization and reduce engineering costs, as engineers can quickly adapt submodules to different network settings without the need for extensive redesign. Its wide operating temperature range makes it suitable for deployment in different geographical locations and industrial environments, from refrigeration facilities to high-temperature manufacturing plants, ensuring the continuous operation and normal running time of critical systems.

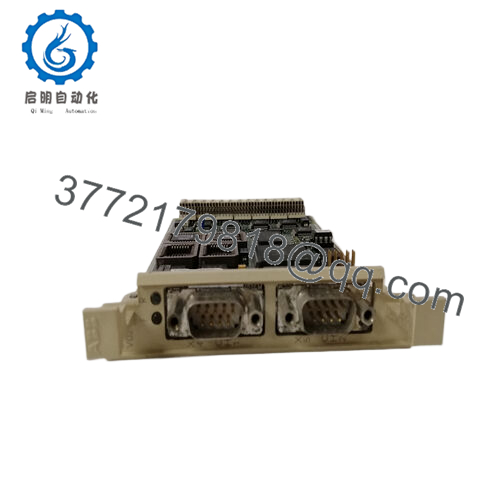

CI534V02 3BSE010700R1
Application areas:
In manufacturing, it is used to connect production line sensors and actuators to a central control system, enabling real-time monitoring of production processes such as conveyor belt speed and robotic arm movement.
In power plants, it plays a crucial role in transmitting data between various power related equipment such as generators, transformers, and monitoring sensors, ensuring efficient power production and distribution.
In building management systems, it helps integrate heating, ventilation, and air conditioning (HVAC) systems, lighting control, and safety sensors to achieve centralized control and energy optimization. Its reliable performance in these applications makes it the preferred choice for ensuring seamless operation in industrial and construction related process control environments.
Related products:
ABB CI534V01: Similar in functionality, but with different configuration options, suitable for users seeking more cost-effective solutions or already familiar with old models.
ABB CI552: Communication module supporting additional protocols, providing more flexibility for multi protocol industrial networks and suitable for complex settings using multiple communication standards.
