3500/42M 176449 – 02 High performance module

Description

The 3500/42M 176449-02 is a high-performance module from the well-known Bentley 3500 series, designed specifically to meet the stringent requirements of industrial monitoring. It is a four channel proximity and earthquake monitoring module that plays a key role in ensuring the integrity of industrial machinery.

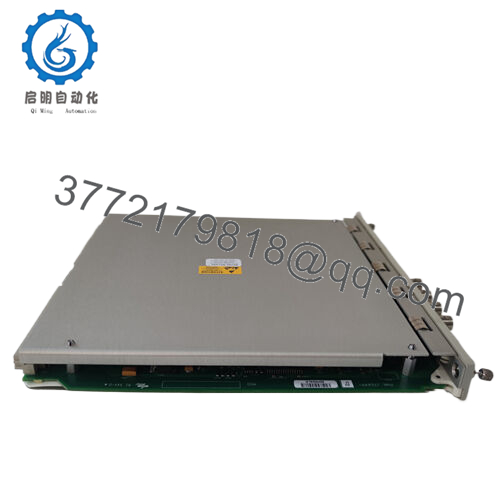

3500/42M 176449 – 02

This module is designed to seamlessly connect with various sensors, including proximity sensors and seismic sensors. By receiving input signals from these sensors, it can accurately measure vibration and position parameters, providing valuable data for evaluating the health status of the equipment.

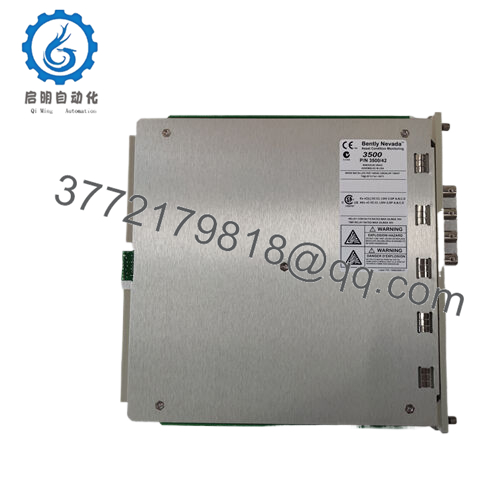

3500/42M 176449 – 02

Main features and advantages:
One of the key features of 3500/42M 176449-02 is the ability to compare the input adjustment signal with the user configured alarm setpoint. When the measured value exceeds the preset threshold, it will immediately trigger an alarm to ensure that the operator can receive timely notification. This proactive approach helps to detect potential issues early on, enabling preventive maintenance and reducing the risk of unexpected failures. In addition, the processed data will be efficiently output to the 3500 series system for further analysis and decision-making.

The measurement resolution of this module is as high as 0.0001 inches (0.0025 millimeters), ensuring highly accurate monitoring. It has specific input ranges for different types of sensors. For proximity sensors, the input range is 0.02 to 0.2 inches (0.5 to 5.0 millimeters); For seismic sensors, the input range is 0.005 to 0.2 inches peak to peak (0.127 to 5.08 millimeters peak to peak). In terms of output, it provides an analog output range of 4 to 20 mA, which is widely used in industrial control systems for transmitting process variables. It is also equipped with a C-type relay for digital output, which can be used for switch operations such as activating alarms or controlling auxiliary equipment.

Its high-precision monitoring capability enables operators to detect even the slightest abnormalities in device behavior. This early detection helps to intervene in a timely manner and reduce the possibility of small problems evolving into major malfunctions. By preventing unexpected shutdowns, businesses can save a significant amount of costs related to production losses and emergency repairs. The compatibility of this module with 3500 series systems simplifies the integration process and reduces the engineering workload during system setup or expansion. Its sturdy structure ensures reliable operation even in harsh industrial environments, capable of withstanding factors such as vibration, temperature fluctuations, and electromagnetic interference.

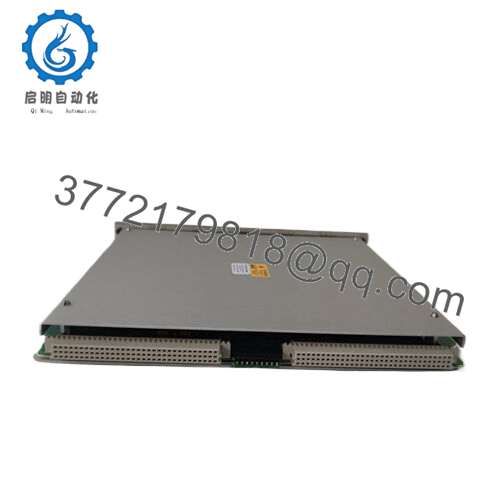

3500/42M 176449 – 02

Technical specifications:
Model 3500/42M 176449-02
Brand Bentley Nevada
Type four channel proximity and earthquake monitoring module
Input signal type: proximity sensor signal, seismic sensor signal
Input range proximity sensor: 0.02-0.2 inches (0.5-5.0 millimeters); Seismic sensor: 0.005-0.2 inches peak to peak (0.127-5.08 millimeters peak to peak)
Measurement resolution 0.0001 inches (0.0025 millimeters)
Analog output range 4-20 mA
Digital output C-type relay
Working voltage 24 VDC
Power consumption 7.7 watts (typical value)
Series 3500/42M
Size 9.50 inches x 0.96 inches x 9.52 inches
Installation method: Rack installation (compatible with 3500 series racks)
The interface/bus is compatible with the relevant buses in the 3500 series system
Compliance with relevant industrial standards
Support data transmission protocols within the 3500 series system

Contact Us
Phone:+86 16626708626
WeChat/WhatsApp:+86 16626708626
Email: 3772179818@qq.com

3500/42M 176449 – 02

Application areas:
In the field of power generation, it is widely used to monitor the health status of turbines and generators. By accurately measuring vibration and position parameters, it helps predict potential faults and ensure the continuous and stable generation of electricity.
In the petrochemical industry, reliable operation of pumps, compressors, and other rotating equipment is crucial, and this module plays an important role in ensuring smooth and safe operation.
In manufacturing plants, especially those that use high-speed rotating machinery, the3500/42M 176449-02 enables operators to closely monitor equipment conditions, optimize production efficiency and product quality.

Related products:
Bentley 3500/40M: A more basic monitoring module suitable for applications with relatively less complex monitoring requirements. Compared to 3500/42M 176449-02, it may have fewer features or a lower level of functionality.
Bentley 3500/44M: an enhanced module with more channels or advanced signal processing capabilities. This model is very suitable for applications that require more comprehensive monitoring of sensors or deeper analysis of equipment conditions.

Installation and maintenance:
Before installing Bentley 3500/42M 176449-02, a comprehensive compatibility check must be conducted. Ensure that the sensor type connected to the module is appropriate and the signal characteristics meet the input requirements of the module. Verify if there is sufficient installation space in the 3500 series rack and check power compatibility to ensure stable operation.
For continuous maintenance, it is necessary to regularly check the module for any signs of physical damage, especially in harsh environments. Check the connection between the sensor and the 3500 series system to ensure it is secure. It may be necessary to perform regular calibration of the module once a year or every six months based on the criticality of the application to maintain its high-precision measurement capability.
